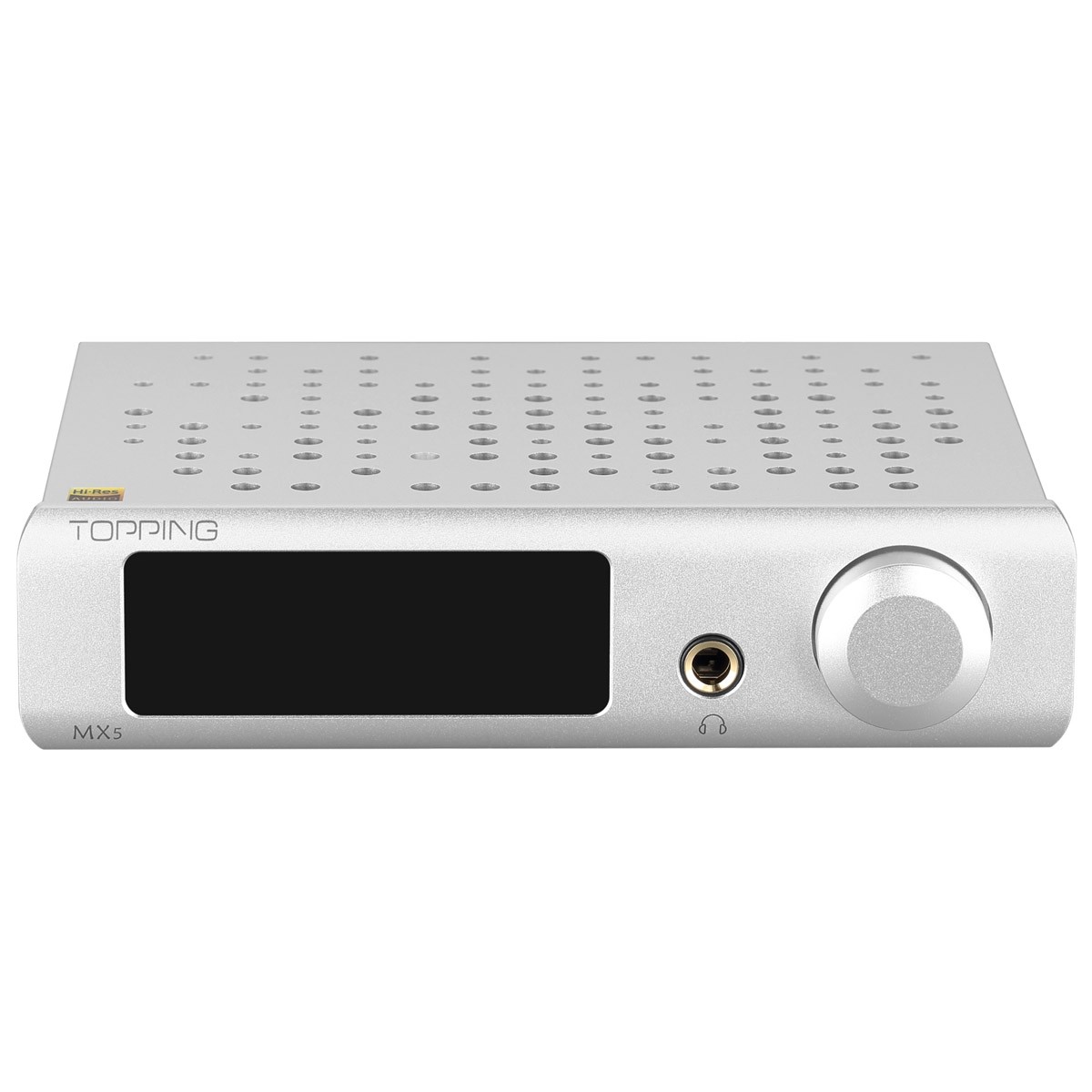

TOPPING MX5 Amplifier Merus Class D NFCA XMOS Bluetooth aptX HD 2x55W 4Ω 32bit 384kHz DSD256 Silver

The Topping MX5 is a combo amplifier and headphone amplifier with integrated DAC ESS ES9018. Particularly versatile and powerful, it benefits from a Bluetooth reception thanks to a QCC3031 chip, an efficient USB XMOS XU208 interface and a complete connectivity.

Average votes for this product
4.5 / 5
  Based on 2 customers reviews.

By buying this product you get 25 loyalty points


Reference : 15900
New product

259,00 €tax incl.

215,83 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 24-12-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Add to wishlist
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Topping MX5

Amplifier Merus MA12070 Class D NFCA XMOS Bluetooth aptX HD 2x55W 4Ω 32bit 384kHz DSD256

Topping MX5 Amplificateur Merus Class D NFCA XMOS Bluetooth aptX HD 2x55W 4Ω 32bit 384kHz DSD256

The Topping MX5 is a combo amplifier and headphone amplifier with integrated DAC ESS ES9018. Particularly versatile and powerful, it benefits from a Bluetooth reception thanks to a QCC3031 chip, an efficient USB XMOS XU208 interface and a complete connectivity.

Topping MX5 Amplificateur Merus Class D NFCA XMOS Bluetooth aptX HD 2x55W 4Ω 32bit 384kHz DSD256

MX5

MX3

USB Chip

8 Core XMOS

SA9023A

Supported sampling rates  (USB input)

PCM 32bit 384kHz / DSD256

PCM 24bit 96kHz

Bluetooth codecs

aptX / aptX LL / aptX-HD

aptX not supported

Headphone amplifier power @ 32 Ohm

1600mW

257mW

Headphone amplifier power @ 300 Ohm

260mW

42mW

SNR (headphone amplifier)

128dB

103dB

Amplifier power @ 4 Ohm THD+N < 10%

70W

40W

SNR (amplifier)

110dB

91dB

THD+N @ 8 Ohm 20W

< 0.002%

< 0.05%

Topping MX5 Amplificateur Merus Class D NFCA XMOS Bluetooth aptX HD 2x55W 4Ω 32bit 384kHz DSD256

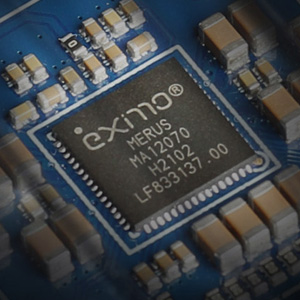

Merus MA12070 Class D amplifier

Embedding an Infineon Merus MA12070 Class D amplifier chip, the MX5 is capable of delivering a power of 2x55W under 4Ω (1% THD). Moreover, it offers a beautiful precision and richness of sound.

NFCA headphone amplifier

The MX5's headphone amplifier stage is based on a specially optimized NFCA circuit that ensures very low noise and distortion. It can be used with both sensitive headphones and high-impedance headphones, while providing a faithful reproduction of the original signal.

Topping MX5 Amplificateur Merus Class D NFCA XMOS Bluetooth aptX HD 2x55W 4Ω 32bit 384kHz DSD256

Full connectivity & Auto On/Off

Topping's MX5 benefits from a complete range of connectors, ensuring a wide compatibility with most systems. It features optical, coaxial, USB-B, single-ended stereo RCA, balanced stereo Jack 6.35mm TRS and even Bluetooth wireless connectivity supporting aptX / aptX-HD codecs.

In addition, the amplifier supports the automatic on/off function. When a valid signal is detected, the amplifier automatically turns on, and conversely, turns itself off when no signal is received within a defined time period. In the case of analog signals, the MX5 offers three sensitivity levels to ensure accurate detection.

Topping MX5 Amplificateur Merus Class D NFCA XMOS Bluetooth aptX HD 2x55W 4Ω 32bit 384kHz DSD256
Topping MX5 Amplificateur Merus Class D NFCA XMOS Bluetooth aptX HD 2x55W 4Ω 32bit 384kHz DSD256

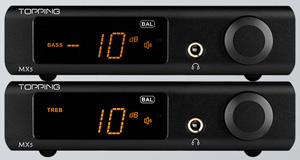

Tone and gain control

The MX5 allows you to adjust the bass and treble levels from -10dB to +10dB. It can thus adapt to the specificities of each audio system and to your listening.

The Topping MX5 also features two gain levels for the amplifier and headphone amplifier sections to accommodate different input signals.

Technical characteristics

Specifications
Product typeAmplifier
Headphone amplifier
Amplification typeClass D
Puce d'amplificationInfineon Merus MA12070
InputsBluetooth
1x USB-B
1x Optical
1x Coaxial
1x Single-ended stereo RCA
1x Balanced stereo Jack 6.35mm TRS
OutputsSpeaker terminals
1x Jack 6.35mm headphone output
USB interfaceXMOS XU208Headphone amplifier specifications
USB / Optical / CoaxialSingle-endedBalanced
THD+N @ 1kHz (A-Weighting)< 0.003% @ 750mW 32Ω< 0.003% @ 750mW 32Ω< 0.003% @ 750mW 32Ω
< 0.0008% @ 80mW 300Ω< 0.002% @ 80mW 300Ω< 0.002% @ 80mW 300Ω
SNR @ Max out, 1kHz, A-Weighting120dB128dB127dB
Dynamic range @ 1kHz, A-Weighting120dB128dB127dB
Frequency response20Hz-20kHz (+0.1dB/-0.3dB)
20Hz-40kHz (+0.1dB/-1.0dB)
Output level5.6Vpp @ G=L10.6Vpp @ G=L10.6Vpp @ G=L
24.6Vpp @ G=H24.6Vpp @ G=H24.6Vpp @ G=H
Noise @ A-Weighting< 2µVrms @ G=L< 2µVrms @ G=L< 2µVrms @ G=L
< 10µVrms @ G=H< 10µVrms @ G=H< 10µVrms @ G=H
Channel crosstalk @ 1kHz-93dB-93dB-93dB
Input sensitivity0dBFS @ G=L3.9Vrms @ G=L7.8Vrms @ G=L
-1dBFs @ G=H1.8Vrms @ G=H3.6Vrms @ G=H
Gain6dB(Vrms/FS) @ G=L-0.2dB @ G=L-6.1dB @ G=L
19dB (Vrms/FS) @ G=H13.6dB @ G=H7.6dB @ G=H
Output impedance< 0.2Ω
Power2x 1600mW @ 32Ω, THD+N < 0.1%
2x 1000mW @ 64Ω, THD+N < 0.1%
2x 260mW @ 300Ω, THD+N < 0.1%
Load impedance> 8Ω
Amplifier specifications
USB / Optical / CoaxialSingle-endedBalanced
THD+N @ 1kHz (A-Weighting)< 0.005% @ 5W 4Ω< 0.005% @ 5mW 4Ω< 0.005% @ 5mW 4Ω
< 0.004% @ 5W 8Ω< 0.004% @ 5W 8Ω< 0.004% @ 5W 8Ω
SNR @ Max out, 1kHz, A-Weighting110dB110dB110dB
Dynamic range @ 1kHz, A-Weighting110dB110dB110dB
Frequency response20Hz-20kHz (+0.1dB/-0.5dB)
20Hz-40kHz (+0.1dB/-1.5dB)
Output noise42Vpp @ RL=4Ω42Vpp @ RL=4Ω42Vpp @ RL=4Ω
46Vpp @ RL=8Ω46Vpp @ RL=8Ω46Vpp @ RL=8Ω
Noise @ A-Weighting< 60µVrms @ G=L< 60µVrms @ G=L< 60µVrms @ G=L
< 90µVrms @ G=H< 90µVrms @ G=H< 90µVrms @ G=H
Channel crosstalk @ 1kHz-93dB-90dB-91dB
Input sensitivity-1.5dBFS @ G=L1.7Vrms @ G=L3.5Vrms @ G=L
-7dBFs @ G=H0.9Vrms @ G=H1.8Vrms @ G=H
Gain25.2(Vrms/FS) @ G=L19dB @ G=L13dB @ G=L
30.7dB (Vrms/FS) @ G=H24.5dB @ G=H18.5dB @ G=H
Output impedance< 0.2Ω
Power2x 70W @ 4Ω, THD+N < 10%
2x 55W @ 4Ω, THD+N < 1%
2x 42W @ 8Ω, THD+N < 10%
2x 35W @ 8Ω, THD+N < 1%
Load impedance4-8Ω
General
Dimensions174 x 144 x 45mm
ColorSilver
Package1x Topping MX5
1x Power adapter + power cable
1x USB cable
1x Jack 6.35mm to Jack 3.5mm adapter
1x Remote control
1x Bluetooth antenna
Topping MX5 Amplificateur Merus Class D NFCA XMOS Bluetooth aptX HD 2x55W 4Ω 32bit 384kHz DSD256 Topping MX5 Amplificateur Merus Class D NFCA XMOS Bluetooth aptX HD 2x55W 4Ω 32bit 384kHz DSD256 Topping MX5 Amplificateur Merus Class D NFCA XMOS Bluetooth aptX HD 2x55W 4Ω 32bit 384kHz DSD256

Data sheet
InputRCA
InputSPDIF
InputBluetooth
InputUSB
InputJack 6.35mm
InputOptical
OutputJack 6.35mm
OutputSpeaker terminal
ColorSilver
Channel2 (Stereo)
ClassClass D / T
Amplifier chipInfineon MA12070
Power (W)55.0
Remote ControlYes
