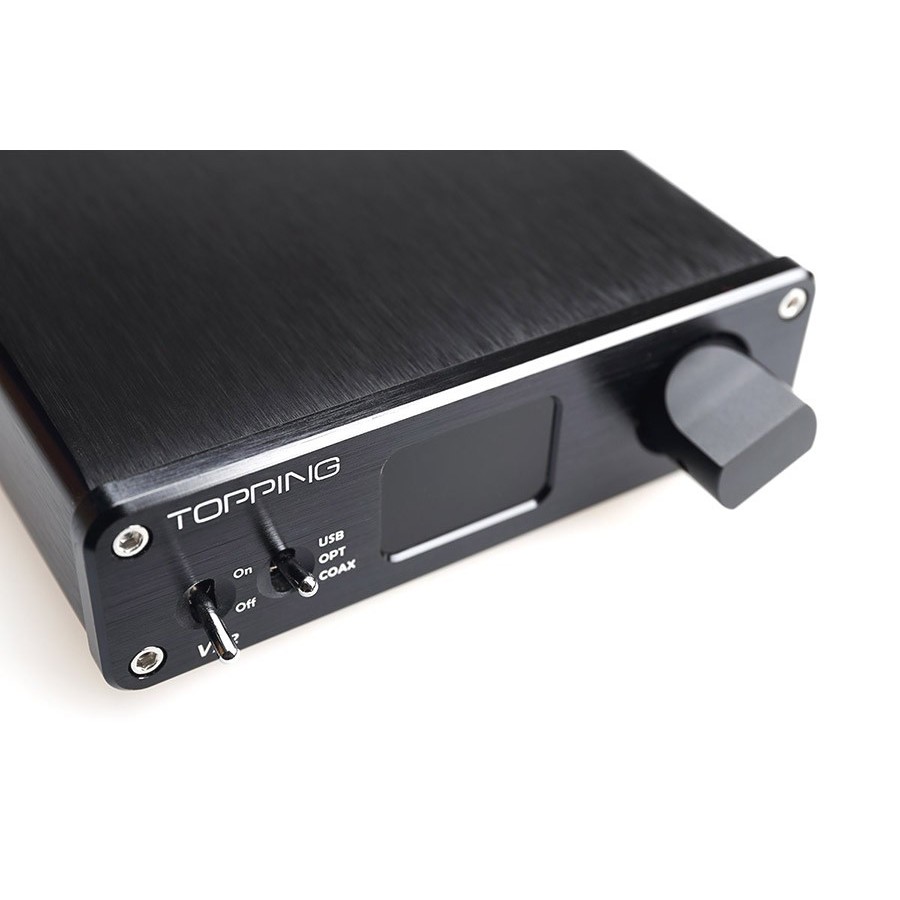

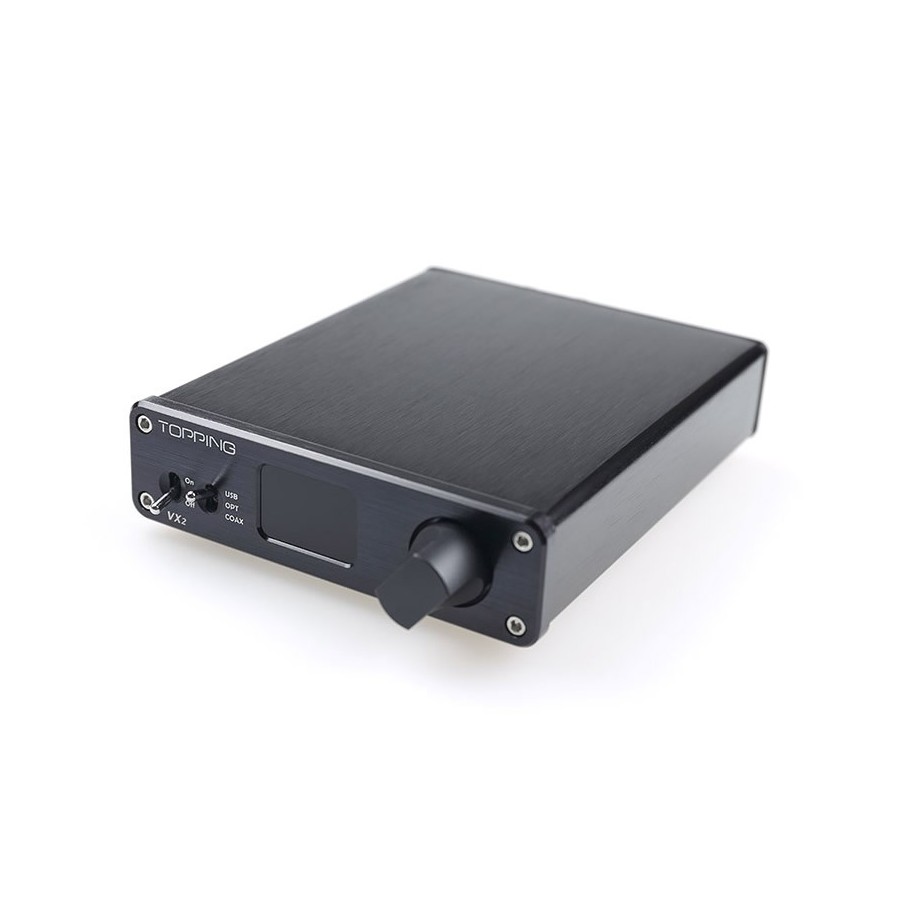

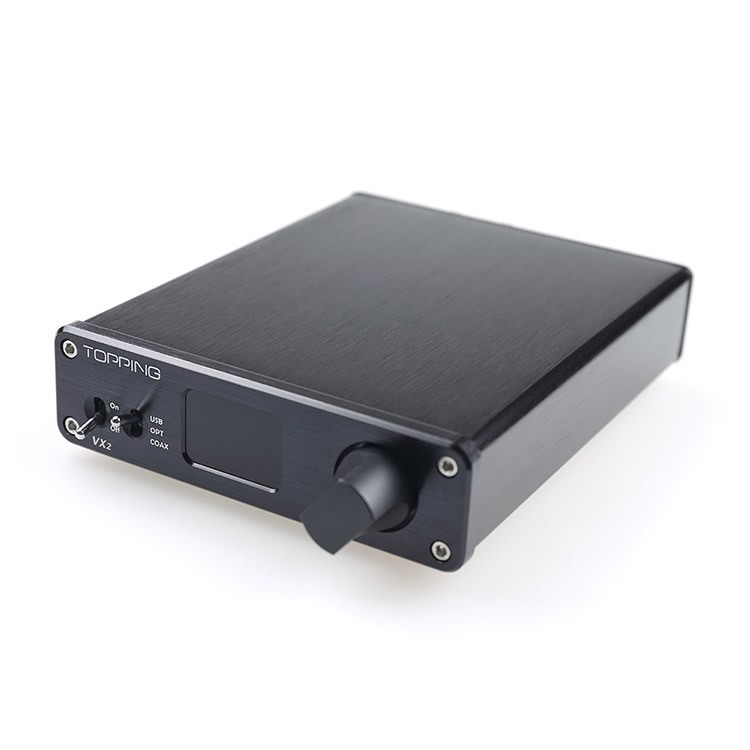

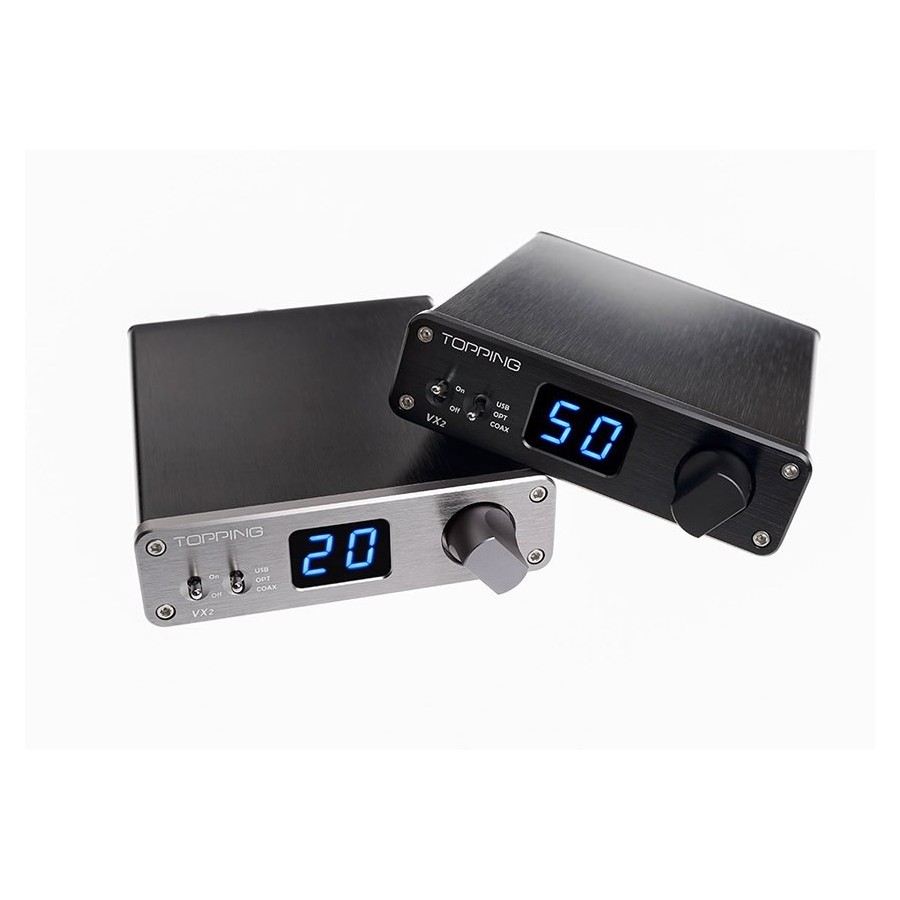

TOPPING VX2 Full Digital Amplifier STA326 Class D 2x 35W 8 Ohm

A complete STA326 Class D amplifier, the TOPPING VX2 integrates a 24bit 192kHz analog digital converter and a VIA VT1630A Audio / DSP interface.

It therefore does not require an upstream CAD.

This amplifier has the characteristic of being a "Full Digital", ie the S / PDIF signal is converted into I2S and then directly amplified by the STA326.

It has three digital inputs (USB, S / PDIF coaxial RCA and Toslink optics).

It will prove to be the ideal companion for any digital source.
Its ergonomics and its compactness are notable advantages and added to its versatility.

Features:/ Strong>

• Audio Controller / DSP VIA VT 1630A
• Supported Sampling Rates: 24bit 96kHz (USB), 24bit 192kHz (S / PDIF)

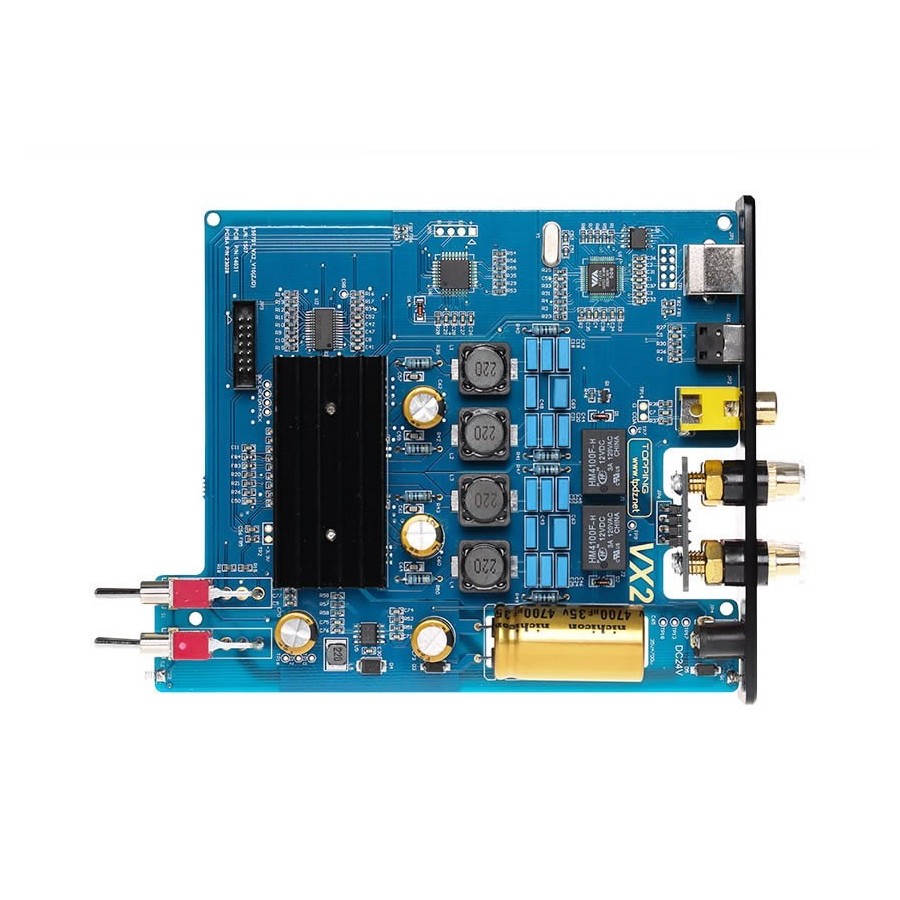

• Amplifier module STA326: 2x 40W under 4 Ohm, 2x 35W under 8 Ohm
• Nichicon and EPCOS Filter Capacitors
• High-precision clock
• Frequency response: 18Hz - 20kHz to +/- 1.7dB
• THD + N: 0.076% at 1kHz
• ALPS rotary encoder

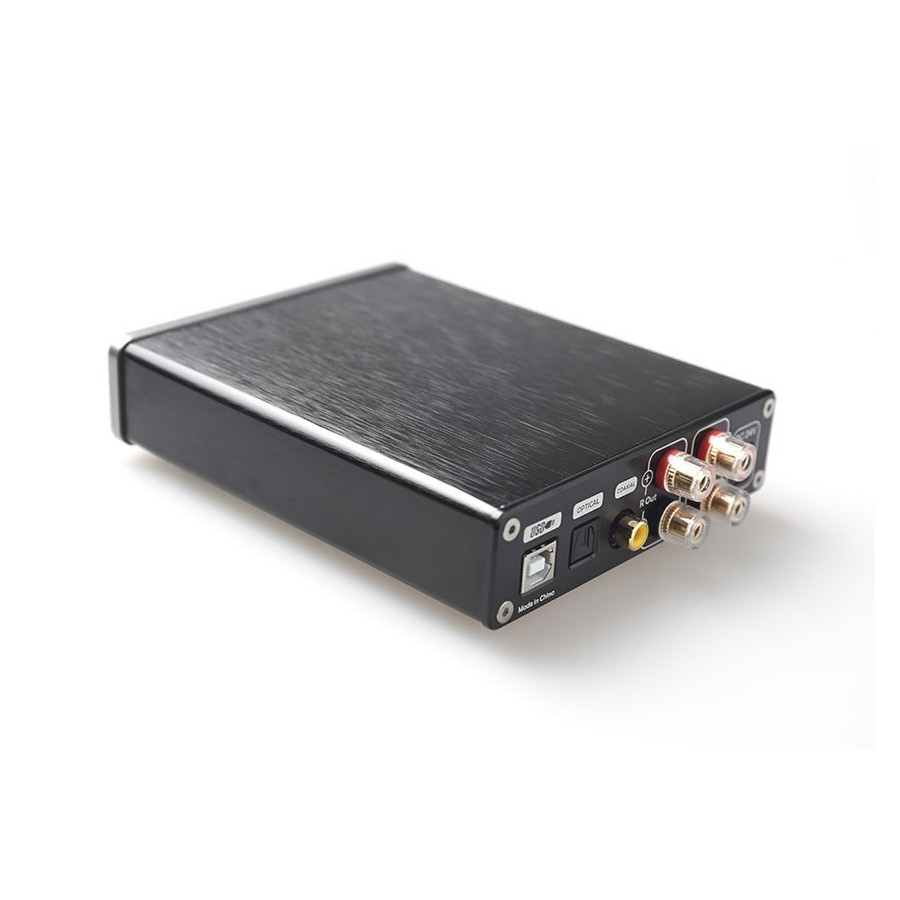

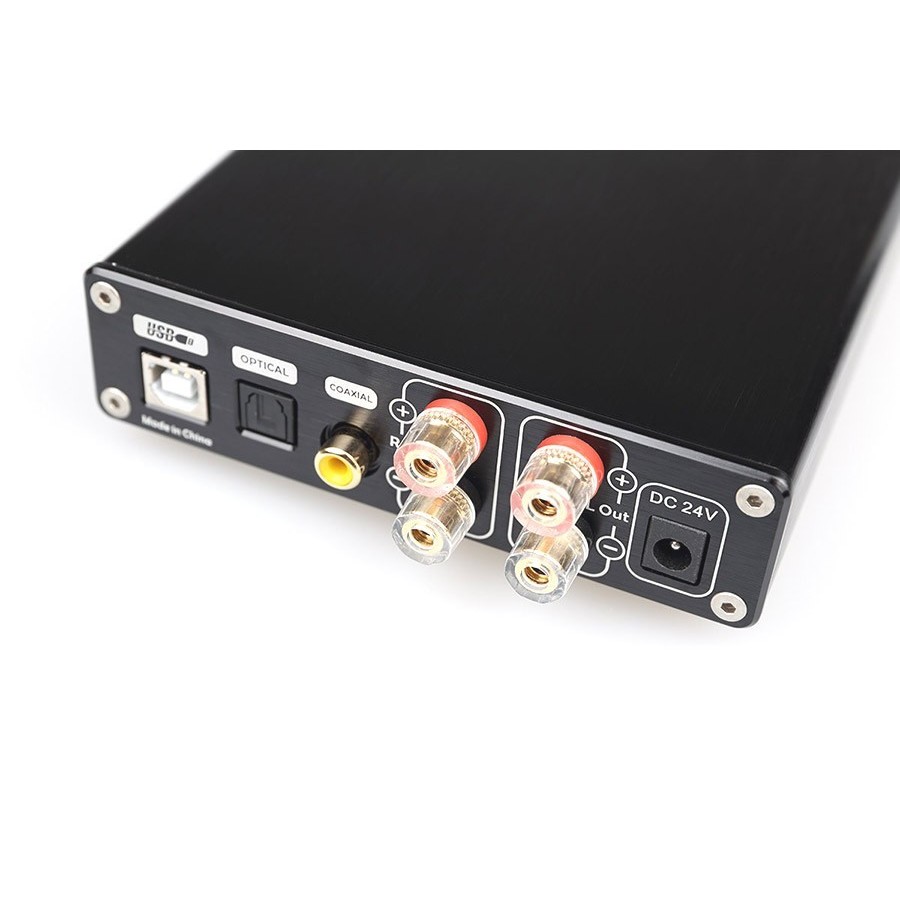

• Inputs: S / PDIF Optical Toslink, Coaxial and USB-B 2.0
• Outputs HP: On screwed terminal blocks supporting the banana plugs 4mm
• Power supply 24V 3A included
• Chassis Brushed Aluminum Anodized Black
• Dimensions: 178x122x38mm
• Weight: 530 g

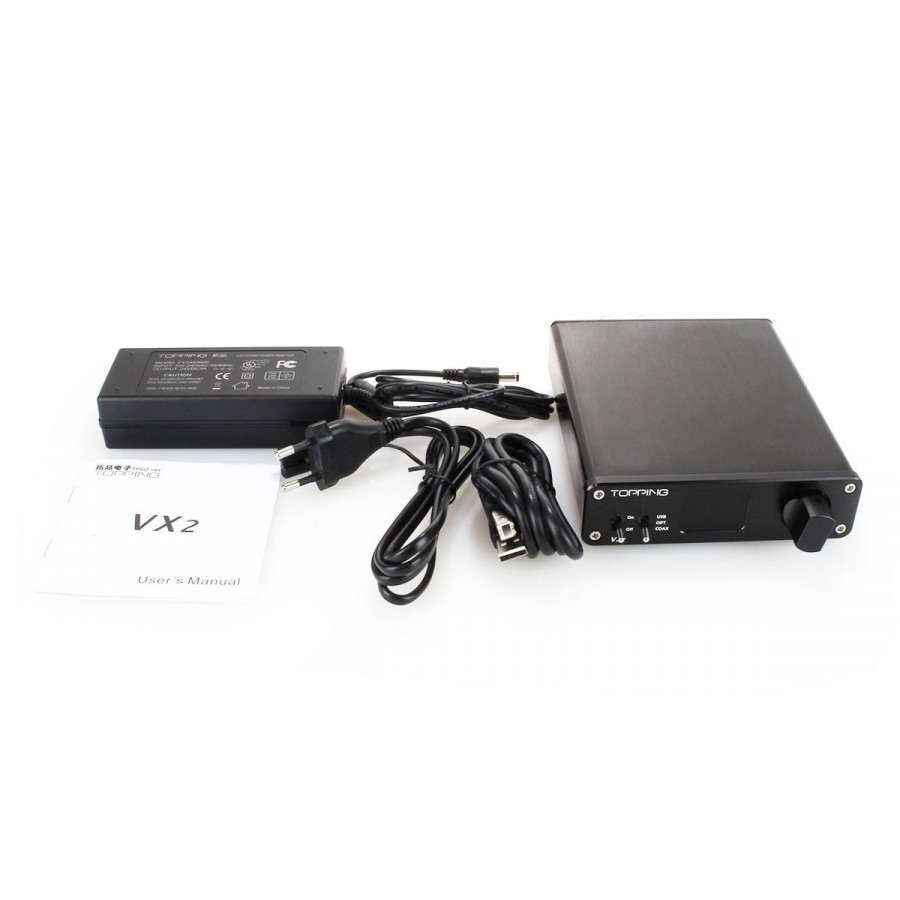

• USB-A to USB-B cable, User's Manual and Supplied power supply
