LHY Audio Receiver LVDS HDMI to I2S Interface Module
This LHY Audio Receiver interface module converts an HDMI LVDS signal into an I2S signal. It accepts PCM and DSD signals, enabling users to enjoy high-resolution files. The LHY Audio Receiver benefits from quality components such as an LDO regulator and a DS90LV048A quad CMOS differential line receiver chip. The module requires 5V DC for its power supply, and can be powered via the corresponding solder pads or via its HDMI connector.
Overview of the LHY Audio Receiver module
| 1 | HDMI LVDS input |
| 2 | DS90LV028A processing chip |
| 3 | Power supply soldering pad |

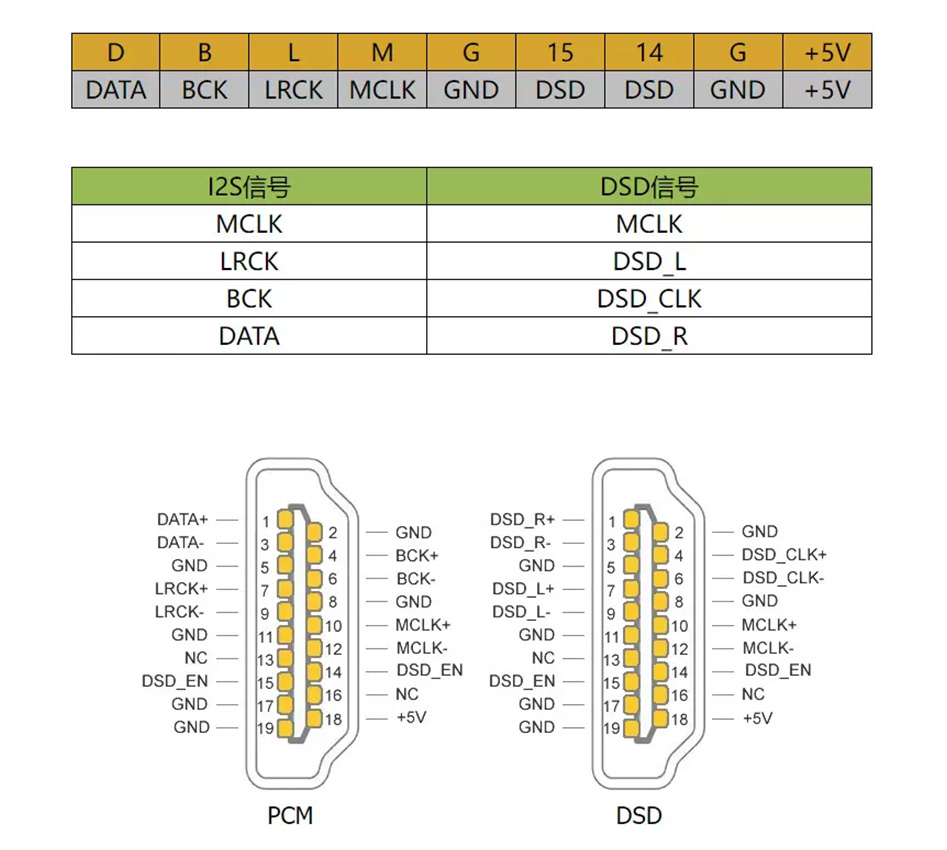

| 4 | I2S output |
Technical characteristics
| Specifications | |
|---|---|
| Product type | I2S LVDS to I2S HDMI signal converter module |
| Input | HDMI I2S LVDS |
| Output | I2S via 7 soldering pads |
| General | |
|---|---|
| Power supply voltage | 5V DC |
| Dimensions | 42 x 42 x 10mm |
| Package | 1x LHY Audio Receiver interface module 4x Spacers 4x Mounting screws 2x Mounting parts |
