SUPTRONICS X10-I2S USB XMOS Interface to I2S / Opical / Coaxial SPDIF 32bit 384kHz DSD

This X10-I2S module will allow you to enjoy a USB interface to I2S, Coaxial and Optics in a very simple way. So you can upgrade your DIY audio system based, for example, on a Raspberry Pi and offer it new possibilities.

No customer reviews yet, login to write a review.

By buying this product you get 5 loyalty points


Reference : 12834
New product

59,90 €tax incl.

49,92 € tax excl.
Including 0,01 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

SUPTRONICS I2S-X10 V2

BRAVO SA9227 Interface to I2S / Coaxial SPDIF / Optical 32bit 384kHz DSD





The X10-I2S module allows it user to enjoy a USB interface to I2S, Coaxial and Optical in a very simple way. It is very useful when it comes to upgrade any DIY audio system based for example on a Raspberry Pi to provide new possibilities.

List of modules of the X10 and X20 series sold separately:

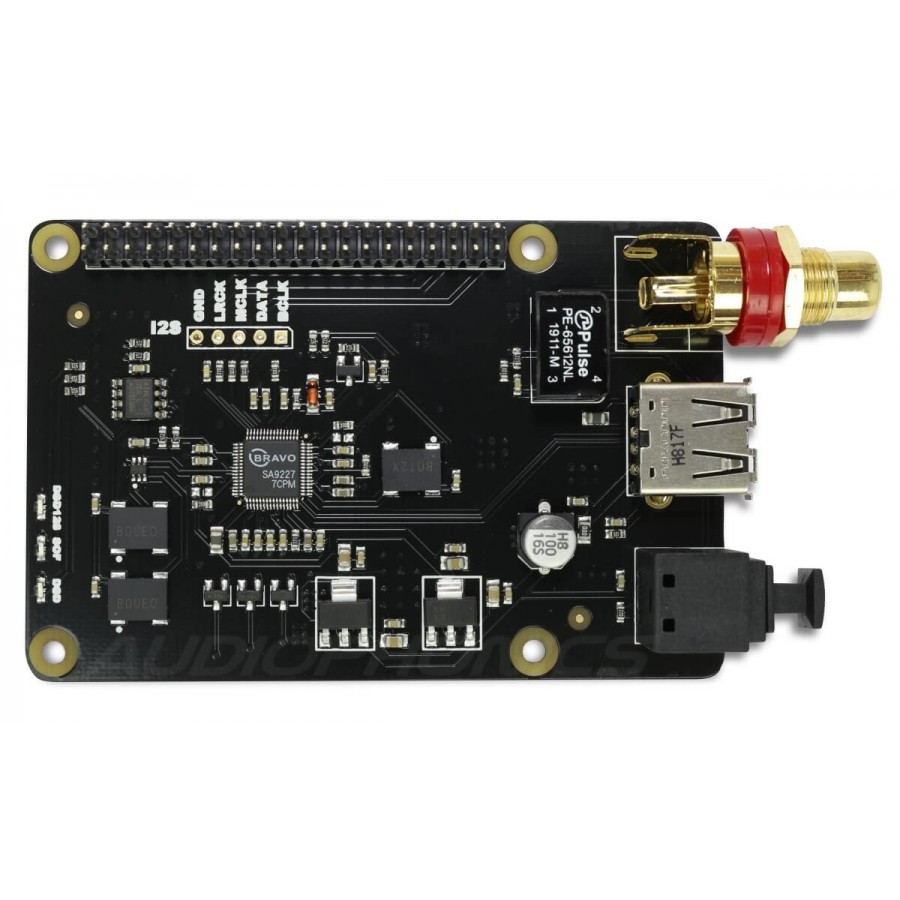

USB chip SA9227


This USB interface is based on a chip BRAVO Audio SA9227. This component has excellent audio capabilities and can handle seamlessly digital audio streams up to 384kHz 16/24/32 bit (PCM). The 1-bit formats are not left behind with a DSD64 / DSD 128 support.


A fully autonomous interface



The SA9227 interface is first designed to be used directly with a SBC Raspberry Pi.

It can also operate in standalone mode, a solution that allows changing the DAC Module quickly and effortlessly for benchmarking hardware or to favor a specific speaker / amp technology when listenning.
This solution is therefore as good as practical and economical.


Connectors

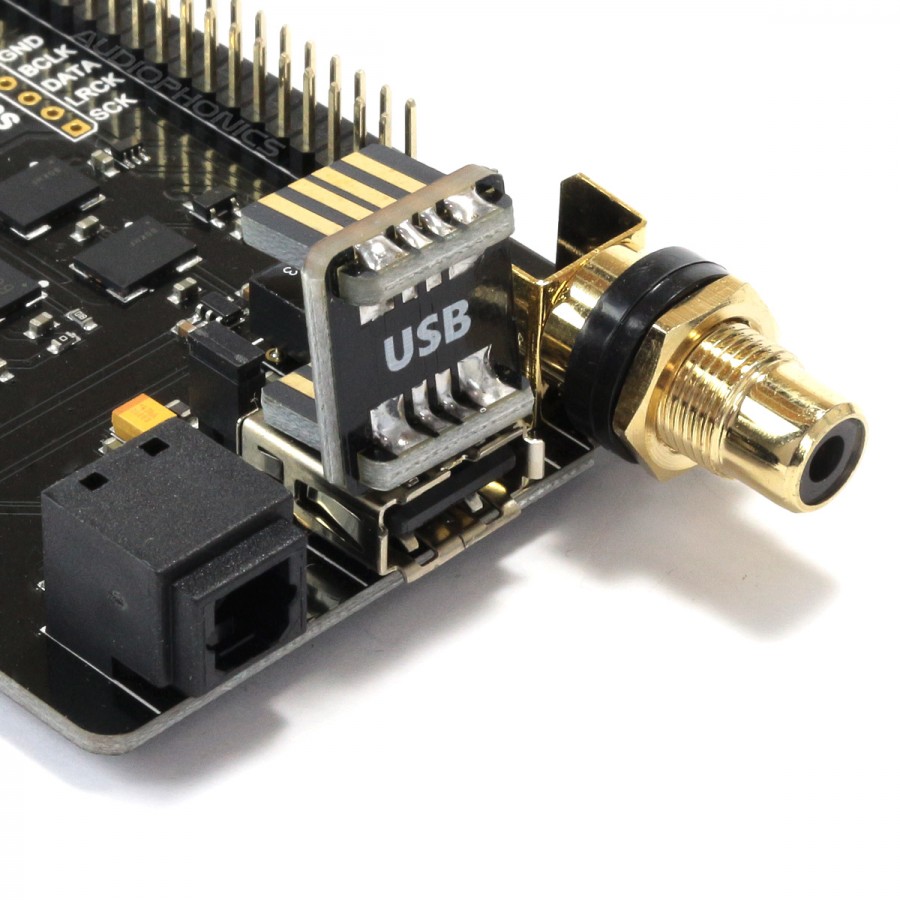

This interface offers your system a more complete connectivity. Thus, as input we will find a USB-A 2.0 port supported by an SA9297 chip. The interface also comes with a small USB loopback extension, making it easy to connect this X10-I2S to another module.

Caution : the port layout on a Raspberry Pi 4 does not fit with this extension. Use a USB-A to USB-A male cable instead.

On the output side, the module offers SPDIF (Coaxial), Toslink Optics and I2S for optimal sound quality.

Components


The interface also incorporates an ultra-low phase jitter SiTime SiT8208 SiTime oscillator, a Pulse PE-6561NL digital signal transformer with a design to limit EMI noise and interference, and an ultra-low noise voltage regulator from Texas Instruments for optimal operation.

Specifications
USB interfaceXMOS
Sampling rates supportedUSB : PCM up to 32bit 384kHz / up to DSD128 Native
SPDIF : PCM up to 24bit 192kHz
Supported OSVolumio, Moode Audio PLayer, Windows, Android...
OscillatorSiTime SiT8208
Digital signal transformerPulse PE-6561NL
Voltage RegulatorTexas Instruments Ultra-Low Noise Voltage Regulator
DSDNative, DoP64, DoP128
Power supply5V DC ±5%
Dimensions85 x 56 x 15mm
Fixation holes distances58 x 49mm
AccessoriesUSB extension board
Screws and spacers

The announced sampling rates are only valid on the I2S output. They are therefore not valid for use with an X10-DAC / X20-DAC. With the latter, the sampling rates in PCM go up to 24bit 192kHz.


Use X10-I2S interface with Volumio

The X10-I2S interface is compatible with Volumio. To be able to use these two solutions together, a simple manipulation is necessary.

  • In the Volumio interface, go to the Playback Options menu.
  • Disable I2S DAC option.
  • In the Output Device field, select xCORE-AUDIO Hi-Res 2.
  • Reboot Volumio.
Interface X10-I2S avec Volumio

Data sheet
InputUSB
OutputOptical Toslink
OutputI2S
OutputCoaxial SPDIF
