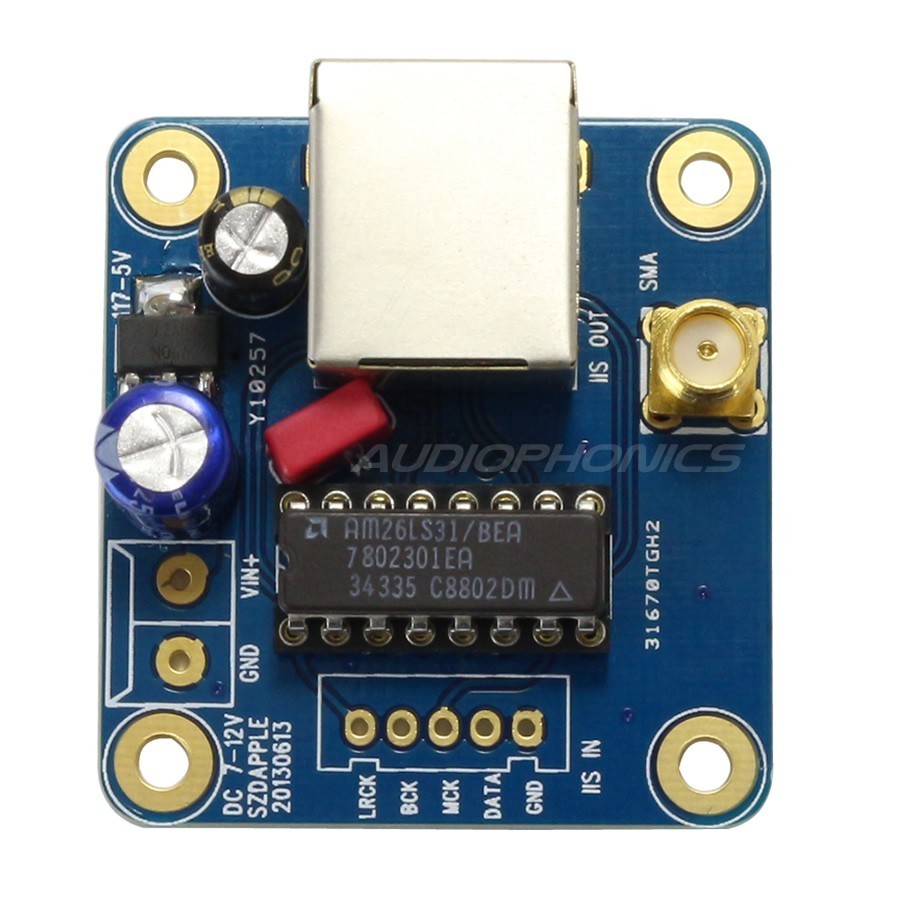

Unbalanced I2S to Balanced RJ45 Ouput Module Board

This input module allows you to integrate a Symmetric I2S output to RJ45 to the audio device of your choice. Ideal for any type of project and DIY assembly.

The main interest of a symmetrical signal makes it possible to lower the noise over long lengths to carry an audio I2S signal. It works in concert with the input module 11386 RJ45 I2S Symmetric to ASymmetric .

It is thus possible to use an RJ45 type cable of a length of 1 m and more in place of the usual 20 cm of the I2S signal.

A documentation of the AM26L31 chips can be downloaded from the Attachments tab.

Attention: For RJ45 I2S connections the connections must be as short as possible.

Features:/ Strong>

• Output Module: I2S Symmetric to RJ45
• Chips: AM26LS31
• ELNA electrolytic capacitor
• Connector SMA (Female)
• Dimensions: 43,6 x 41mm
• Mounting brackets: 33 x 30mm
• Weight: 20g
• Voltage Rating: 7-12V DC

Cable schematics :
