Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.

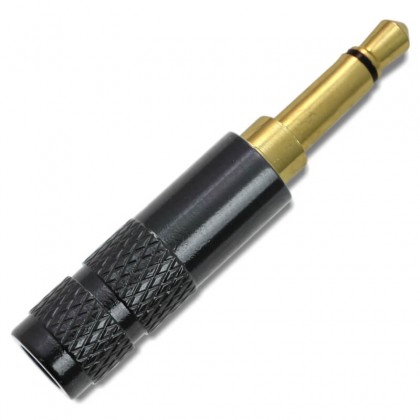

Connector solder - gold plated
Jack mount connector for your projects and custom cables. Diameter 3.5mm connector, two poles (mono channel).
The lower connector base unscrews to access the editing system. This requires soldering the cable conductors directly on the jack connectors.
The poles are gold plated for excellent conductivity and to preserve the audio signal in advanced audio use.
| Specifications | |
|---|---|
| Type | Jack connector |
| Jack | Mono 3.5mm 2 poles |
| Maximum cable diameter | Ø4mm |
| External body diameter | Ø7mm |
| Plating | Gold |
| Dimensions | 40mm Ø7mm |
| Color | Black |
| Max cable diameter (mm) | 4.0 |
| Mounting type | To weld |
| Connectic | Male |
| Contacts number | 2 |
| Contacts Material (Connector) | Copper Alloy |
| Contacts Plating (Connector) | Gold |
