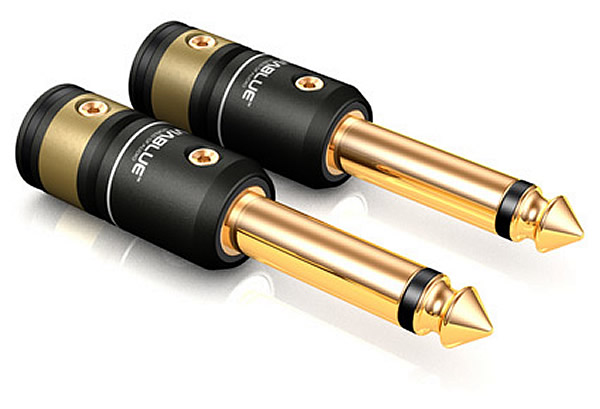

VIABLUE T6s Connector Jack 6.35mm Mono Bronze Plated Gold 24k Ø9.5mm (Unit)
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.
rMono 6.3mm Jackof theseries T6s VIABLUE which can be used in the design of a very high quality modulation cable.
All T6s series connectors are supplied with 2 diameter reducers . These reducers make it possible to adapt the connectors to the diameter of the cable to be used.
The small reducer has an outside diameter of 7.5 mm and an internal diameter of 4.5 mm, thus allowing the use of cables whose diameter can be between 3and 4.5mm.
The large one has an outer diameter of 9.5 mm and an inside diameter of 7.5 mm. It is designed for cables of diameter5 to 7.5mm.
Without these reducers, the T6s connector allows the use of cables of large cross section with a diameter between 7.5 and 9.5mm.
Specifications:
- connectorMONO
- Very Rigid Aluminum Body Machined from a Single Piece
- ContactsBronzePlated Gold 24k
- Screw Connector to the medium of 2 M4 Screw Length 1.5mm (This is just the screw connector, not the contacts themselves)
- Accepts Diameter Cables: - 3 to 4.5mm (Small Gearbox Supplied)
- 5 to 7.5mm (Large Gearbox Supplied)
- 7.5 to 9.5mm (Without Reducer) - LengthTotal:61.2mm
- Maximum Outside Diameter: 13,5mm
- Sold by unit
| Max cable diameter (mm) | 9.5 |
| Mounting type | To weld |
| Connectic | Male |
| Contacts number | 2 |
| Contacts Material (Connector) | Copper Alloy |
| Contacts Plating (Connector) | Gold |
