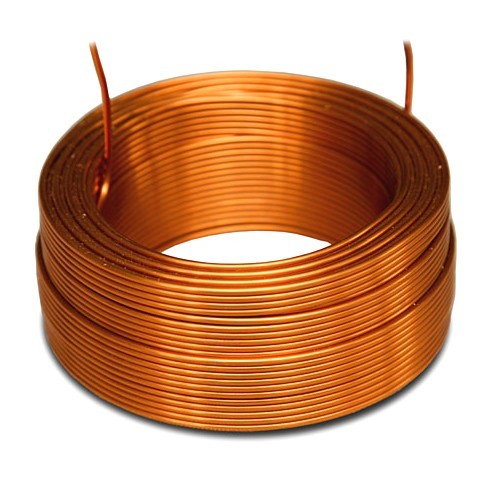

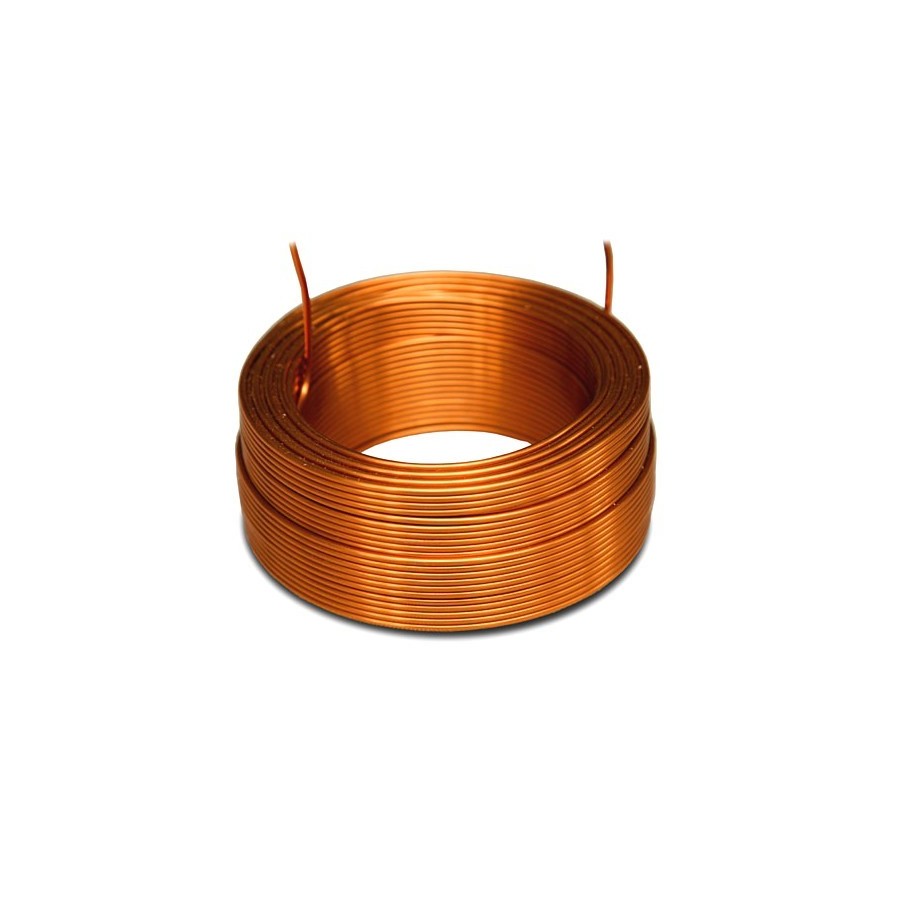

JANTZEN AUDIO 4N Copper Air Core Wire Coil 18AWG 3.3mH
No customer reviews yet, login to write a review.
By buying this product you get 1 loyalty point
Reference : 10360
New product
![[GRADE B] IFI AUDIO IDEFENDER+ Anti Ground Loop Filter Male USB-A to Female USB-A](https://www.audiophonics.fr/65620-thumb_default/ifi-audio-idefender-anti-ground-loop-filter-male-usb-a-to-female-usb-a.jpg)
![[GRADE A] FIIO K11 DAC CS43198 Headphone Amplifier 32bit 384kHz DSD256 Black](https://www.audiophonics.fr/65622-thumb_default/fiio-k11-black.jpg)
![[GRADE A] MATRIX ELEMENT M Streamer DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512](https://www.audiophonics.fr/65635-thumb_default/matrix-element-m-streamer-dac-es9028pro-wifi-airplay-dlna-mqa-32bit-768khz-dsd512.jpg)
![[GRADE A] MOONDROP COSMO Planar Magnetic Open-Back Circumaural Headphone Ø100mm 100dB 15 Ohm 13Hz-58kHz](https://www.audiophonics.fr/65641-thumb_default/moondrop-cosmo.jpg)
![[GRADE A] AUDIOPHONICS Power cable shielded OLFLEX 110CY 3x2.5mm² 1.15m](https://www.audiophonics.fr/65644-thumb_default/audiophonics-power-cable-shielded-olflex-110cy-3x25mm-115m.jpg)
Copper coil Jantzen Audio
High Purity Copper Wire. Distortion-clean induction. Suitable for all audio applications.
The coil benefits from a modern design, self-supporting and with a low tolerance to the inductance(+/-3% )
The power handling depends on the thickness of the copper wire.
The larger the cable, the higher the capacity.
Jantzen coils belong to the most versatile audio coils on the market.
| Specifications | |
|---|---|
| Type | Air Coil Core |
| Materials | High Purity Copper 4N |
| Inductance | 3,300mH |
| Tolerance | +/-3% |
| Coil External Diameter | 54mm |
| Coil Internal Diameter | 25,00mm |
| Coil Height | 30mm |
| Wire Diameter | 1.00mm |
| Wire Section | 0.79mm² |
| AWG | 18 AWG |
| Weight | 0,326kg |
