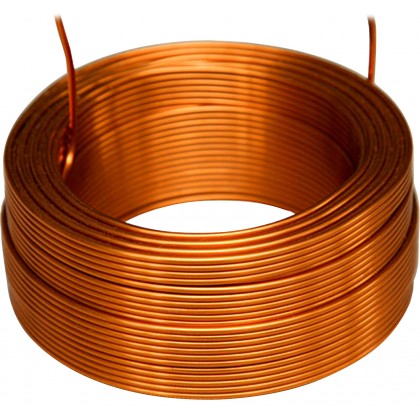

The Jantzen Audio Air Core Wire Coil coils are made from high-purity copper wire, offering distortion-free inductance. They are therefore suitable for all audio applications. These coils feature a modern, self-supporting design with low inductance tolerance (±3%). Power handling depends on the wire used and more particularly on the thickness of the copper wire. The greater the thickness, the higher the power capacity. Jantzen Audio Air Core Wire Coils are therefore among the most versatile on the market.
Technical characteristics
Specifications | |
---|---|
Product type | Air core coil |
Material | 4N copper |
Inductance | 4.4mH |
Tolerance | ±3% |
DCR | 0.52Ω |
Wire diameter | 1.8mm |
Wire Section | 13AWG |
Dimensions & Weight | |
---|---|
Outer diameter | 82mm |
Inner diameter | 35mm |
Height | 60mm |
Weight | 1.650kg |
