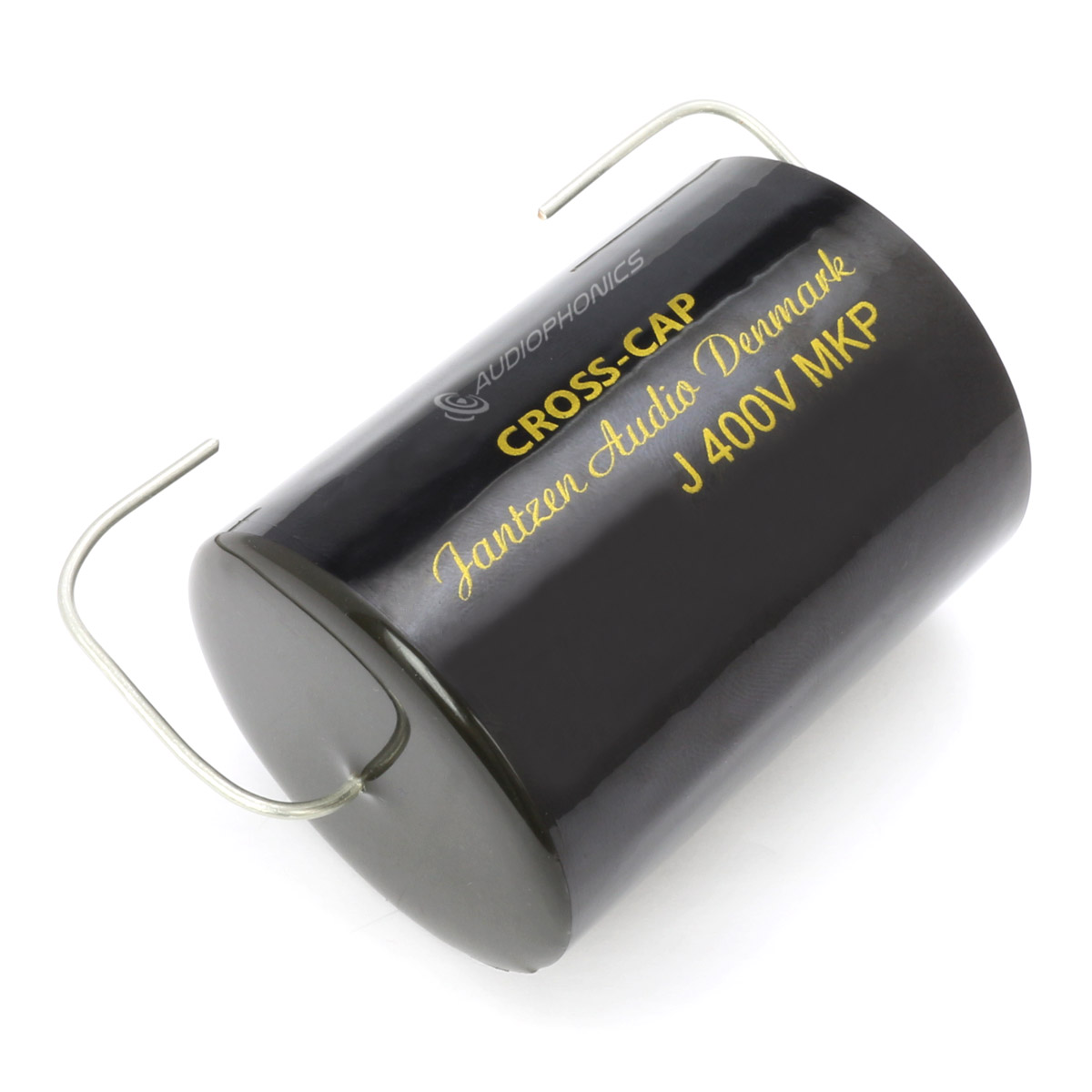

Capacitor 400V 4.7µF
Jantzen Audio Cross Caps MKP 400V are considered the best value for money for the design of passive crossovers for loudspeakers. Made in Europe, this new competitor of the German, French and English references enjoys a very good design quality. They are ideal for parallel RL and RLC "plug" correction in parallel circuit, instead of low quality electrochemical capacitors.
The structure of these MKP capacitors is worthy of high-end constructions consisting of metallized polypropylene (ZnAl) film windings, all flooded with epoxy resin to hold the entire body together. The wires are made of 4N grade tinned copper. The parameters of these capacitors have a tolerance of 5% with respect to the European standard IEC 384-16. These capacitors provide a sound without any particular coloration and offer a great recoil of distortion.
| Specifications | |
|---|---|
| Product type | MKP Capacitor |
| Capacitor film | Metalized (ZnAl) Polypropylene foil |
| Dielectric insulation | Polypropylene |
| Capacitor type | Horizontal axial |
| Voltage rating | 400VDC / 250VAC |
| Operating temperature | -40°C to +85°C |
| Capacitance | 4.7µF |
| Max tolerance | 5% |
| Loss factor at 1kHz (maximum) | C < l uF : 5 * 104 C > l < 20 µF : 105 C > 20 µF : 105 |
| Insulation resistance at 1kHz | C < l µF : 5 * 104 MOhm l < 20 uF : 3 * 104 MOhm C > 20 uF : 104 MOhm |
| General | |
|---|---|
| Dimensions | Ø18 x 36mm |
| Tolerance (%) | 5 |
| Capacitor capacitance (µF) | 4.7 |
| Rated voltage (V) | 400.0 |
| Capacitor type | Film capacitor |
| Capacitor format | Axial |
