JANTZEN AUDIO STANDARD Z-CAP Capacitor 400V 47μF
By buying this product you get 3 loyalty points
Reference : 14931
New product
Viewed products
Jantzen Audio Standard Z-Cap
Capacité MKP non-polar 47,00μF
The Jantzen Audio Standard-Z Cap series offers affordable audio capacitors for your high fidelity hardware build / repair / upgrade projects. They stand out thanks to their excellent value for money in high audio performance. These capacitors offer a high and fast reaction, detailed sound and a smooth signal compared to what the competition offers in the single polypropylene foil capacitor market.
The dielectric fluid used is nitrogen, which allows denser foil when assembling the capacitor while avoiding the risk of evaporation.

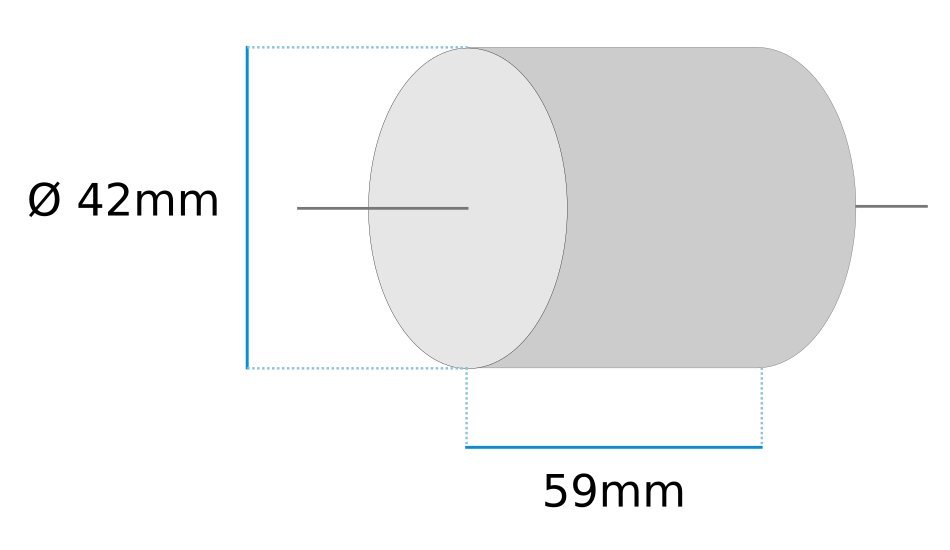

This Jantzen Audio Standard Z Cap capacitor model has a capacitance of 47,00μF for a diameter of Ø 42mm and a length of 59mm.
| Specifications | |||
|---|---|---|---|
| Type | Non-polarized MKP (single foil lane) | ||
| Dielectric | Polypropylene film | ||
| Construction | : Round tubular type axial leads | ||
| Rated Voltage | 400 VDC / 250 VAC | ||
| Electrodes | Aluminum metallized vacuum deposited | ||
| Contacts | Non-inductive zinc thermally sprayed extended film | ||
| Coating | Blue plastic tape wrapped and sealed in black resin | ||
| Leads | Tin plated oxygen free copper | ||
| Tolerance | +/- 5% | ||
| Dielectric absorption factor | =0.5% @20°C | ||
| Dielectric thickness | PB=5µm | ||
| Self-inductance | =15 nH | ||
| Insulation resistance | =100.000 MOhm@20°C | ||
| Temperature coefficient | -200°Cx10-6/°C | ||
| Temperature Range | -55°C à +85°C | ||
| Metal layer thickness | PB =1.2 Ohm/cm2 | ||
| Capacitance | 47,00μF | ||
| Diameter | Ø 42mm | ||
| Length | 59mm | ||
