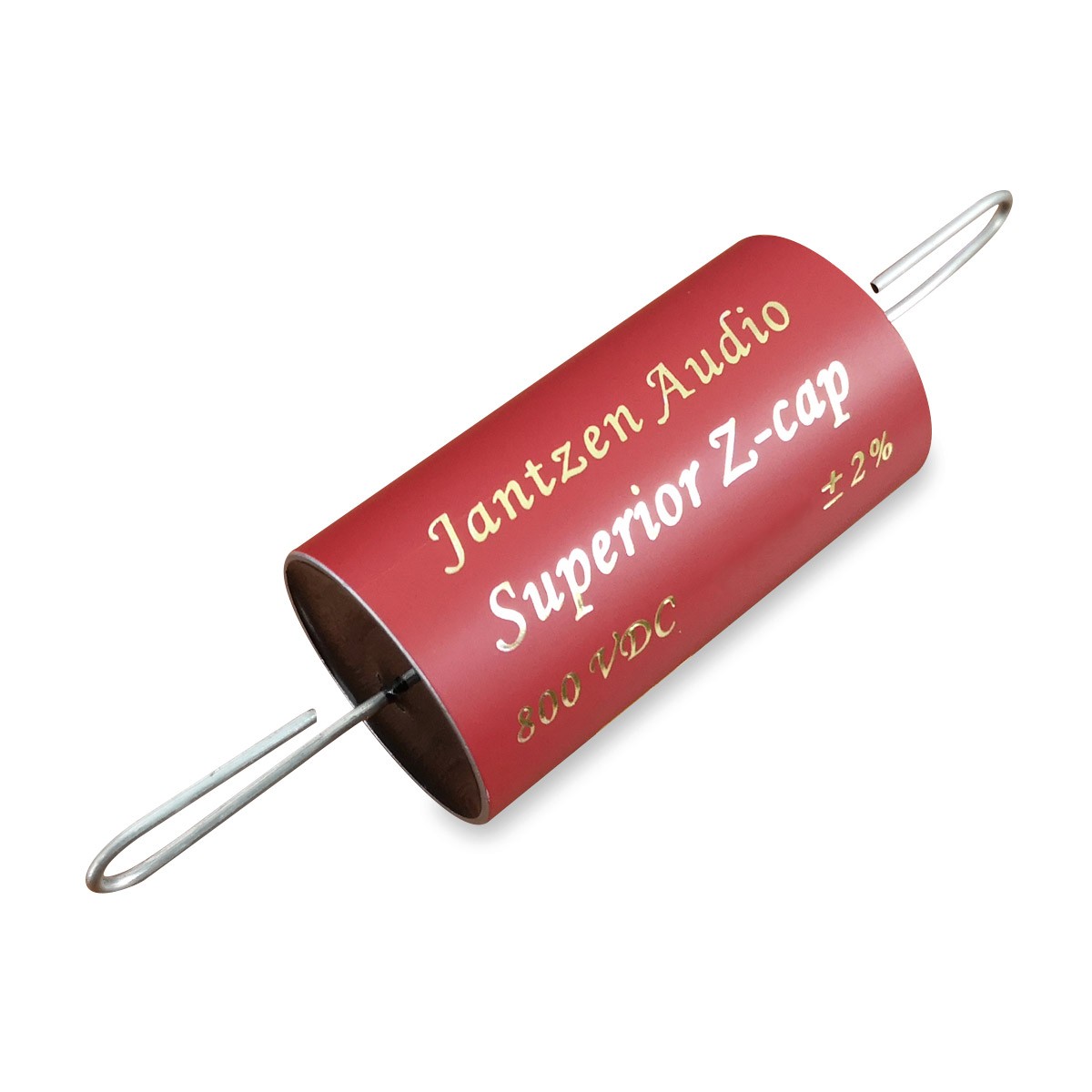

JANTZEN AUDIO SUPERIOR Z-CAP Capacitor 800V 0.56µF

Jantzen Audio's Superior Z-Cap range consists of high-end, non-polarized capacitors designed specifically for audio to allow your audio system to reproduce every nuance, every detail of the signal, while maintaining unparalleled naturalness and realism.
No customer reviews yet, login to write a review.

By buying this product you get 1 loyalty point


Yes, notify me when available !
Reference : 17040
New product

10,90 €tax incl.

9,08 € tax excl.

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Jantzen Audio Superior Z-Cap

Capacitor 800V 0.56µF

Jantzen Audio Superior Z-Cap Condensateur

Jantzen Audio's Superior Z-Cap range consists of high-end, non-polarized capacitors designed specifically for audio to allow your audio system to reproduce every nuance, every detail of the signal, while maintaining unparalleled naturalness and realism.

In particular, they are recommended for use as a capacitor for high-end tweeters or as a coupling capacitor in an amplifier. All Jantzen Audio Z-Cap capacitors have a nitrogen filling that allows the amount of foil per capacitor to be increased while eliminating the risk of evaporation that can be found in capacitors using oil or other dielectric fluids.

Superior Z-Cap capacitors are not polarized. The signal can therefore pass in both directions, without impacting the reproduction or sound performance.

Technical characteristics

Specifications
Product typeCapacitor (Super MKP, non-polarized)
Capacity0.56µF
Voltage800VDC
Tolerance±2%
DielectricPolypropylene foil
ConstructionDual foil
Axial
ElectrodeAluminum metallized, vacuum deposited
Wires materialTinned OFC Copper
Dielectric absorption factor< 0.5% @ 20°C
Dielectric thicknessPB=6µm
Self-inductance0nH
Insulation resistance> 100000MΩ @ 20°C
Temperature range-55°C to +85°C
Metal layer thicknessPB=0.4µm
Metal layer conductivityPB=2.5Ω/cm²
Général
DimensionsØ17 x 43mm
Poids11g

Data sheet
Tolerance (%)2
Capacitor capacitance (µF)0.56
Rated voltage (V)800
Capacitor typeFilm capacitor
Capacitor formatAxial
