DAYTON AUDIO RSS315HF-4 Reference Speaker Driver Subwoofer Aluminium 400W 4 Ohm 90dB 23Hz - 1000Hz Ø30.5cm

The Dayton Audio Reference Series subwoofers bring the quality and performance of the RS Series into subwoofers. As with the rest of the line, the primary goal of these subwoofers is to achieve ultra-low distortion.

Average votes for this product
5.0 / 5

By buying this product you get 28 loyalty points


Yes, notify me when available !
Reference : 4944
New product

289,00 €tax incl.

240,83 € tax excl.
Including 0,30 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Dayton Audio RSS315HF-4

Speaker Driver Subwoofer Aluminium 400W 4Ω 90.3dB 23Hz-1000Hz Ø30.5cm

Dayton Audio RSS315HF-4 Haut-Parleur Subwoofer Aluminium 400W 4Ω 90.3dB 23Hz-1000Hz Ø30.5cm

The Dayton Audio Reference Series subwoofers bring the quality and performance of the RS Series into subwoofers. As with the rest of the line, the primary goal of these subwoofers is to achieve ultra-low distortion. Second-order, third-order and intermodulation distortions are kept extremely low by the use of three shorting paths in the motor structure. A durable aramid fiber spider and extensive venting ensure a quiet, even excursion. The anodized aluminum diaphragm, rubber surround and steel frame give this speaker a unique design. This high-fidelity version offers clean, accurate bass and is ideal for integration into large speaker cabinets.

Dayton Audio RSS315HF-4 Haut-Parleur Subwoofer Aluminium 400W 4Ω 90.3dB 23Hz-1000Hz Ø30.5cm

Technical characteristics

Specifications
Product typeSubwoofer
Nominal diameterØ30.5cm (12")
Power handlingRMS : 400W
Max : 800W
Impedance4Ω
Frequency response23Hz - 1000Hz
Sensitivity90.3dB @ 2.83V/1m
Voice coil diameterØ64mm
Poids-
Overall external dimensionsØ314 x 146mm
Magnet weight4.252kg
Thiele-Small Parameters
Resonant frequency (fS)24.2Hz
DC Resistance (RE)3.1Ω
Voice coil inductance (LE)0.96mH
Mechanical Q (QMS)2.83
Electrical Q (QES)0.45
Total Q Factor (QTS)0.39
Suspension equivalent air volume (VAS)84.1L
Suspension mechanical compliance (CMS)230µm/N
Force factor (B·l)13.99T·m
Suspension mechanical resistance (RMS)10.1N·s/m
Moving mass including airload (MMS)188g
Moving mass (MMD)179.6g
Maximum linear excursion (XMAX)± 14.3mm
Displacement volume at Xmax (VD)736cm³
Efficiency (η₀)0.26%
Efficiency bandwidth product (EBP)53
Surface of the diaphragm (SD)514.7cm²
Materials
Diaphragm materialAnodized aluminum
Surround amterialRubber
Coil materialCopper
Former materialAluminum
Frame materialSteel
MagnetFerrite
-->

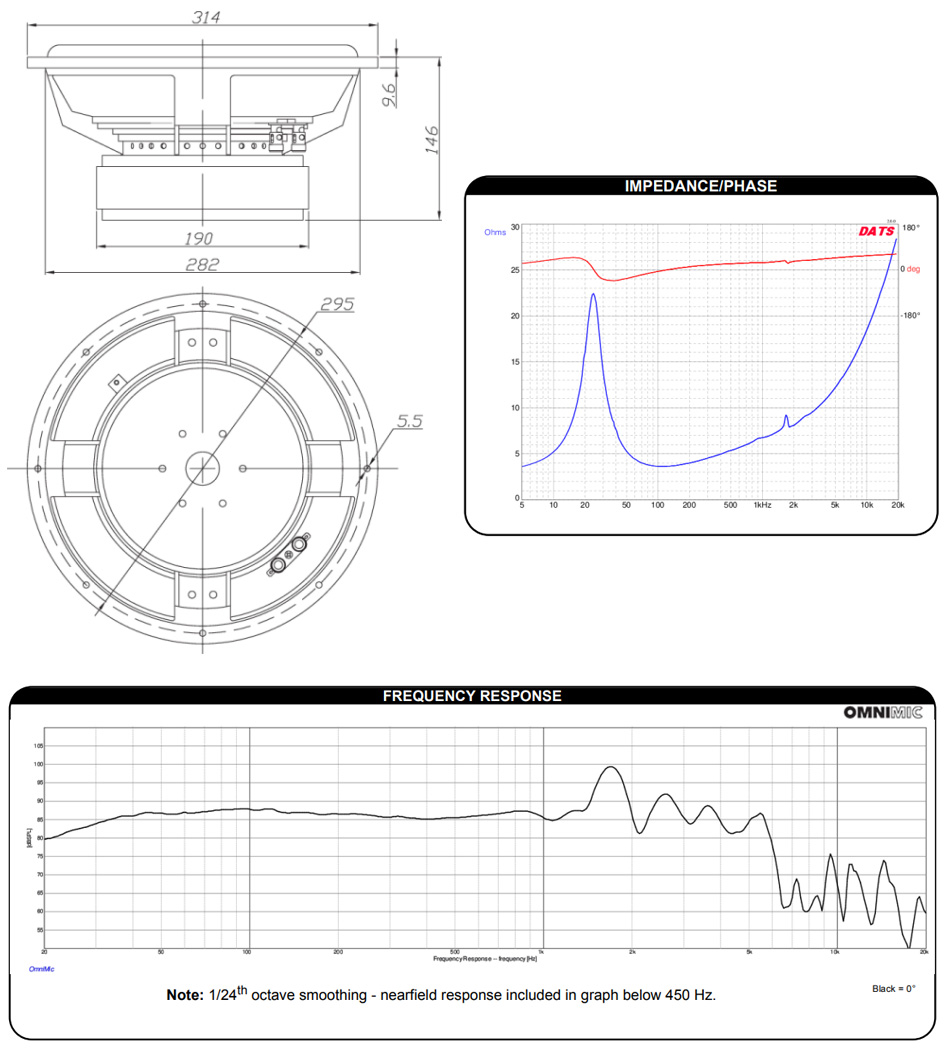

Mounting informations
Overall diameterØ314mm
Baffle hole diameterØ282mm
Overall depth146mm
Mouting bolt diameter295mm
Number of mounting holes8
Optimum cabinet size (Measured with BassBox 6 Pro)
Sealed volume20.1L (0.71ft³)
Sealed F353Hz
Vented volume57.8L (2.04ft³)
Vented F330Hz

Data sheet
Speaker Power (W RMS)400.0
Speaker TypeSubwoofer
Impedance (Ω)4
Loudspeaker diameter (mm)305.0
Diaphragm typeAluminium
Efficiency / Sensitivity (dB)86.0
Max Linear Excursion (Xmax) (mm)14.0
Lowest frequency (Hz)23
Highest frequency (Hz)1000

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
3 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
RSS315HF-4 Impressionnant !!!
Bonjour
J'ai utilisé ce haut parleurs pour faire un caisson de basse reflex de 71l pour une fréquence de 23 Hz j'ai fait le svs pb 2000 pro
avec un amplis sledge sta 500d et je dois dire que le son des basses est impressionnant pour le home cinéma les explosions sont extraordinaires très puissantes que du bonheur

 (0)
 (0)
This review has been posted for DAYTON AUDIO RSS315HF-4 Reference Speaker Driver Subwoofer Aluminium 400W 4 Ohm 90dB 23Hz - 1000Hz Ø30.5cm
Note :
 5/5
Date :
Top ! caisson clos de 29l
Vraiment top le caisson clos ! Je voulais un sub home cinéma qui soit propre niveau diffusion. Les modèles basses reflex ne m'ont jamais convaincu. L'autre avantage est la petit taille du caisson, pour une surface émissive d'un 30 cm.
J'ai réalisé la caisse en CP de 22mm avec renforts internes, sans matériaux amortissant. Cote 36 x 36 extérieur. plan Speaker Box Lite.
Le HP est bien fini et a une belle allure si l'on parle d'esthétique.
Je l'ai également utilisé en Hi-Fi sur des sons Electro ! Ça remue vraiment bien tout en restant propre. Top !
 (2)
 (0)
This review has been posted for DAYTON AUDIO RSS315HF-4 Reference Speaker Driver Subwoofer Aluminium 400W 4 Ohm 90dB 23Hz - 1000Hz Ø30.5cm
Note :
 5/5
Date :
Parfait pour un caisson basse fréquence clos
Monté dans un caisson clos avec filtre DSP et amplification dédier,
La réponse reste parfaitement plate entre 40 et 150Hz +/- 1db
chute à -3db à 33Hz comme prévu dans le calcul et -6dB à 22Hz. Le caisson utilise un résonateur Helmholtz fortement amortis par de la laine, accordé 120Hz avec une bande passante +/- 80Hz . La distorsion est bien contenu dans la plage 33 à 150Hz et remonte légèrement entre 150 et 200Hz la courbe oscillant dans cette dernière plage à +/- 3db.
 (1)
 (0)
This review has been posted for DAYTON AUDIO RSS315HF-4 Reference Speaker Driver Subwoofer Aluminium 400W 4 Ohm 90dB 23Hz - 1000Hz Ø30.5cm
