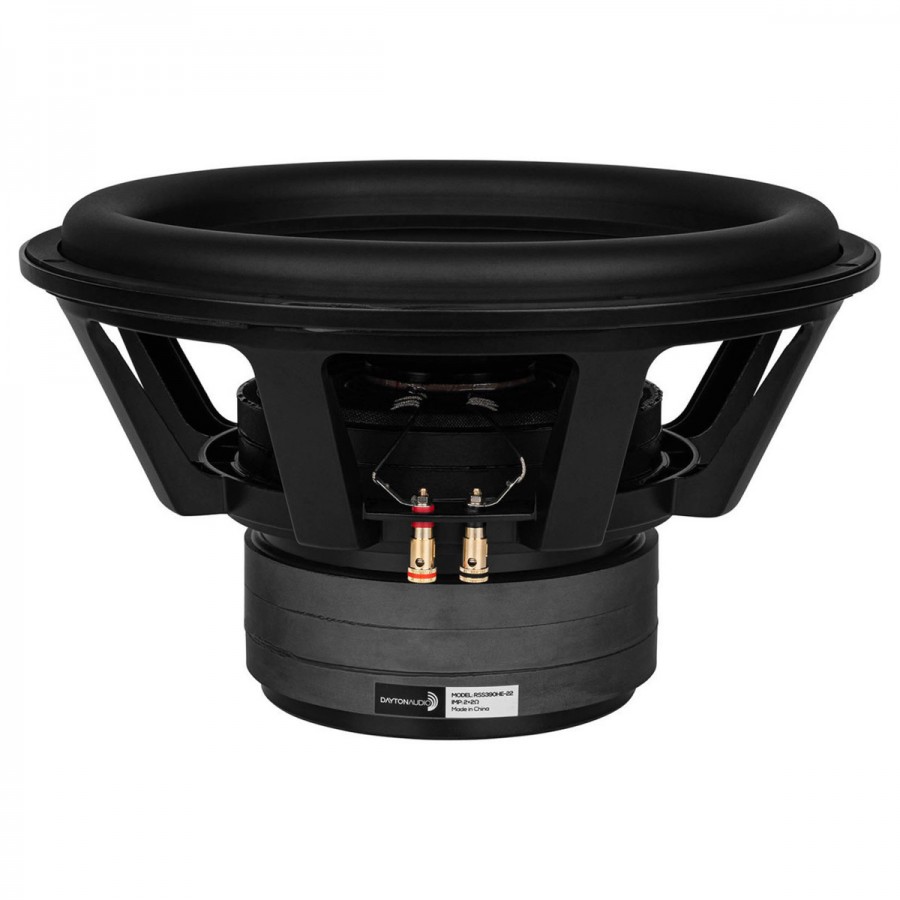

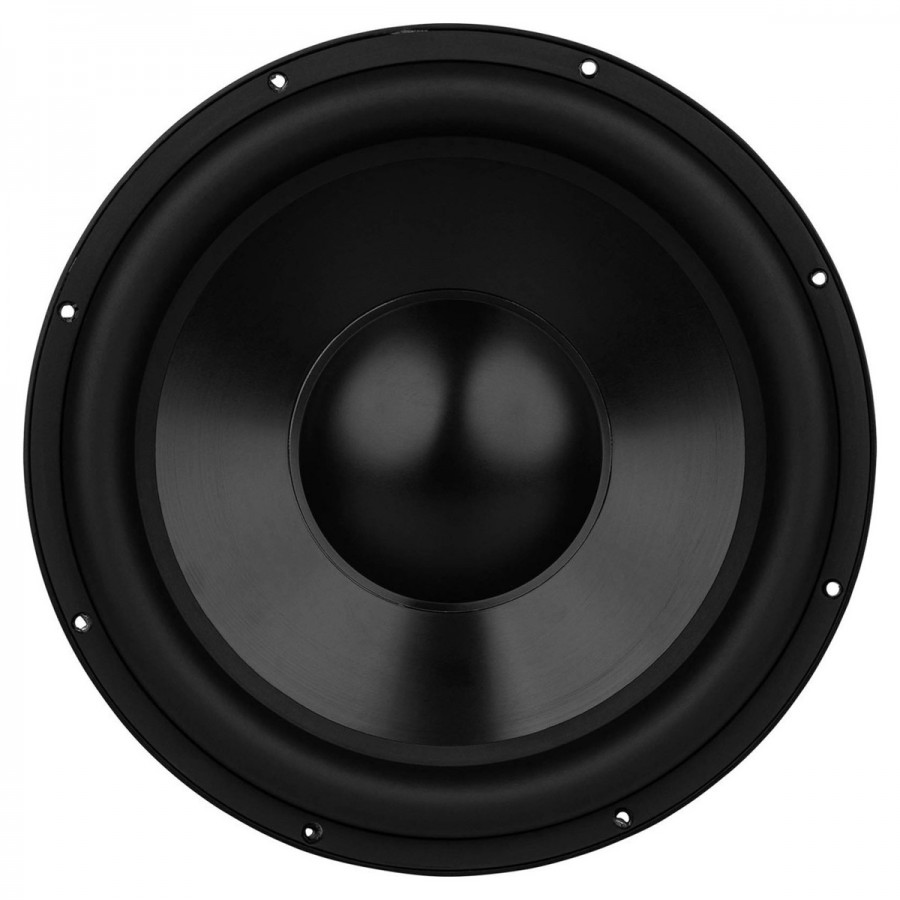

The Dayton Audio RSS390HE-22 is a subwoofer with high linear excursion capability, producing incredible bass response, with unrivalled detail, control and SPL capability. Designed for maximum linear excursion with thorough inductance control, this massive subwoofer produces unparalleled bass extension and high output with low distortion. Optimized for small speakers and featuring two 2Ω voice coils, the RSS390HE-22 is flexible enough to add breathtaking bass to an audio system.

Impressive power and low compression

The diaphragm is driven by a 3" diameter coil, wound on a thick aluminum support capable of dissipating enough heat to support up to 800W RMS. A spiral in the support minimizes eddy currents induced in any conductive support, further reducing inductance and distortion. Openings through the coil support and pole piece ensure ample airflow through the coil while minimizing disturbance, enabling quiet operation when displacement is high. In addition, the copper ring and aluminum sleeve improve heat transfer to the pole piece and magnetic assembly, absorbing coil heat more effectively. All this gives the RSS390HE-22 the ability to reliably handle high power ratings without suffering from significant power compression, even when pushed to maximum for extended periods.

Optimized surround for maximum linear excursion

To support a maximum linear excursion of 27mm, the RSS390HE-22 is equipped with a flexible surround that allows ample linear movement and keeps the coil centered even under high stress. This large, custom-machined surround holds the diaphragm in place and allows for significant movement without constricting or distorting. Two progressive spiders with tinsel wires support the diaphragm and coil. These spiders are optimized to start restricting movement just as the driver reaches its limits, to avoid damage in the event of excessive dynamic peaks. What's more, these spiders have plenty of space between them to keep the coil centered in the narrow magnetic space. Every aspect of the RSS390HE-22 surround has been designed to reliably deliver extreme excursion capability without adding significant distortion.

Incredible flexibility for adding powerful bass to any system

The specifications of the RSS390HE-22 have been balanced to suit a wide range of uses. Its low-frequency extension makes it ideal for use in a subwoofer, in both HiFi and home cinema systems. Thanks to its compact dimensions, the RSS390HE-22 is also an excellent choice for use in a high-performance car audio system. What's more, the dual 2Ω coils allow 2Ω stereo or 1Ω mono wiring configurations when connecting to a professional audio amplifier or high-current car audio, in order to extract maximum power. For home audio applications, simply wire the coils in series for a more common 4Ω load and better amplifier compatibility. All Reference Series HE speakers are designed to deliver astonishing low-frequency response with incredible power, impact and detail.
