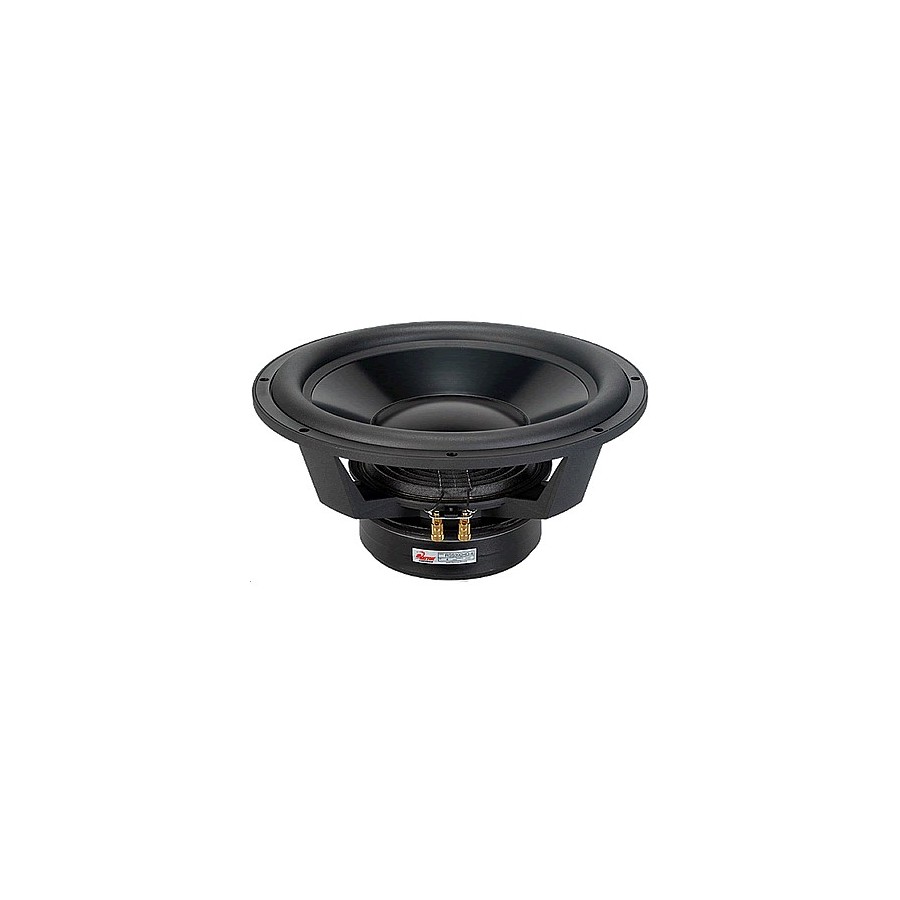

DAYTON AUDIO RSS390HO-4 Reference Speaker Driver Subwoofer Aluminium 800W 4 Ohm 93dB 21Hz - 600Hz Ø38cm

No customer reviews yet, login to write a review.

By buying this product you get 38 loyalty points


Yes, notify me when available !
Reference : 4941
New product

385,00 €tax incl.

320,83 € tax excl.
Including 0,30 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info


Integrated into the "Reference Series"of DAYTON AUDIO, the bass unit RSS390HO-4takes on board the quality and performance criteria that made the success of esteem of the "RS" line of the American manufacturer.

As with all speakers of the reference series, the main objective of this subwoofer is to maintain extremely low distortion ratesdespite a dizzying descent into the serious infra.

Thus the intermodulation distortions of the 2nd and 3rd orders are kept in respect by the use ofthree distinct electrical shortcuts of the engine.

A spider made of Aramid fiber, with exceptional thermal and mechanical resistance, helps to ensure linear and silent excursionof the mobile crew

Small "more" appreciable, the RSS390HO-4adopts a devastating look with itscone Aluminum color black anodized , herlarge suspension half rubber rollerhigh quality, and sound chassis owner rigid and perfectly ventilated.

"HO" version (High Output) specially designed for Audiomobiles applications, or the manufacture of a high powered filtered domestic subwoofer.

https://www.audiophonics.fr/images2/4941_DAYTON-RSS390HO-4_1.jpg


Features:/ Strong>

  • Largely ventilated motor eliminating compression phenomena that are harmful to the linearity and silence of the excursion
  • Very resistant cone Aluminum Anodized Black
  • Three-way electric motor for minimum distortion
  • Quad layer coilfor better power handling
  • Optimized for use in low load volume
  • High quality building materials for increased durability

Datasheets Dayton Audio RSS390HO-4
Dimensions Dayton Audio RSS390HO-4



Optimum cabinet size according to BassBox 6 Pro

Sealed Volume44.74 Litres
Sealed F350 Hz
Vented Volume77.02 Litres
Vented F330 Hz

Data sheet
Speaker Power (W RMS)800.0
Speaker TypeSubwoofer
Impedance (Ω)4
Loudspeaker diameter (mm)380.0
Diaphragm typeAluminium
Efficiency / Sensitivity (dB)93.0
Max Linear Excursion (Xmax) (mm)12.0
Lowest frequency (Hz)21
Highest frequency (Hz)600
