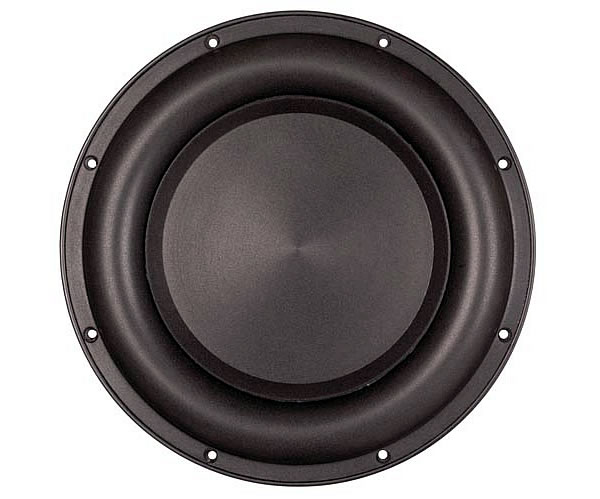

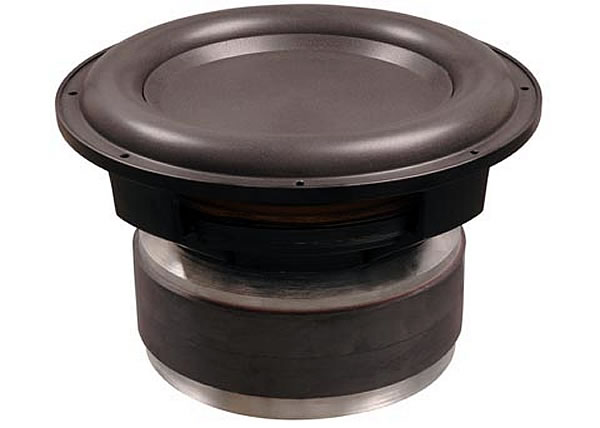

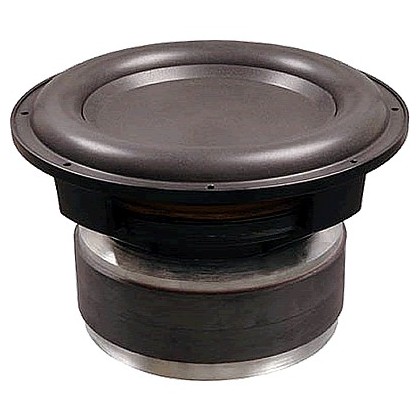

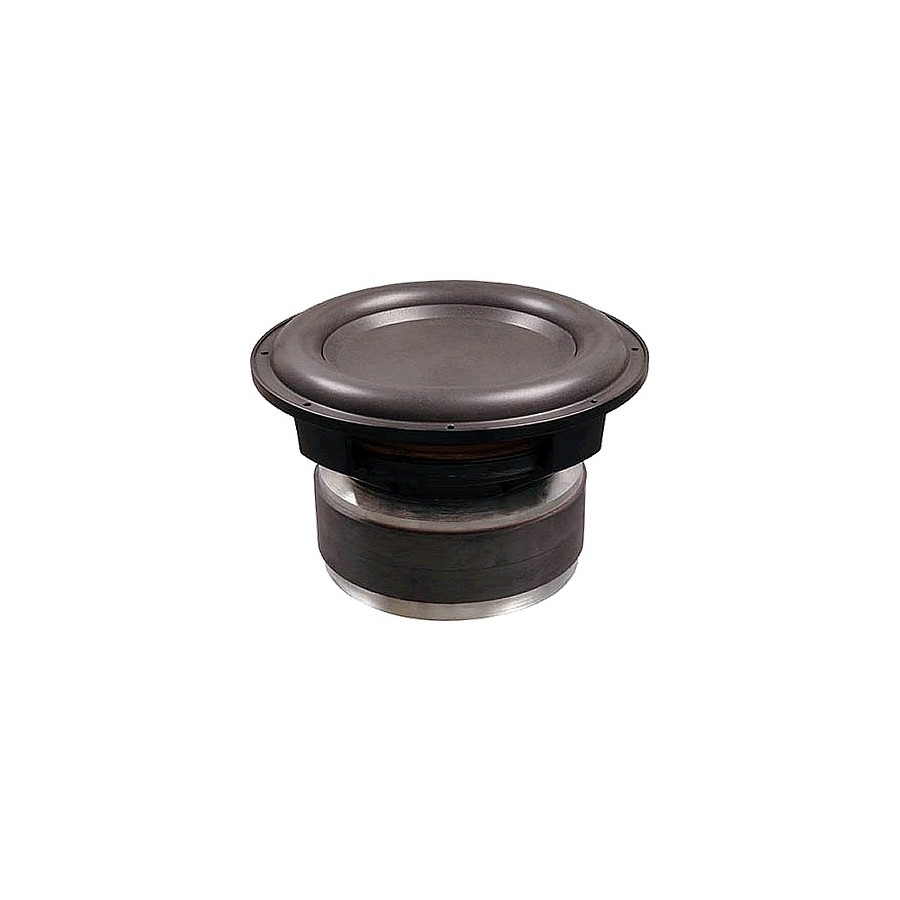

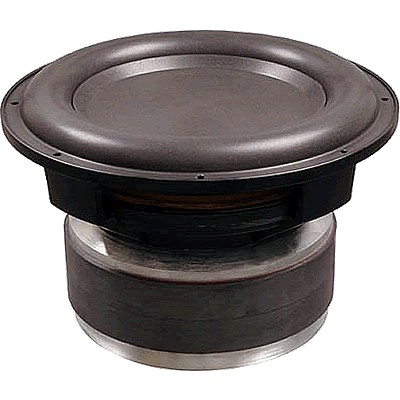

HiVi SP10 Speaker Subwoofer Long Tour 10 "

Model SP10 uses proprietary technology HiVi Symmetric Motor Drive(SMD), which consists in immersing the moving coil in the center of a powerful symmetrical magnetic field .

This symmetrization of the motor allows reducing the inductance of the movable part , and thuscontrol movement more effectively of the membrane.

The support of this crew participates actively in the " evacuation of thermal releases , and ensures the loudspeaker longevity.

The winding employs aluminum wireallowing a superior power holding, with perfectly controlled and linear displacements on one XMAX 15.5mm.

The membrane is made from multilayer pressed paper , guaranteeing a rigidity and an impermeability outside norm.

SSpecifications:

• Nominal Impedance:4Ω
• Resonant Frequency: 34Hz
• Rated Power:500W
• Sensitivity (2.83v / 1m): 84dB
• Resistance DC:/ Strong>3.4Ω
• Diameter Coil: 76mm
• Length Coil:46mm
• Mounting Type:SV
• Composition Coil:Wire Aluminum
• Number of Layers:2
• Chassis: Aluminum
• Composition Magnetic Circuit: Ferrite
• Magnetic Shielding:/ Strong>Yes
• BL:16.6
• Hey :15mm
• XmaX:15.5mm
• Cms:91.4
• Qms:4.83
• Qes:0.75
• Qts:0.57
• Mms:235g
• Sd:0.0363m2
• Vas:17.1
• Recommended Type of Load: Close
• Recommended Load Volume: 20L
• Recommended Cut-Off Frequency -3dB: 43Hz
• Weight:13kg

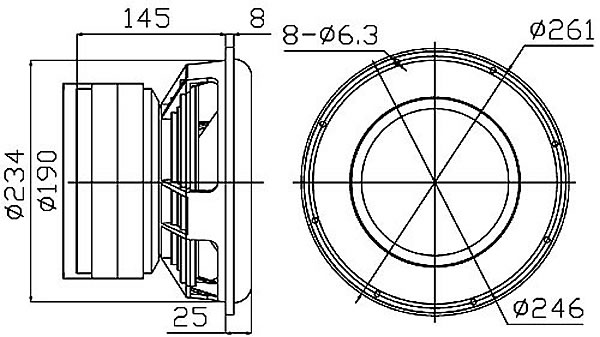

HiViSP10:Dimensions

HiViSP10:Frequency Response

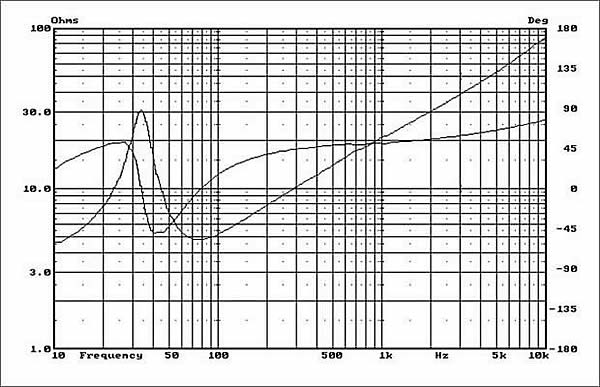

HiViSP10:Impedance Curve
