MONACOIR SPH-300CTC Speaker Driver Subwoofer Dual Coil 2x150W 2x8 Ohm 92dB

Average votes for this product
5.0 / 5

By buying this product you get 23 loyalty points


Yes, notify me when available !
Reference : 1930
New product

235,00 €tax incl.

195,83 € tax excl.
Including 0,30 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info
Subwoofer Hi-Fi, 2 x 250 WMAX, 2 x 8 Ω

Salad bowl in cast aluminum, double coil, carbon fiber reinforced membrane. Suitable for bass-reflex, symmetrical load, in active systems or in central subwoofer. For Hi-Fi, home cinema and on-board Hi-Fi.

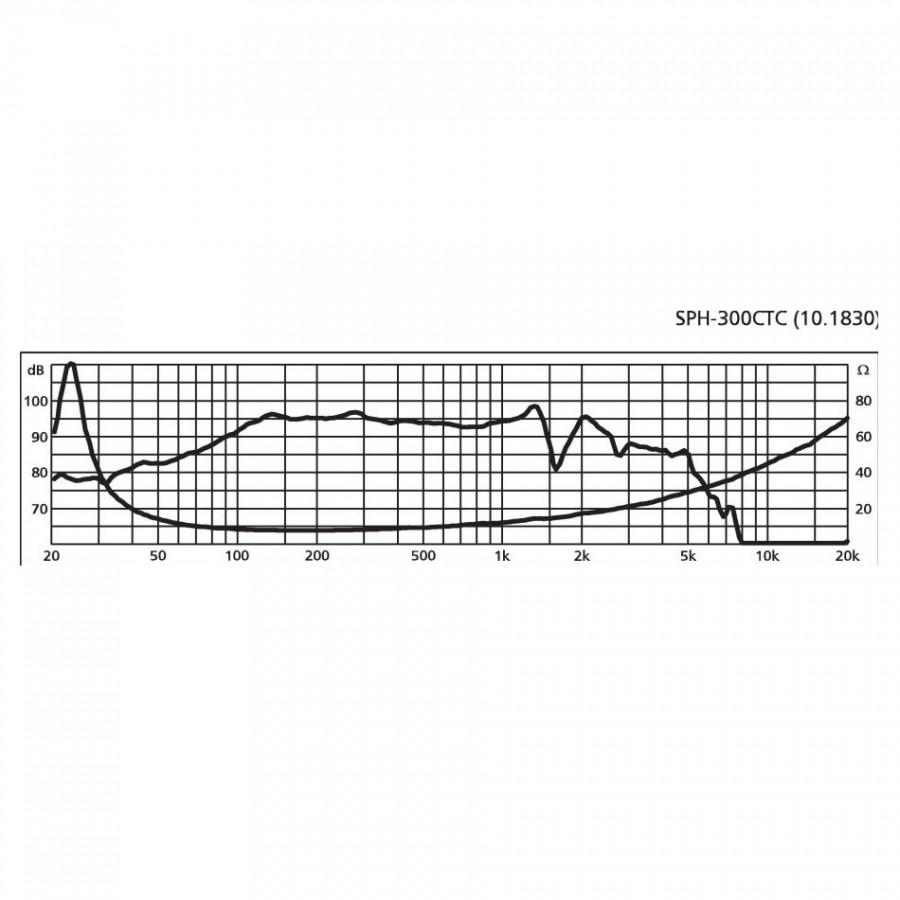

Thiele-Small parameters and frequency curves for coils mounted in parallel or in series.
Impedance (Z) 2 x 8 Ω
Resonance frequency (fs) 18 Hz
Maximum bandwidthf3-2500 Hz
Freq. cut. (F max.) 1500 Hz
Maximum power2 x 250 WMAX
Rated power (P)2 x 150 WRMS
Pressure sound. (1W / 1m)92 dB
Compliance susp. (Cms)0.75 mm / N
Moving mass (Mms)100 g
Mechanical resistance (Rms) 1.5 kg / s
Mechanical overvoltage. (Qms) 6.50
Electrical overvoltage (Qes) 0.20
Fact. total surge (Qts)0.19
Volume equ. (VAS) 225 l
DC resistance. (Re) 2 x 6 Ω / 3 Ω
Inductance coil. (The)2 x 1.1 mH / 1.1 mH
Coil diameter 62 mm
Coil holderKapton
Height winding18.8 mm
Air gap height8 mm
Linear excursion (X MAX)± 5.4 mm
Transmitting surface (Sd) 495 cm2
Flight. air displaced (Vd) 267.3 cm3
Force factor (BxL)12.1 Tm
Ref. (No) 1.3%
Magnet diameter 180 mm
Magnet Weight65 oz.

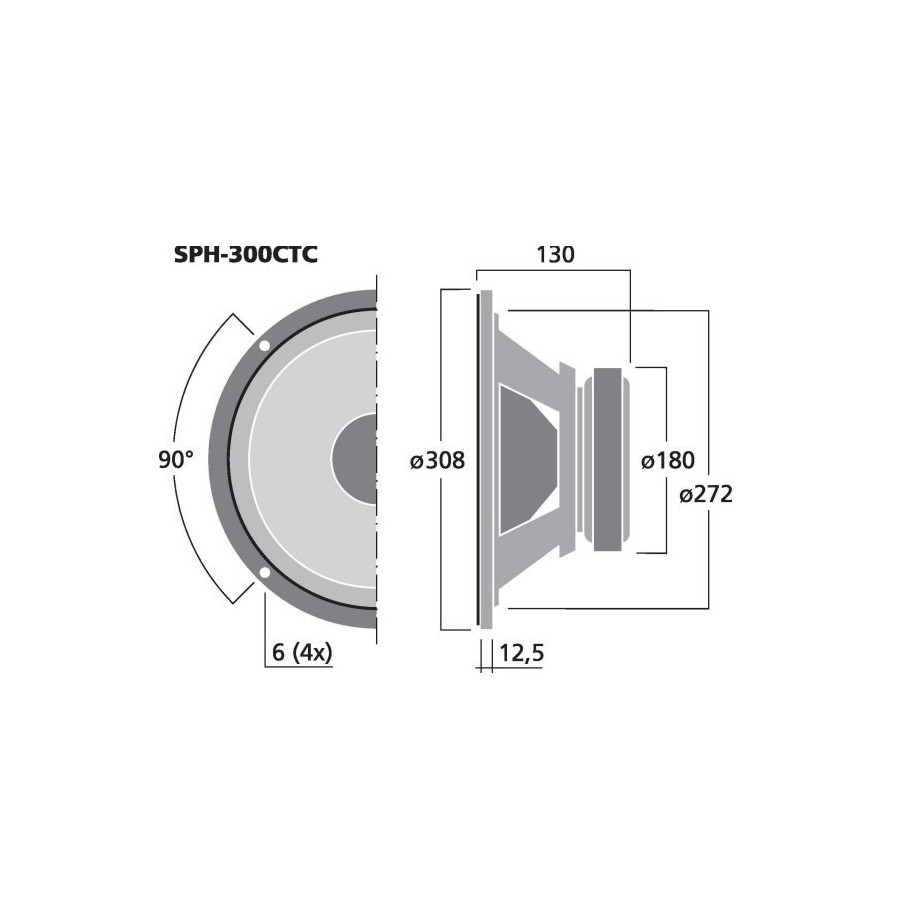

Cutting Ø 272 mm
Mounting depth130 mm
DimensionsØ 308 mm
Weight6.0 kg
Minimum recommended volume
closed- (only with pre-resistance)
bass reflex> 50 l


Data sheet
Speaker Power (W RMS)150.0
Speaker TypeSubwoofer
Impedance (Ω)8
Loudspeaker diameter (mm)300.0
Diaphragm typeCarbon fiber
Efficiency / Sensitivity (dB)92.0
Max Linear Excursion (Xmax) (mm)5.4
Lowest frequency (Hz)N/A
Highest frequency (Hz)2500
