DAYTON AUDIO DATS V3 Speaker Driver Test System

For the design of this DATS V3 speaker tester, Dayton Audio keeps everything that users liked about its previous version while improving its accuracy, capabilities, reliability, convenience and versatility.

Average votes for this product
4.7 / 5

By buying this product you get 14 loyalty points


Reference : 14039
New product

149,00 €tax incl.

124,17 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 22-11-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

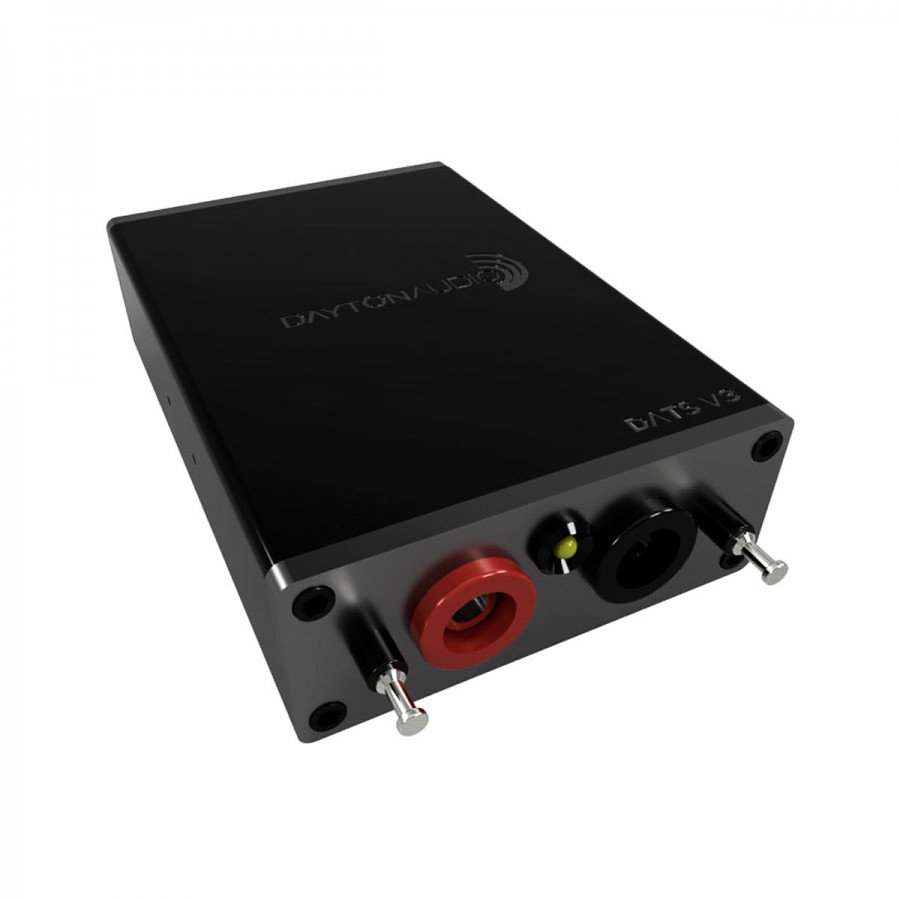

Dayton DATS V3

Speaker Driver Test System

Dayton Audio DATS V3 Testeur de Haut-Parleur

For the design of this DATS V3 speaker tester, Dayton Audio keeps everything that users liked about its previous version while improving its accuracy, capabilities, reliability, convenience and versatility.

Accurate measurement is a crucial element in the design of audio equipment. Thus, the DATS (Dayton Audio Test System) V3 is able to provide highly reliable audio data measurements for any transducer or speaker.

The DATS V3 works with your computer and comprehensive test software to measure the impedance response of a loudspeaker and obtain a complete and detailed set of Thiele/Small parameters describing the capabilities of your loudspeaker. Its use is extremely simple since it is enough to connect your loudspeaker in a traditional way then to launch the measurement from the graphical interface. The DATS V3 then sends electrical signals to the loudspeaker to define its impedance and produce a high-resolution graph of 30,000 data points, without any further hardware required.

V3, well thought improvements

First change, the most visible at first sight, the design of the DATS has been completely redesigned. The components are now integrated in an Aluminium housing, much stronger than the previous one. In addition, optional brackets allow the DATS V3 to be mounted under a desk or on a test bench, saving valuable space.

On the operating side, there is no need to look for a calibration resistor, all components are now integrated in the housing and calibration is done automatically after connecting the test cables. Test cables that have also been improved since they are now detachable, insulated and equipped with banana plugs. Of course, it is also possible to use other test cables. Finally, a USB-B connector has been added, rather than an integrated USB cable, allowing, as with test cables, to be modified.

The internal circuits have been completely redesigned and improved to offer greater accuracy and provide higher output power. Thus, it is possible to perform measurements at a higher level to minimize the possibility of noise or vibration affecting the results. Many components have been modified for models with tighter tolerances to minimize the margin of error caused by the variance of a component. Even the calibration resistance now has a tolerance of 0.1%.

For the software, the real strength of DATS, not only measures the impedance and parameters of the tested loudspeaker with great precision, but is also able to perform linearity tests to observe parameter changes according to the chosen level. The linearity test automatically performs multiple loudspeaker scans at increasing or decreasing levels while saving the results of each test for comparison. The DATS V3 is also capable of measuring the true value of inductors, capacitors and resistors and can function as a signal generator and oscilloscope to measure weak electrical signals (line level only).

Dayton Audio DATS V3 Testeur de Haut-Parleur

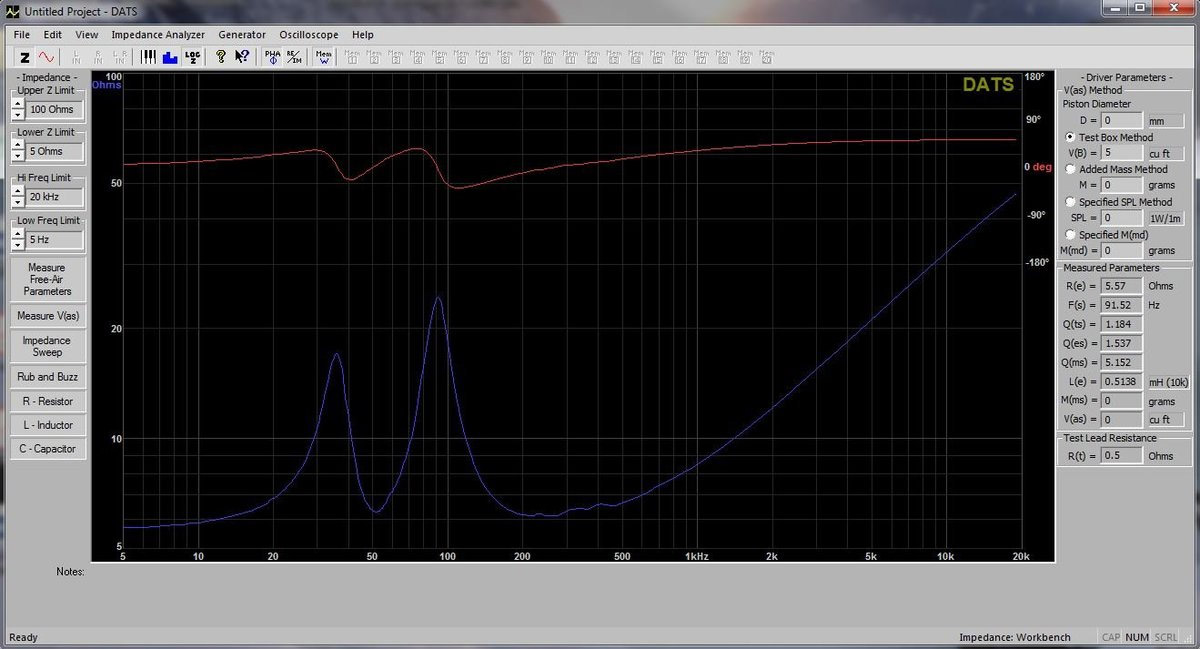

Impedance measurements

Dayton Audio DATS V3 Testeur de Haut-Parleur


T/S Parameters measurements

The DATS V3 quickly and accurately measures the Thiele & Small parameters of a loudspeaker. Simply connect the transducer to the device using the test cables and click on the Measure Free-Air Parameters button and the impedance magnitude will be displayed on the graph with the measured values Re, Fs, Qts, Qes, Qes, Qms and Le. You can then add a mass to the diaphragm or mount the loudspeaker in a test box and click on Measure V(as) to obtain mechanical parameters such as Vas or Mms.

Dayton Audio DATS V3 Testeur de Haut-Parleur


Enclosure tuning verifications

When your loudspeaker is mounted in a box, the DATS V3 allows you to simply check the general agreement of your system for open boxes or the Q value for closed boxes, using the Measure Free Air Parameters button. The system will perform a quick scan and trace the impedance magnitude to facilitate verification of your system's tuning.

Dayton Audio DATS V3 Testeur de Haut-Parleur


Verify crossover wiring and performance

Once your speaker is completed, you can start an impedance scan to measure the overall impedance of the system. A quick comparison of the measured impedance against the modelled impedance allows you to ensure that your filter is wired and working properly.

Précision LCR Meter

Dayton Audio DATS V3 Testeur de Haut-Parleur


Inductor measurements

The inductance and DC resistance of a coil are measured with a single click. The DATS V3 is accurate from 0.05mH to 100mH.

Dayton Audio DATS V3 Testeur de Haut-Parleur


Capacitor measurements

As a precision capacitance meter, the DATS V3 is in a class of its own. In just a few seconds, it measures all the electrical characteristics of a capacitor, including capacity, equivalent series resistance, resistance Q and even loss angle. It is capable of accurately measuring capacities from 0.002µF to 10000µF.

Dayton Audio DATS V3 Testeur de Haut-Parleur


Resistor measurements

The DATS V3 is of course also able to measure a resistance and trace its impedance. This allows you to see to what extent your resistances are non-inductive. These measurements are accurate from 0.002Ω to 10000Ω.

Use under Windows 10 requires authorizing access to the virtual microphone, this operation requires administrator privileges.

Technical characteristics

Specifications
Product typeSpeaker driver test system
InputBanana plugs connectors
OutputUSB-B
Case materialAluminium
Dimensions (LxPxH)63.5 x 104.7 x 25.4mm
Weight363g
ColorBlack
Package1x Dayton Audio DATS V3
1x Testing cables
1x USB cables
