DAYTON AUDIO CE32A-8 Mini Speaker Driver Full Range 2W 8 Ohm 78dB 240Hz - 20kHz Ø2.5cm

The CE32A-8 offers features you would expect from a much larger speaker, but in a form factor suitable for miniature applications requiring high dispersion and rich, natural sound. Its high-quality design includes an elegant concave black anodized aluminum cone, rubber suspension, fabric spider, high-output motor with neodymium magnet, and a sturdy, conventionally mountable frame.

No customer reviews yet, login to write a review.

No loyalty points for this product.


Yes, notify me when available !
Reference : 14794
New product

6,50 €tax incl.

5,42 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Dayton Audio CE32A-8

Mini Speaker Driver Full Range 2W 8 Ohm 78dB 240Hz - 20kHz Ø2.5cm

Dayton Audio CE32A-8 Mini Haut-Parleur Large Bande 2W 8 Ohm 78dB 240Hz - 20kHz Ø2.5cm

Dayton Audio's new Commercial Engineering (CE) range offers a series of small speakers primarily for use by engineers, designers and integrators, providing versatility for a wide range of applications. This range integrates various types of loudspeakers. Each one has been designed to offer very good audio performance, whatever the integration context. These versatile and economical transducers are available in sizes ranging from 28mm to 90mm in diameter, and with power ratings from 1.5W to 5W RMS.

The CE32A-8 offers features you would expect from a much larger speaker, but in a form factor suitable for miniature applications requiring high dispersion and rich, natural sound. Its high-quality design includes an elegant concave black anodized aluminum cone, rubber suspension, fabric spider, high-output motor with neodymium magnet, and a sturdy, conventionally mountable frame.

Dayton Audio CE32A-8 Mini Haut-Parleur Large Bande 2W 8 Ohm 78dB 240Hz - 20kHz Ø2.5cm

Technical characteristics

Specifications
Speaker driver typeFull range
Nominal diameterØ2.54cm (1")
PowerRMS : 2W
Max : 4W
Impedance8Ω
Frequency response240Hz - 20kHz
Sensitivity77.9dB @ 2.83V/1m
Voice coil diameterØ127mm (3")
Thiele-Small Parameters
Resonant frequency (Fs)274Hz
DC Resistance (Re)7.18Ω
Voice coil inductance (Le)0.29mH
Mechanical quality factor (Qms)2.84
Electromagnetic quality factor (Qes)1.25
Total quality factor (Qts)0.87
Compliance equivalent volume (Vas)0.00015 ft.³
Mechanical compliance of suspension (Cms)0.69mm/N
Force factor (BL)2.2Tm
Diaphragm mass inc. airload (Mms)0.52g
Max linear excursion (Xmax)0.7mm
Surface area of cone (Sd)3.92cm²
Materials
ConeAluminum
SurroundRubber
MagnetNeodymium

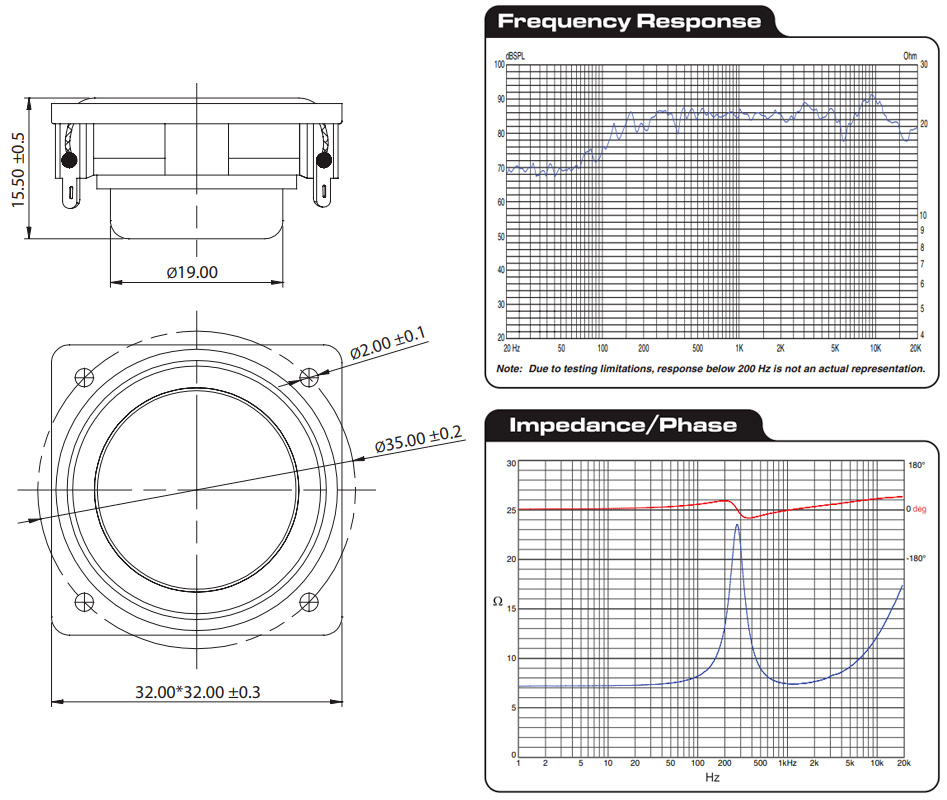

Mounting informations
Total external diameterØ32mm (1.26")
Cutout diameterØ31.5mm (1.24")
Depth14.5mm (0.57")
Number of mounting holes4
Optimum cabinet size (Measured with BassBox 6 Pro)
Sealed volume0.000229ft³
Sealed F3292.5Hz
Vented volume0.000678ft³
Vented F3140.3Hz

Data sheet
Speaker Power (W RMS)2.0
Speaker TypeFull range
Impedance (Ω)8
Loudspeaker diameter (mm)25.0
Diaphragm typeAluminium
Efficiency / Sensitivity (dB)78.0
Max Linear Excursion (Xmax) (mm)0.7
Lowest frequency (Hz)240
Highest frequency (Hz)20000
