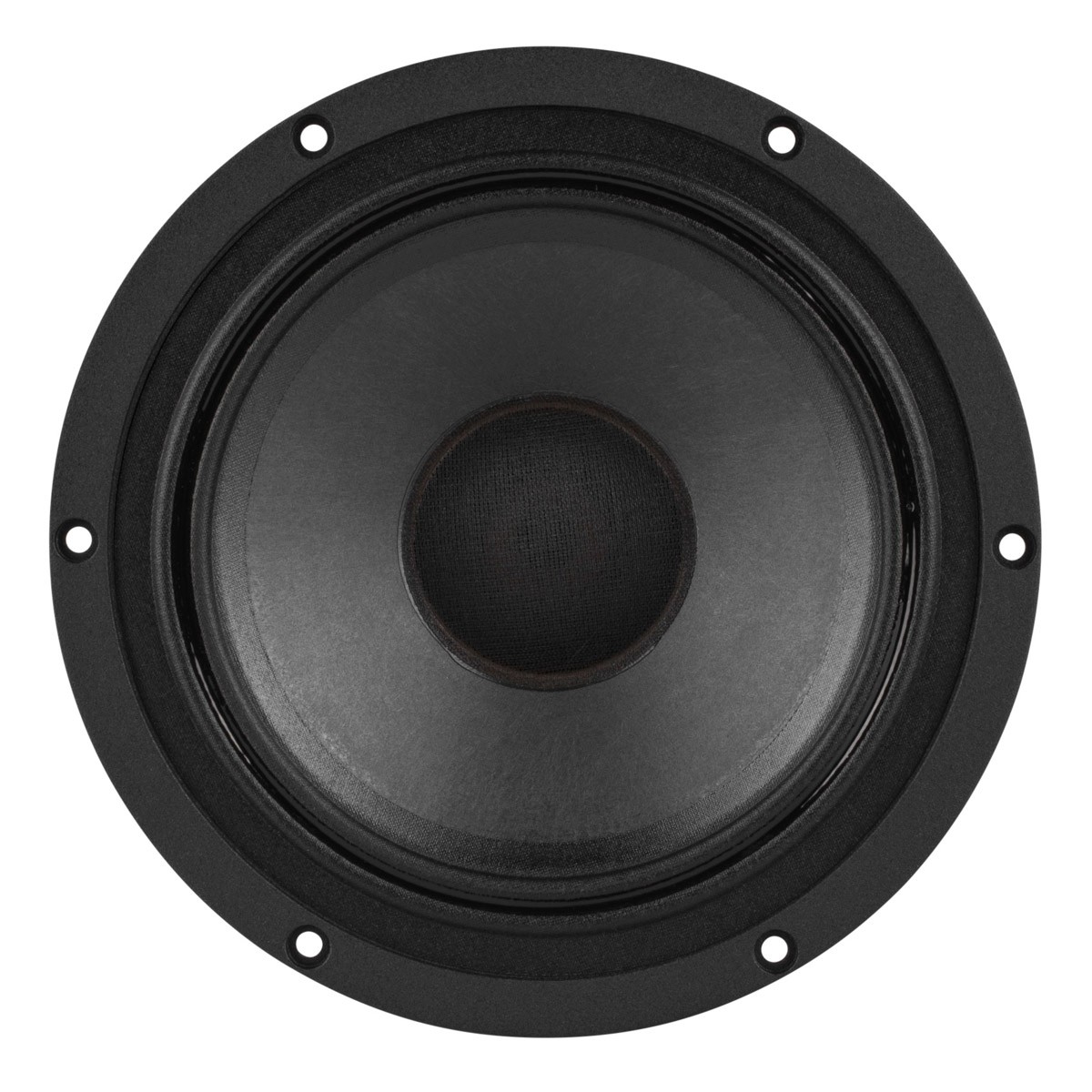

DAYTON AUDIO PM180-8 Speaker Driver Midbass 30W 8 Ohm 94.4dB 55Hz - 12kHz Ø16.5cm
DAYTON AUDIO PM180-8
Speaker Driver Midbass 30W 8 Ohm 94.4dB 55Hz - 12kHz Ø16.5cm
The Dayton Audio PM180-8 bass-midrange driver is based on the same design type as the Point Source broadband driver range. It will allow the design of multi-way loudspeakers with a wide frequency band reproduced in the midrange and lowrange midrange. In addition, the contained size of this loudspeaker is ideal for mounting a system of reasonable size, without sacrificing performance and sound accuracy.
The PM range of low-medium drivers provides linear and integrated sound reproduction of the Nedymus Klippel engines, greatly reducing distortion. The membrane is made of paper reinforced with Kevlar and allows to obtain an excellent performance and a very nice precision. The PM range speakers can ideally be combined with a ribbon or planar-magnetic tweeter.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Midbass Speaker Driver |
| Nominal diameter | 16.5cm (6.5") |
| Power | RMS : 30W Max : 60W |
| Impedance | 8 Ohm |
| Frequency response | 55Hz - 12kHz |
| Sensitivity | 94.4dB 2.83V/1m |
| Voice coil diameter | 2.54cm |
| Thiele-Small Parameters | |
|---|---|
| Resonant frequency (Fs) | 53.2Hz |
| DC Resistance (Re) | 6.4 Ohm |
| Voice coil inductance (Le) | 0.68mH |
| Mechanical quality coefficient (Qms) | 4.13 |
| Electromagnetic quality coefficient (Qes) | 0.30 |
| Total quality coefficient (Qts) | 0.28 |
| Compliance equivalent volume (Vas) | 1ft³ |
| Mechanical compliance of suspension (Cms) | 1.1mm/N |
| Force factor (BL) | 7.7Tm |
| Diaphragm mass Inc. airload (Mms) | 8.2g |
| Max linear excursion (Xmax) | 4.6mm |
| Surface area of cone (Sd) | 130.69cm² |
| Materials | |
|---|---|
| Cone | Paper / Kevlar |
| Surround | Cloth |
| Frame | Aluminium cast |
| Magnet | Neodymium |
| Mounting informations | |
|---|---|
| Total external diameter | 180.1mm (7.09") |
| Cutout diameter | 145mm (5.71") |
| Depth | 72.6mm (2.86") |
| Bolt circle diameter | 170mm (6.69") |
| Number of mounting holes | 6 |
| Optimum Cabinet Size (Measured with BassBox 6 Pro) | |
|---|---|
| Sealed volume | 0.16ft³ |
| Sealed F3 | 150Hz |
| Vented volume | 0.31ft³ |
| Vented F3 | 95Hz |
| Speaker Power (W RMS) | 30 |
| Speaker Type | Midbass |
| Impedance (Ω) | 8 |
| Loudspeaker diameter (mm) | 165.0 |
| Diaphragm type | Paper |
| Diaphragm type | Kevlar |
| Efficiency / Sensitivity (dB) | 94.0 |
| Max Linear Excursion (Xmax) (mm) | 4.6 |
| Lowest frequency (Hz) | 55 |
| Highest frequency (Hz) | 12000 |
