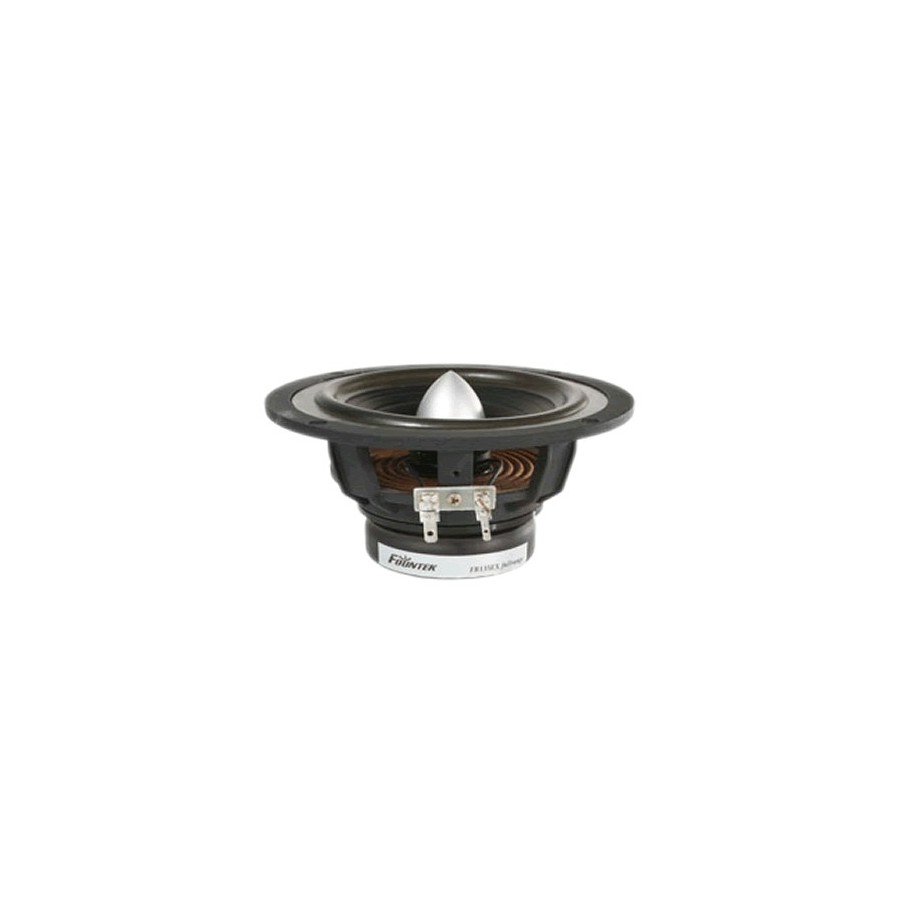

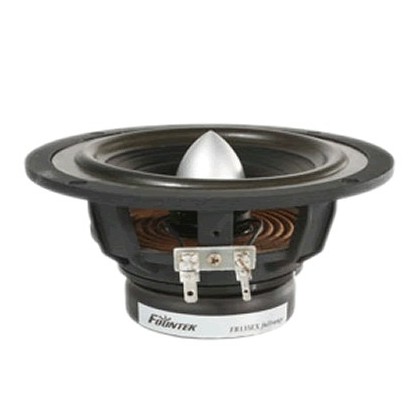

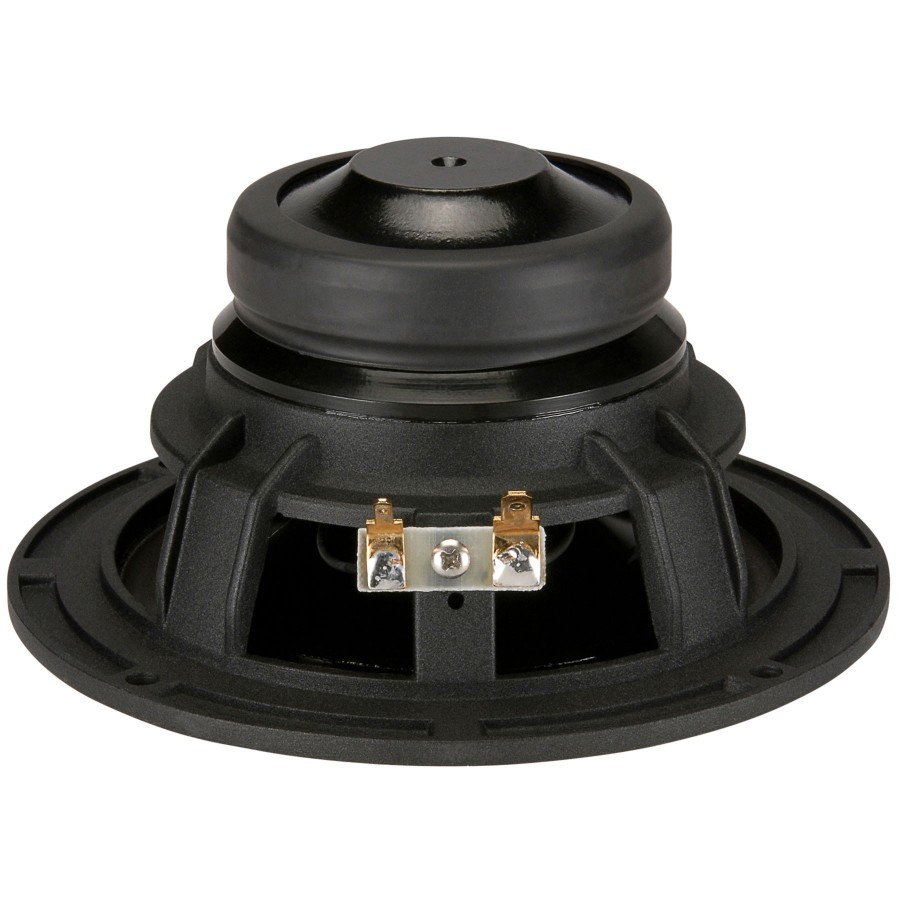

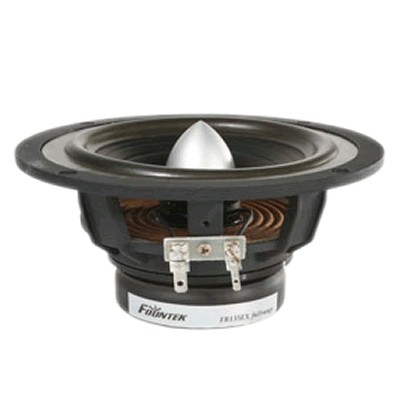

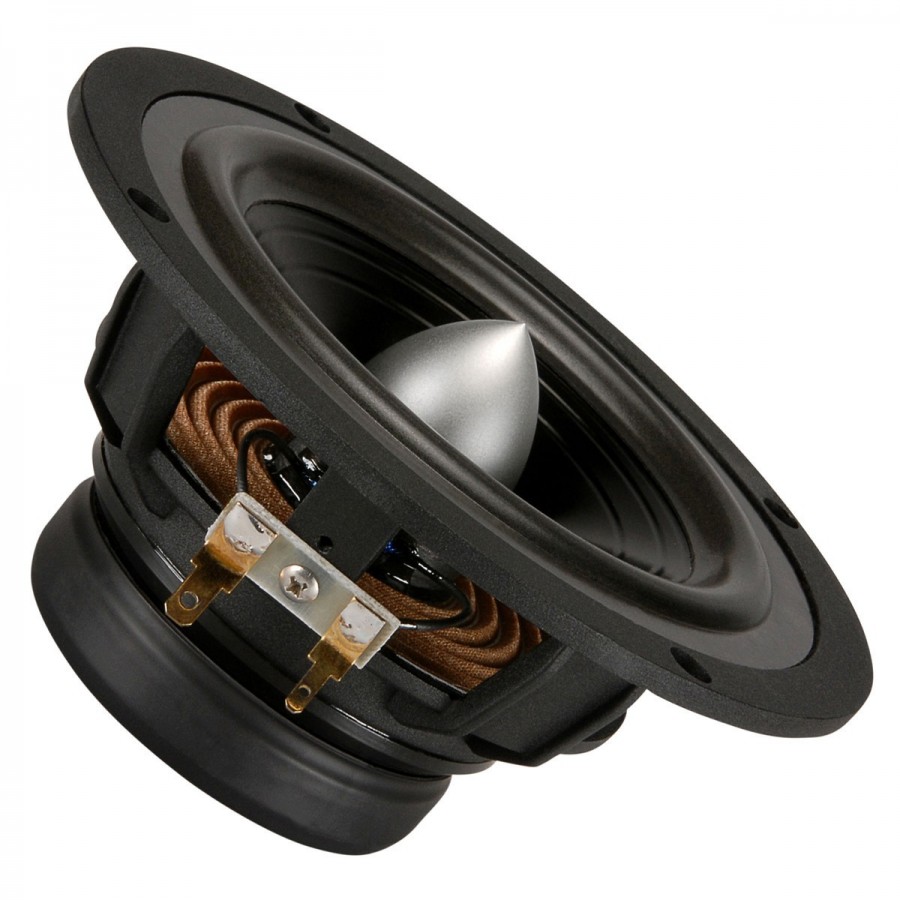

FOUNTEK FR135EX Speaker Driver Full Range Neodymium 40W 8 Ohm 85dB 50Hz - 26kHz Ø13cm

Average votes for this product
4.0 / 5
  Based on 1 customers reviews.

By buying this product you get 7 loyalty points


Reference : 5924
New product

75,00 €tax incl.

62,50 € tax excl.
Including 0,30 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

FOUNTEK FR135EX Haut parleur large bande 13cm

D'un excellent rapport qualité prix, ce petit haut-parleur large bande s'intégrera parfaitement dans tout projet de petites et moyennes enceintes. Un haut parleur mélodique capable d'un très beau feeling musical. Son aimant neodyme et son cône de diffraction participe à la qualité singulière de ce haut parleur simple d'utilisation.

Il sera parfaitement exploitable dans une charge BASS REFLEX de 12.5L.

Un guide PDF est disponible en téléchargement avec un plan de construction et une correction RLC passive afin d'exploiter au mieux ce haut parleur. (Voir Attachments).

https://www.audiophonics.fr/images2/5924/5924_FOUNTEKFR135EX_1.jpg

https://www.audiophonics.fr/images2/5924/5924_FOUNTEKFR135EX_2.jpg

Specifications

Magnet system

Overall Dimensions

D146X73mm

Magnet system type

Neodymium

Net.Weight

0.98kg

Magnetic Gap Height

14mm

Nominal Power Handlng

40 W rms

B Flux Density

0.88T

Nominal Impedance

8 Ohms

Bl Product

5.027Tm

Sensitivity 1W/1M

85.1dB

Max Linear Excursion

5.0mm+/-

Frequency Response

50-26,000Hz*

T/S Parameter



Resonant frequency

61.5Hz

Cms

0.887mm/N

Voice Coil

Sd

70.50cm^2

Voice Coil Diameter

32mm

Vas

6.263 litre

Voice Coil Height

4mm

Mmd

7.205gm

Voice Coil Former

Black aluminum

Mms

7.546gm

Voice Coil Wire

copper ribbon

Qms

1.709

Number of Layers

1

Qes

0.692

DC Resistance

6.Ohms

Qts

0.493



https://www.audiophonics.fr/images2/5924/5924_FOUNTEKFR135EX_3.jpg





https://www.audiophonics.fr/images2/5924/5924_FOUNTEKFR135EX_4.jpg


Data sheet
Speaker Power (W RMS)40.0
Speaker TypeFull range
Impedance (Ω)8
Loudspeaker diameter (mm)130.0
Diaphragm typeAluminium
Efficiency / Sensitivity (dB)85.0
Max Linear Excursion (Xmax) (mm)5.0
Lowest frequency (Hz)50
Highest frequency (Hz)4500

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Livraison par Colissimo Livraison par UPS Express Saver Livraison par DPD
Only registered users can post a review. Log in or create an account .
Average votes
4.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 4/5
Date :
Fountek FR135EX
Monté dans une enceinte à ligne de transmission, ce haut-parleur émet un son très propre. Pour sa taille, c'est impressionnant de descendre aussi bas dans les graves.
Le seul point faible est l'aspect visuel, notamment avec la mousse visible au niveau du cache-noyau.
Je recommande ce petit large bande de bonne facture.
