Specifications | Magnet system | ||
Overall Dimensions | 88.4X52.4mm | Magnet system type | ferrite,shield |
Net.Weight | 0.58Kg | Magnetic Gap Height | 3mm |
Nominal Power Handlng | 15 W | B Flux Density | 1.03T |
Nominal Impedance | 8 Ohms | Bl Product | 3.152Tm |
Sensitivity 1W/1M | 85dB | Max Linear Excursion | 1mm+/- |
Frequency Response | 105-25,000Hz | T/S Parameter | |
Resonant frequency | 105Hz | Cms | 1.127mm/N |
Voice Coil | Sd | 27.34cm^2 | |
Voice Coil Diameter | 25mm | Vas | 1.2L |
Voice Coil Height | 5.2mm | Mmd | 1.926gm |
Voice Coil Former | Aluminum | Mms | 2gm |
Voice Coil Wire | CCAR | BL | 3.114Tm |
Number of Layers | 1 | Qms | 2.568 |
DC Resistance | 6.3 Ohms | Qes | 0.777 |
Levc@1KHz | 45uh | Qts | 0.597 |
New Customer?
Create your account 0
0 item(s) - 0,00 € No products
To be determined Shipping
0,00 € Tax
0,00 € Total
Prices are tax included
Quantity
Total
Product successfully added to your shopping cart
There are 0 items in your cart. There are 0 items in your cart.
Total (tax incl.)

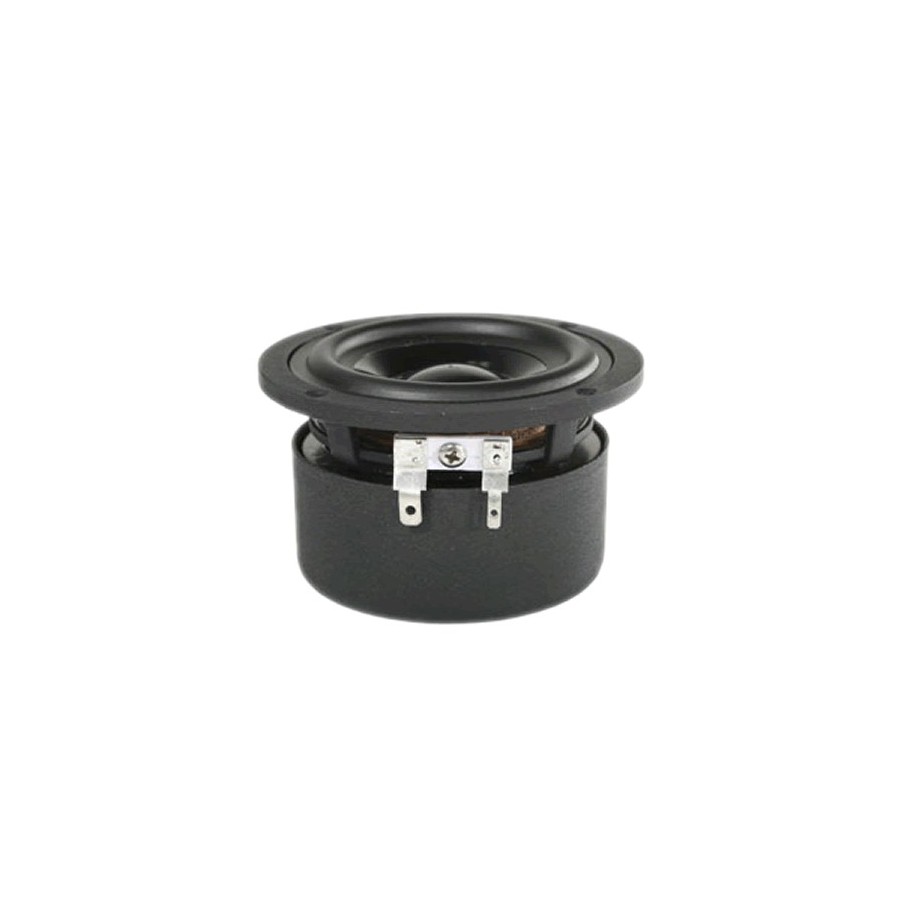

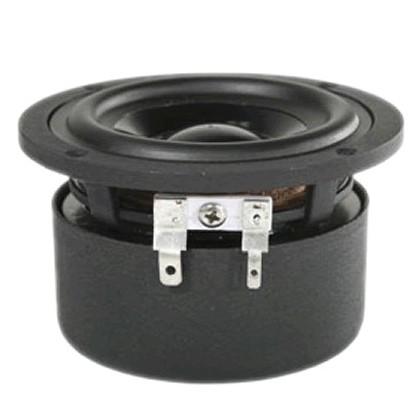

FOUNTEK FR88 Speaker Driver Full Range 15W 8 Ohm 85dB 105Hz - 25kHz Ø8cm
By buying this product you get 1 loyalty point
Reference : 5921
New product
FOUNTEK FR88 Haut parleur large bande 8cm
D'un excellent rapport qualité prix, ce petit haut-parleur large bande s'intégrera parfaitement dans tout projet de petites et moyennes enceintes. Voici un haut parleur idéal pour la conception de monitor satellites sans tweeter pour un résultat cohérent et abordable.
Grâce à son impédance de 8 ohm, il peut être utiliser mode MTM médium tweeter médium ou avec plusieurs hauts parleurs pour un large champs de diffusion ( Line Array).
Un caisson de grave pourra apporter un meilleur soutien dans les basses à partir de 100Hz pour une parfaite adéquation dans un système 2.1. Ce haut parleur blindé est positionable proche d'un écran.
| Speaker Power (W RMS) | 15.0 |
| Speaker Type | Full range |
| Impedance (Ω) | 8 |
| Loudspeaker diameter (mm) | 80.0 |
| Diaphragm type | Paper |
| Efficiency / Sensitivity (dB) | 85.0 |
We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :
Only registered users can post a review. Log in or create an account .
Average votes 5.0 / 5 1 reviews | Why write products reviews ? You can share your feelings about products and help other people by sharing your experience |
Note :
5/5
Date :
2015-02-26
Philippe P.
philippe p 26 02 2015
excellent large bande à la qualité de fabrication surprenante, vu le prix. une belle écoute qui donne envie d'exploiter encore mieux son potentiel:TQW, charge pavillon , appolitto, etc
This review has been posted for FOUNTEK FR88 Speaker Driver Full Range 15W 8 Ohm 85dB 105Hz - 25kHz Ø8cm excellent large bande à la qualité de fabrication surprenante, vu le prix. une belle écoute qui donne envie d'exploiter encore mieux son potentiel:TQW, charge pavillon , appolitto, etc
