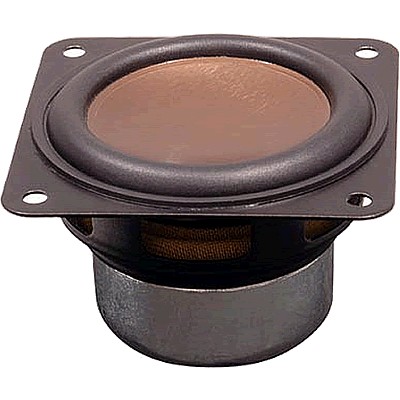

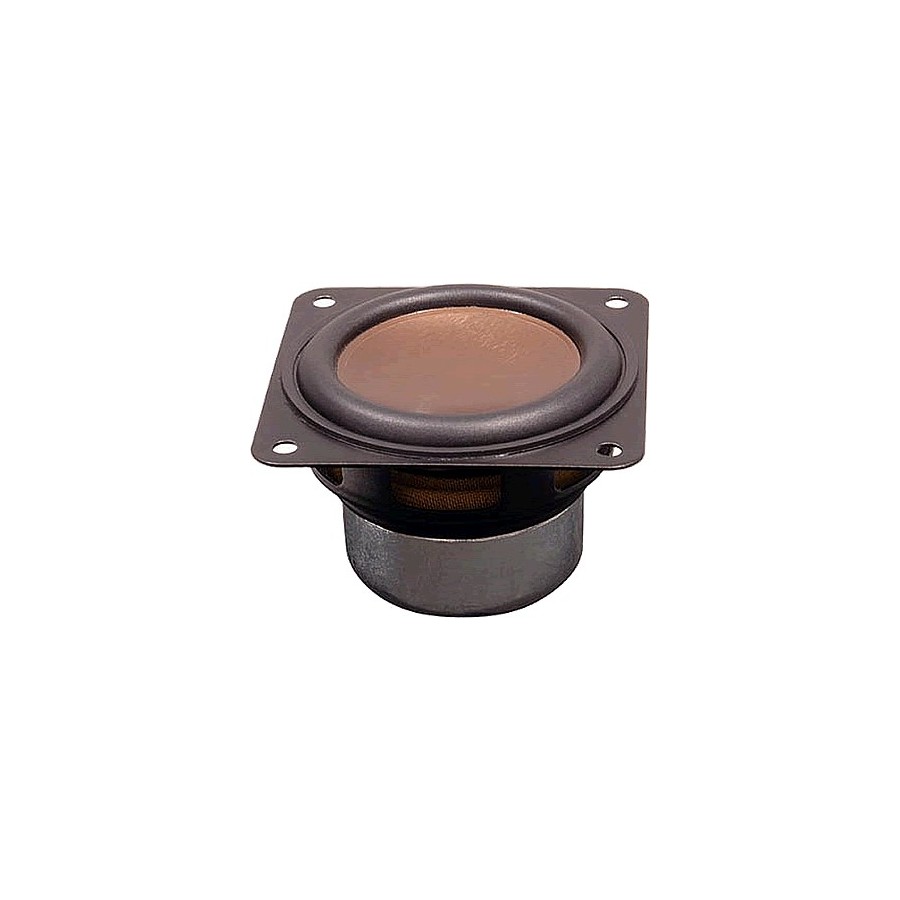

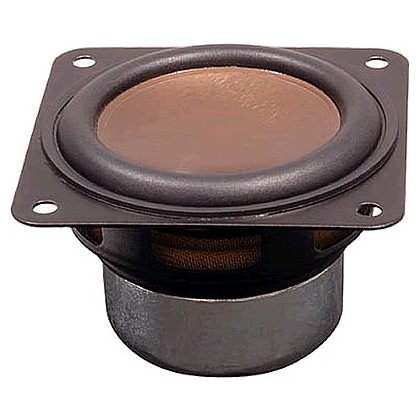

HiVi SWANS B2S Speaker Driver Full Range Aluminium Shielded 10W 8 Ohm 78dB 150Hz - 15kHz Ø5.1cm

Broadband loudspeaker, ideal for creating a multimedia or home cinema system that combines compactness and performance.

Can also be used as a Medium speaker in a multi-channel configuration.

Ultra rigid cone made up of aluminum and magnesium alloy coated on the surface with a damping material promoting dynamic stability

Mobile Crew wound on Kapton support for betterpowerand greaterresistance to heat

Magnetic motor neodymium

Magnetic shielding authorizing the use of the unit in a Multimedia or Home Theater configuration

Specifications:

• Nominal Impedance:8Ω
• Resonant Frequency: 152Hz
• Rated Power:10W
• Sensitivity (2.83v / 1m): 78dB
• Resistance DC:/ Strong>6.5Ω
• Diameter Coil: 25mm
• Length Coil:6mm
• Mounting Type:Kapton
• Composition Magnetic Circuit: Ferrite
• Magnetic Shielding:/ Strong>Yes
• BL:2.5
• Hey :3.0mm
• XmaX:1.5mm
• Cms:689
• Qms:5.69
• Qes:1.53
• Qts:1.20
• Mms:1.60g
• Sd:0.0013m2
• Vas:0.2L
• Recommended Type of Load: Close
• Recommended Load Volume: 0.2L
• Recommended Cut-Off Frequency -3dB: 149Hz
• Weight:0.12kg

HiVi B2S:Dimensions

HiVi B2S:Frequency Response

HiVi B2S:Impedance Curve
