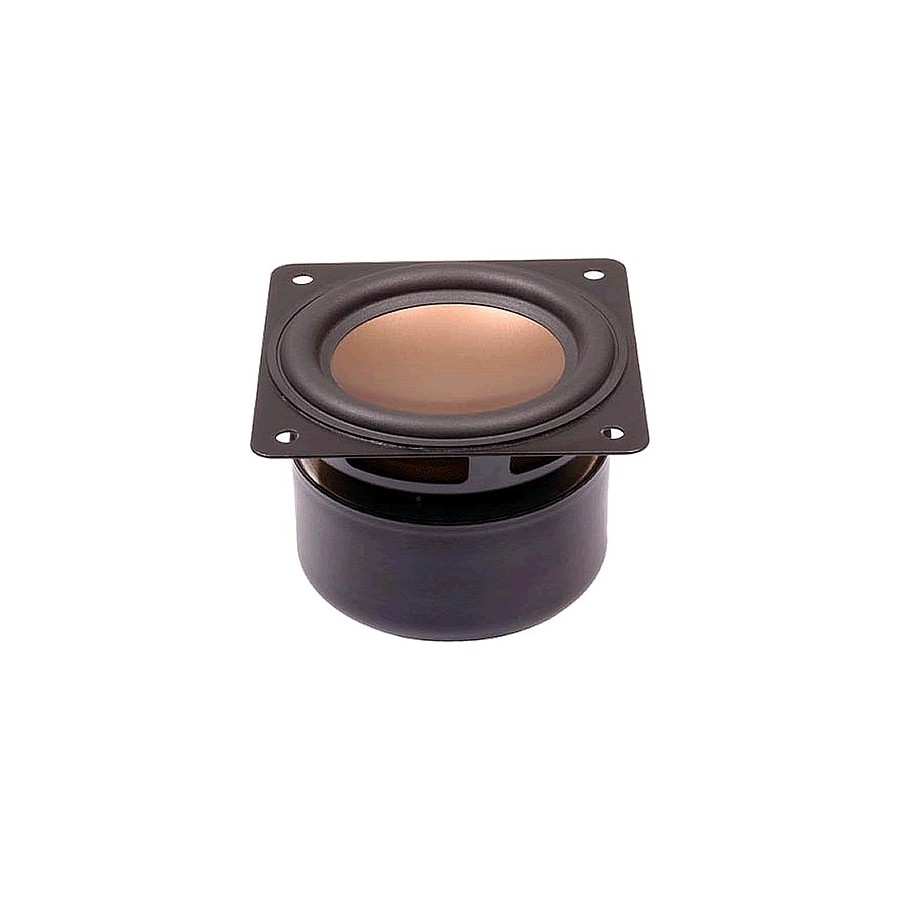

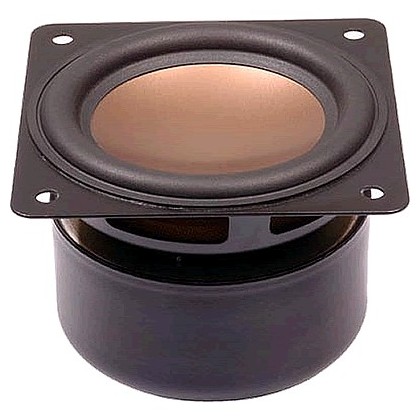

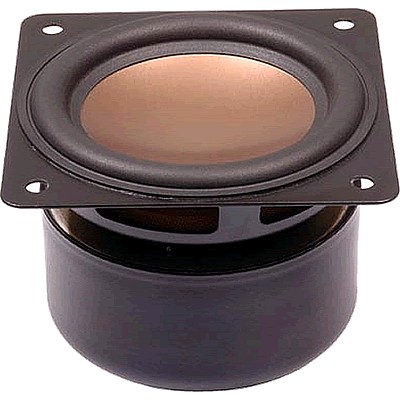

HiVi SWANS B3S Speaker Driver Full Range Aluminum 15W 8 Ohm 82dB 300Hz - 15kHz Ø7.6cm

No customer reviews yet, login to write a review.

By buying this product you get 1 loyalty point


Reference : 4802
New product

19,90 €tax incl.

16,58 € tax excl.
Including 0,30 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

https://www.audiophonics.fr/images2/Swans_Logo.gif

Broadband loudspeaker, ideal for creating a multimedia or home cinema system that combines compactness and performance.

Can also be used as a Medium speaker in a multi-channel configuration.

Ultra rigid cone made up of aluminum and magnesium alloy coated on the surface with a damping material promoting dynamic stability

Mobile Crew wound on Kapton support for betterpowerand greaterresistance to heat

Powerful magnetic motor consisting of 2 magnets mounted in symmetrical and ventilated

Magnetic shielding authorizing the use of the unit in a Multimedia or Home Theater configuration

https://www.audiophonics.fr/images2/4802_SWANS-HIVI-B3S_1.jpghttps://www.audiophonics.fr/images2/4802_SWANS-HIVI-B3S_2.jpg


 https://www.audiophonics.fr/images2/4802_SWANS-HIVI-B3S_3.jpg

Specifications:

  • Nominal Impedance:8Ω
  • Resonant Frequency: 80Hz
  • Rated Power:15W
  • Sensitivity (2.83v / 1m): 82dB
  • Resistance DC:/ Strong>6.5Ω
  • Diameter Coil: 20mm
  • Length Coil:9mm
  • Mounting Type:Kapton
  • Composition Magnetic Circuit: Ferrite
  • Magnetic Shielding:/ Strong>Yes
  • BL:2.9
  • Hey :3.0mm
  • XmaX:3.0mm
  • Cms:1260
  • Qms:4.29
  • Qes:1.19
  • Qts:0.93
  • Mms:3.1g
  • Sd:0.0030m2
  • Vas:1.6L
  • Recommended Type of Load: Close
  • Recommended Load Volume: 2L
  • Recommended Cut-Off Frequency -3dB: 80Hz
  • Weight:0.53Kg

https://www.audiophonics.fr/images2/HiVi_Logo.jpg

 https://www.audiophonics.fr/images2/4802_SWANS-HIVI-B3S_4.jpg

HiVi B3S:Dimensions

https://www.audiophonics.fr/images2/4802_SWANS-HIVI-B3S_5.jpg

HiVi B3S:Frequency Response

https://www.audiophonics.fr/images2/4802_SWANS-HIVI-B3S_6.jpg

HiVi B3S:Impedance Curve


Data sheet
Speaker Power (W RMS)15.0
Speaker TypeFull range
Impedance (Ω)8
Loudspeaker diameter (mm)76.0
Diaphragm typeAluminium
Efficiency / Sensitivity (dB)82.0
Max Linear Excursion (Xmax) (mm)3.0
Lowest frequency (Hz)300
Highest frequency (Hz)15000
