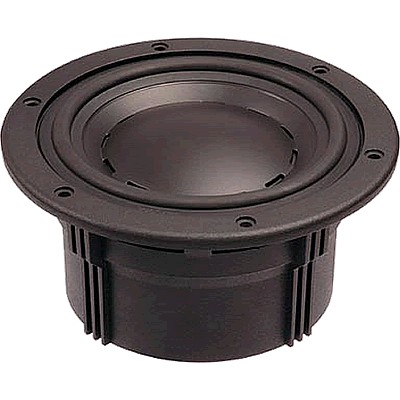

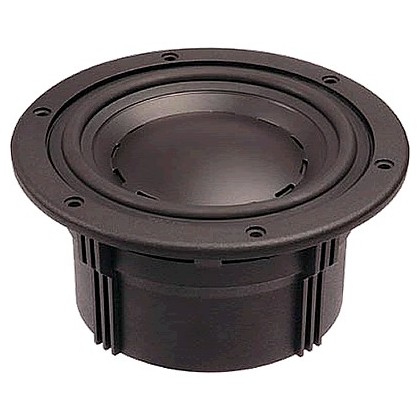

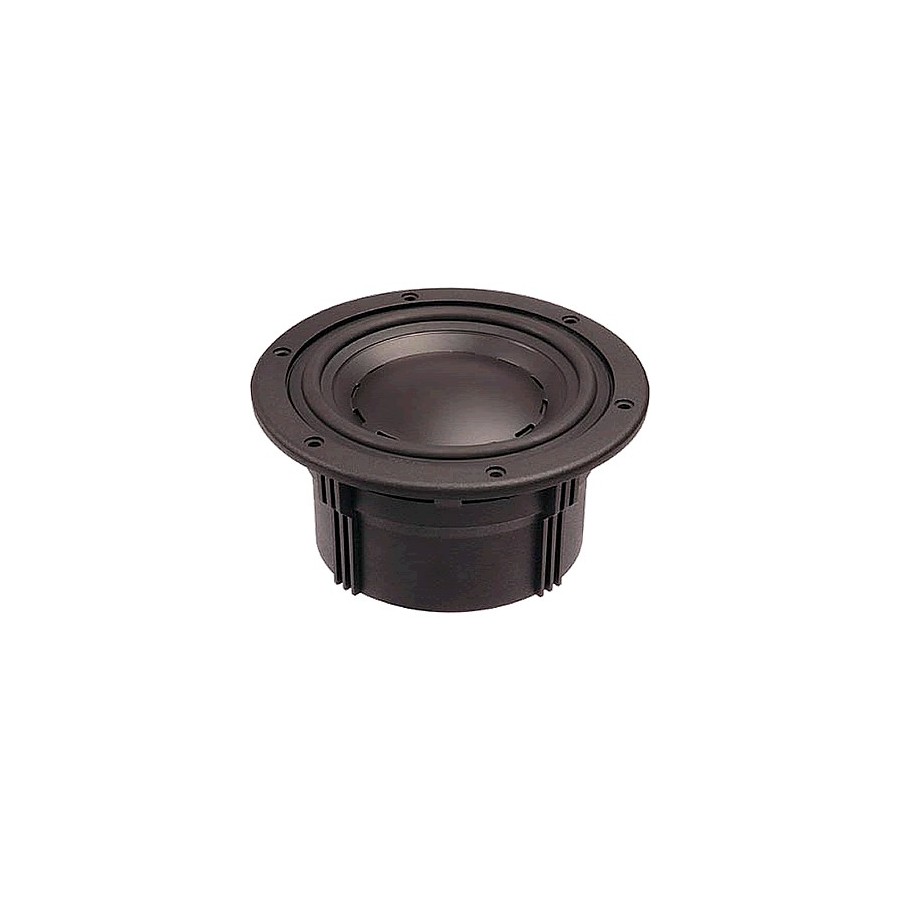

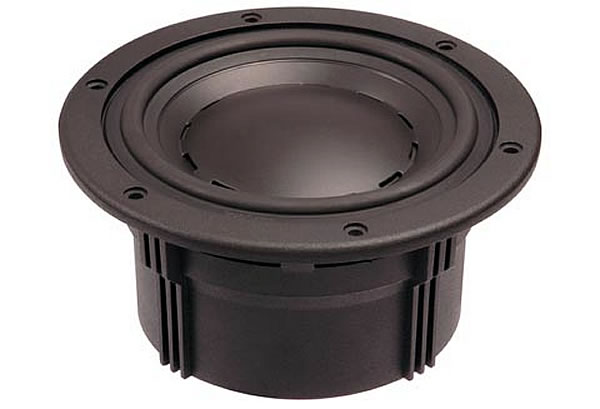

HiVi SWANS D5.8 Speaker Driver Midbass Shielded High Performance 60W 8 Ohm 83dB Ø12.7cm

HiVi's "D" loudspeaker range is a synthesis of all the technological advances made in recent years in the field of electroacoustics.

It is also the expression of the extraordinary know-how of a team of engineers and music lovers resolutely in the forefront.


Injected polypropylene cone of mineral elements in order to densify the structure and improve rigidity.

Peripheral suspension in natural rubberloudspeaker to the loudspeaker, and participating in absorbing parasitic vibrationsoriginating at the surface of the cone

Mobile Crew wound on Kapton support for betterpowerand greaterresistance to heat

Powerful magnetic motor, combination of 2 magnets, one in Neodymium, the other in ceramics, mounted in symmetrical and ventilated

Can be used as a severe / medium unit on a 2-way system , or as a medium loudspeaker on a 3-way system more sophisticated.

Specifications:

• Nominal Impedance:8Ω
• Resonant Frequency: 52Hz
• Rated Power:60W
• Maximum Power Output:120W
• Sensitivity (2.83v / 1m): 83dB
• Resistance DC:/ Strong>6.5Ω
• Diameter Coil: 76mm
• Length Coil:15.5mm
• Mounting Type:Kapton
• Composition Coil:Aluminum Wires Copper Plated
• Composition Magnetic Circuit: Neodymium + Ceramic
• BL:9.0
• Hey :6.0mm
• XmaX:4.8mm
• Cms:522
• Qms:3.07
• Qes:0.42
• Qts:0.37
• Mms:17.3g
• Sd:0.0087m2
• Vas:5.6L
• Recommended Type of Load: Bass Reflex
• Recommended Load Volume: 8L
• Recommended Cut-Off Frequency -3dB: 45Hz
• Weight:1.8Kg

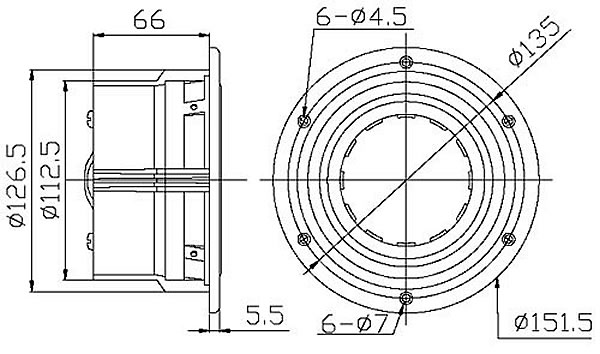

HiVi D5.8:Dimensions

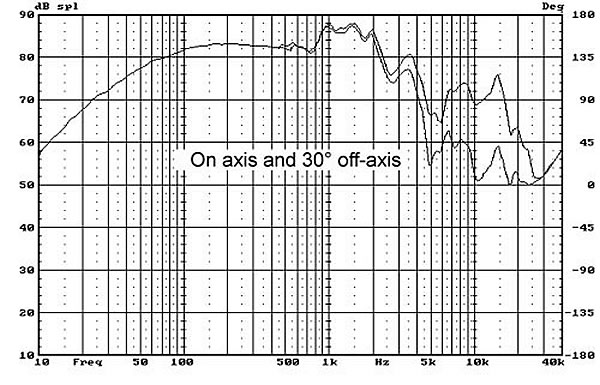

HiVi D5.8:Frequency Response

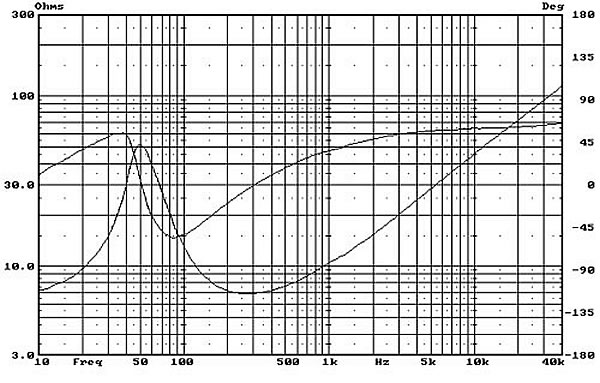

HiVi D5.8:Impedance Curve
