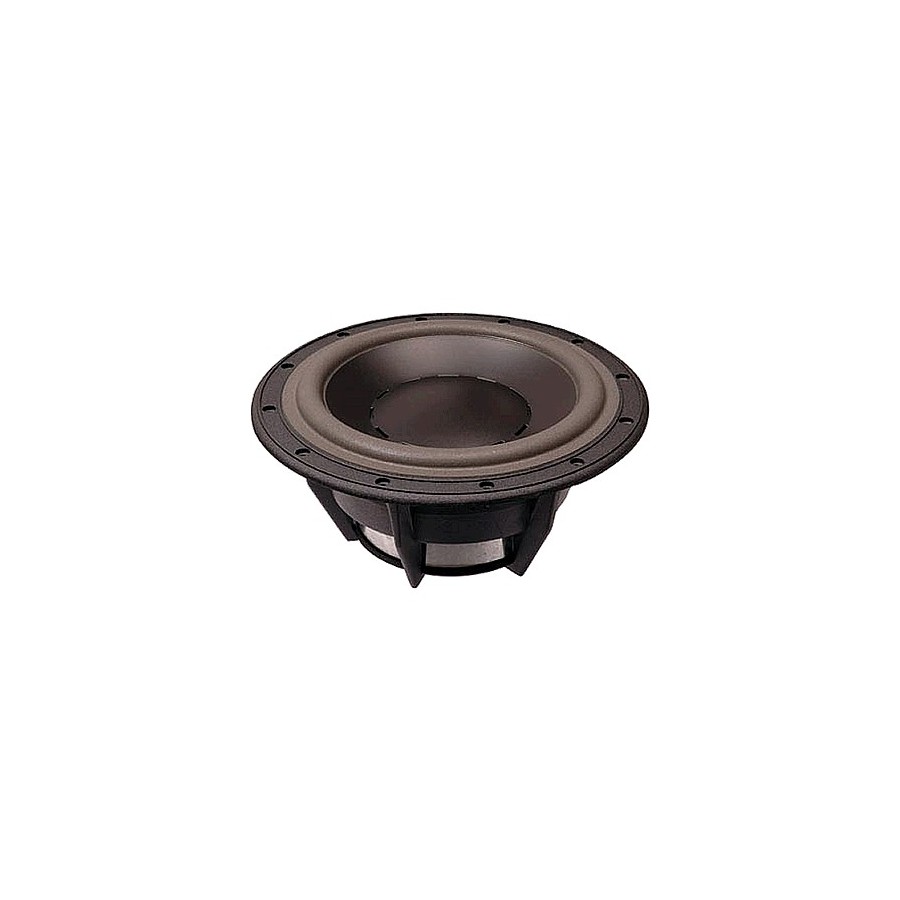

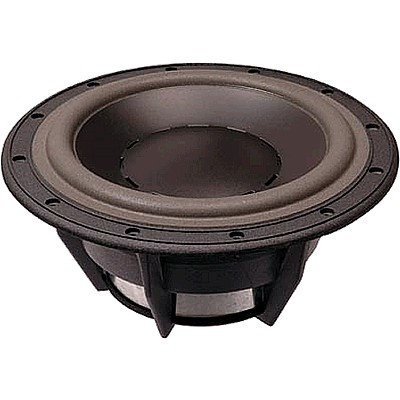

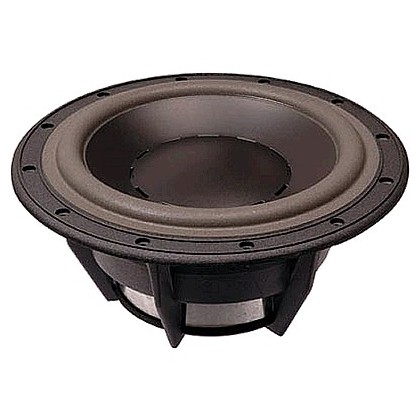

HiVi SWANS D8.8 High Speaker Driver Midbass Shielded 150W 8 Ohm 86dB 40Hz - 2000Hz Ø20.3cm

HiVi's "D" loudspeaker range is a synthesis of all the technological advances made in recent years in the field of electroacoustics.

It is also the expression of the extraordinary know-how of a team of engineers and music lovers resolutely in the forefront.


Injected polypropylene cone of mineral elements in order to densify the structure and improve rigidity.

Peripheral suspension in natural rubberloudspeaker to the loudspeaker, and participating in absorbing parasitic vibrationsoriginating at the surface of the cone

Mobile Crew wound on Kapton support for betterpowerand greaterresistance to heat

Powerful magnetic motor, combination of 2 magnets, one in Neodymium, the other in ceramics, mounted in symmetrical and ventilated

Specifications:

• Nominal Impedance:8Ω
• Resonant Frequency: 32Hz
• Rated Power:150W
• Maximum Power Output:300W
• Sensitivity (2.83v / 1m): 86dB
• Resistance DC:/ Strong>6.5Ω
• Diameter Coil: 100mm
• Length Coil:23.5mm
• Mounting Type:Kapton
• Composition Coil:Aluminum Wires Copper Plated
• Composition Magnetic Circuit: Neodymium + Ceramic
• BL:12.9
• Hey :7.0mm
• XmaX:8.3mm
• Cms:457.8
• Qms:4.36
• Qes:0.44
• Qts:0.40
• Mms:53.1g
• Sd:0.0241m2
• Vas:37.8L
• Recommended Type of Load: Bass Reflex
• Recommended Load Volume: 30L
• Recommended Cut-Off Frequency -3dB: 35Hz
• Weight:3.5Kg

HiVi D8.8:Dimensions

HiVi D8.8:Frequency Response

HiVi D8.8:Impedance Curve
