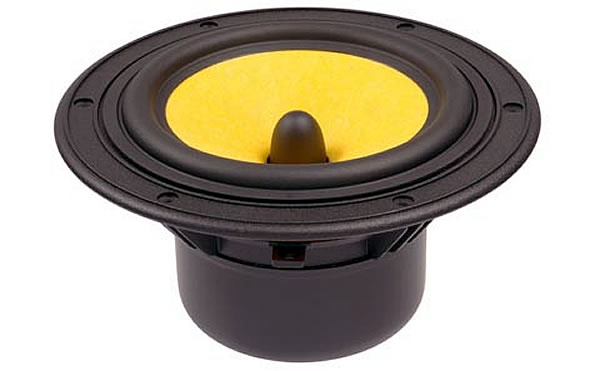

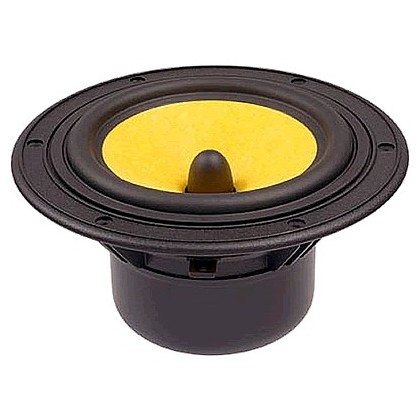

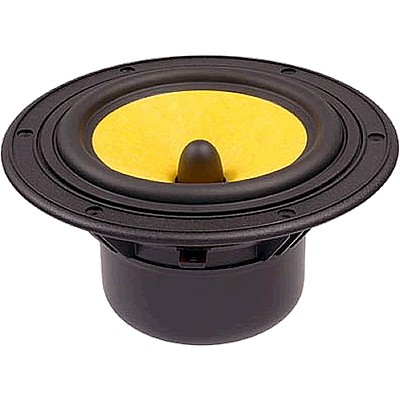

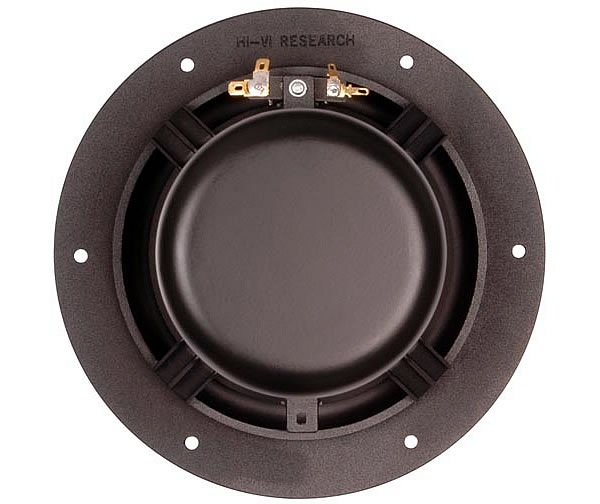

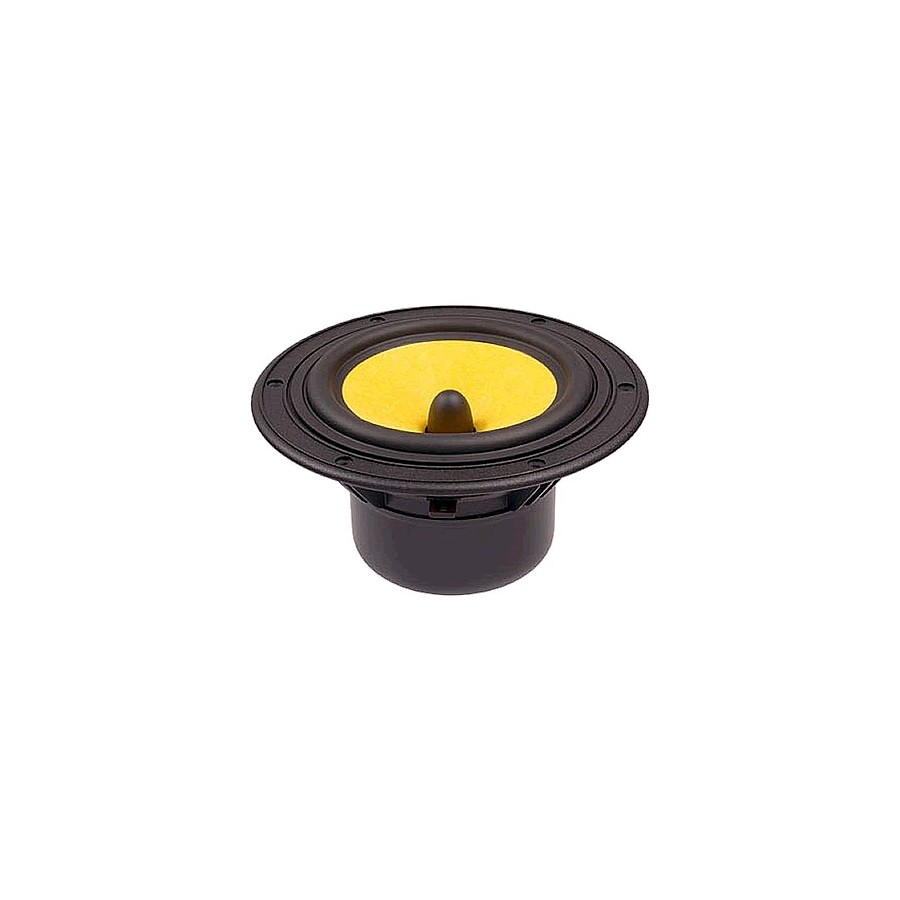

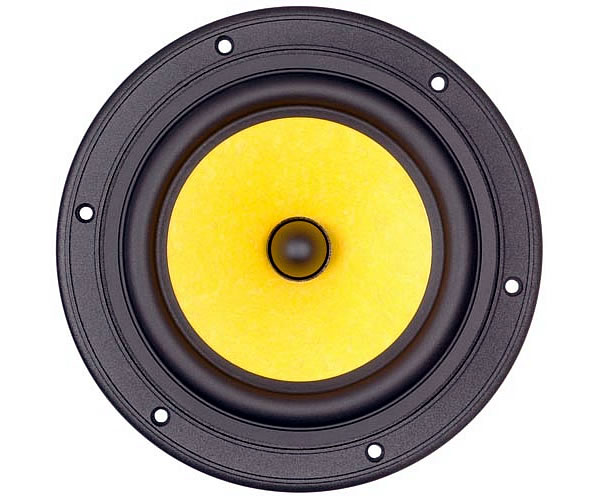

HiVi SWANS F6 Speaker Driver Midbass Kevlar 45W 8 Ohm 88dB Ø16.5cm

HiVi's "F" loudspeaker range is a synthesis of all the technological advances made in the last few years in the field of electroacoustics.

It is also the expression of the extraordinary know-how of a team of engineers and music lovers resolutely in the forefront.


Ultra rigid cone from a learned combination of Kevlar and paper

Peripheral suspension in natural rubberGerman-made loudspeaker system that provides long-lasting loudspeaker performance and absorbing parasitic vibrationsoriginating at the surface of the cone

Mobile Crew wound on Kapton support for betterpowerand greaterresistance to heat

Powerful magnetic motor consisting of 2 magnets mounted in symmetrical and ventilated

Magnetic shielding authorizing the use of the unit in a Multimedia or Home Theater configuration

Can be used as a severe / medium unit on a 2-way system ,or as a medium loudspeaker on a 3-way system more sophisticated.

Specifications:

• Nominal Impedance:8Ω
• Resonant Frequency: 45Hz
• Rated Power:45W
• Maximum Power Output:90W
• Sensitivity (2.83v / 1m): 88dB
• Resistance DC:/ Strong>6.5Ω
• Diameter Coil: 25mm
• Length Coil:14.5mm
• Mounting Type:Kapton
• Composition Magnetic Circuit: Ferrite
• Magnetic Shielding:/ Strong>Yes
• BL:9.0
• Hey :6.0mm
• XmaX:4.3mm
• Cms:658
• Qms:3.91
• Qes:0.38
• Qts:0.35
• Mms:18.3g
• Sd:0.0139m2
• Vas:16.4L
• Recommended Type of Load: Bass Reflex
• Recommended Load Volume: 15L
• Recommended Cut-Off Frequency -3dB: 42Hz
• Weight:2.1kg

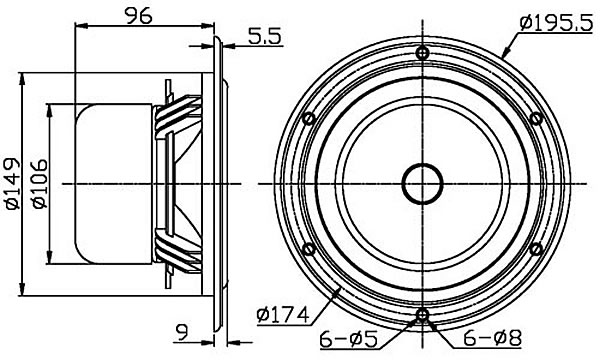

HiVi F6:Dimensions

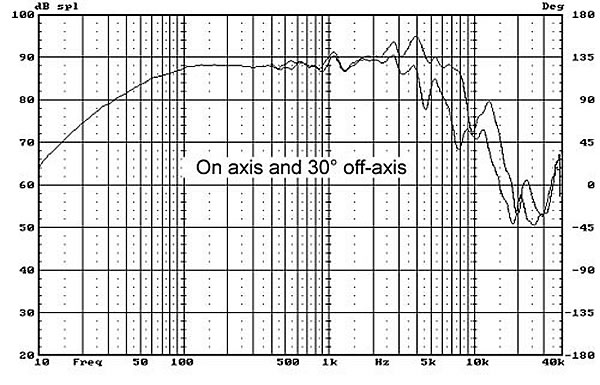

HiVi F6:Frequency Response

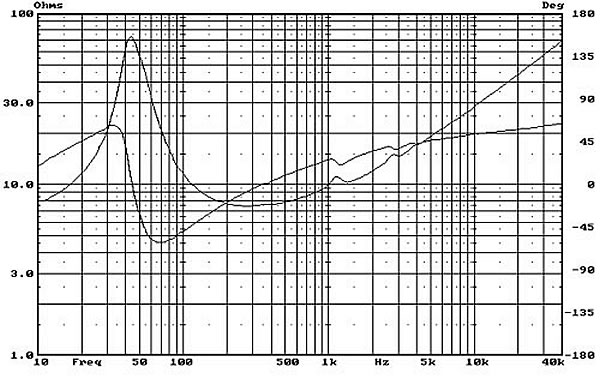

HiVi F6:Impedance Curve
