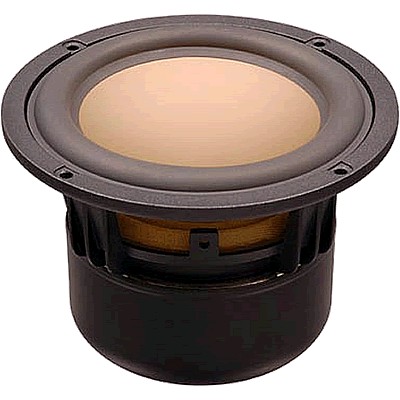

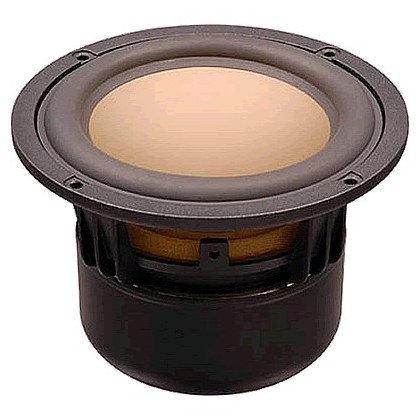

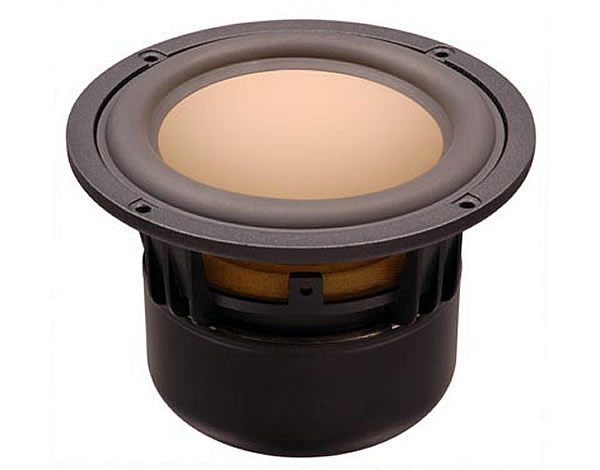

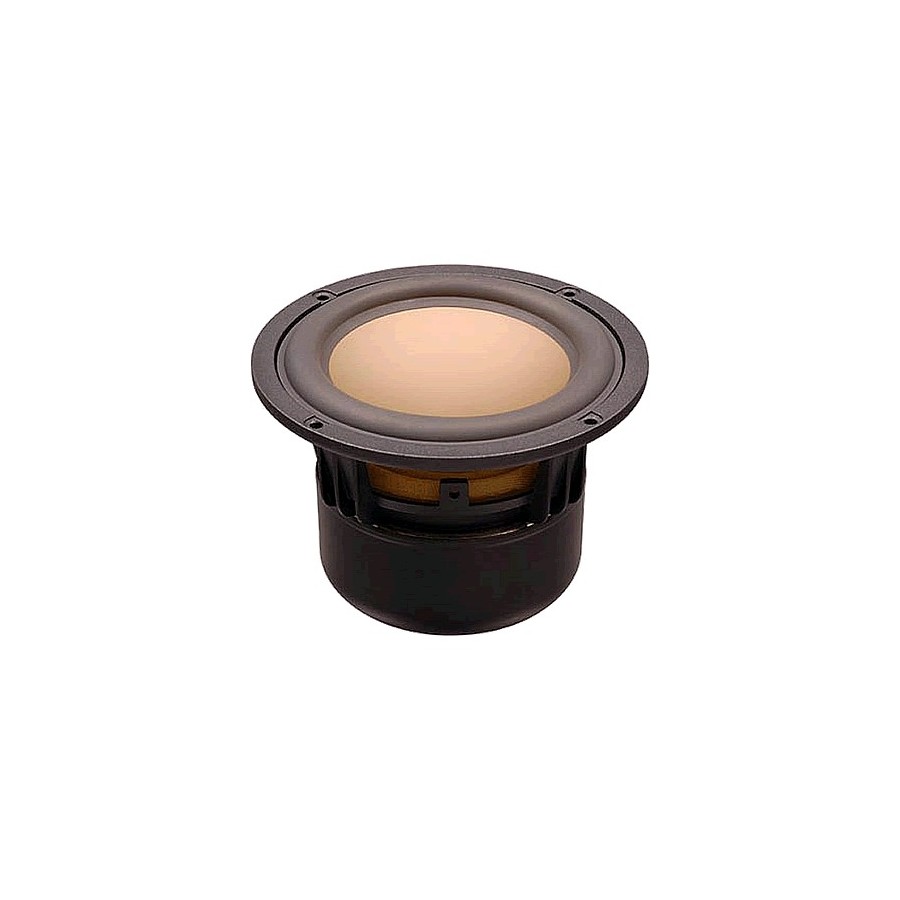

HiVi SWANS M5a Speaker Driver Midbass Aluminum Magnesium 35W 8 Ohm 87dB Ø12.7cm

The "M" series speakers were introduced for the first time through the "DIVA" range of the speaker manufacturer Swans.

The success of this collaboration was immediate, and the speakers were awarded for their exceptional quality / price ratio at the Home Entertainment Show of 2000.


The design of the M5a has been optimized to deep and dynamic exploration of low frequencies in a loadbass-reflex of reduced size .

Ultra rigid cone made of an alloy of aluminum and magnesium coated on the surface with a damping material that promotes dynamic stability

Mobile Crew wound on Kapton support for betterpowerand greaterresistance to heat

Magnetic shielding authorizing the use of the unit in a Multimedia or Home Theater configuration

Can be used as a severe / medium unit on a 2-way system , or as a medium loudspeaker on a 3-way system more sophisticated.

Specifications:

• Nominal Impedance:8Ω
• Resonant Frequency: 48Hz
• Rated Power:35W
• Maximum Power Output:70W
• Sensitivity (2.83v / 1m): 87dB
• Resistance DC:/ Strong>6.5Ω
• Diameter Coil: 25mm
• Length Coil:10.4mm
• Mounting Type:Kapton
• Composition Magnetic Circuit: Ferrite
• Magnetic Shielding:/ Strong>Yes
• BL:7.6
• Hey :5.0mm
• XmaX:2.7mm
• Cms:1038
• Qms:6.71
• Qes:0.36
• Qts:0.34
• Mms:10.8g
• Sd:0.0087m2
• Vas:11.2L
• Recommended Type of Load: Bass Reflex
• Recommended Load Volume: 10L
• Recommended Cut-Off Frequency -3dB: 48Hz
• Weight:1.6kg

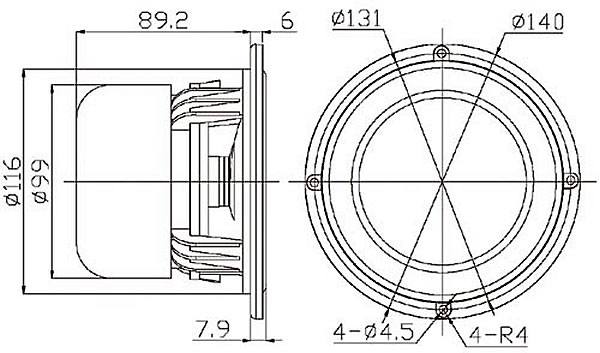

HiVi M5a:Dimensions

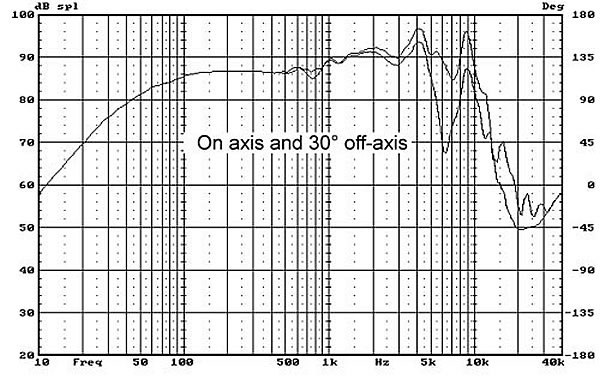

HiVi M5a:Frequency Response

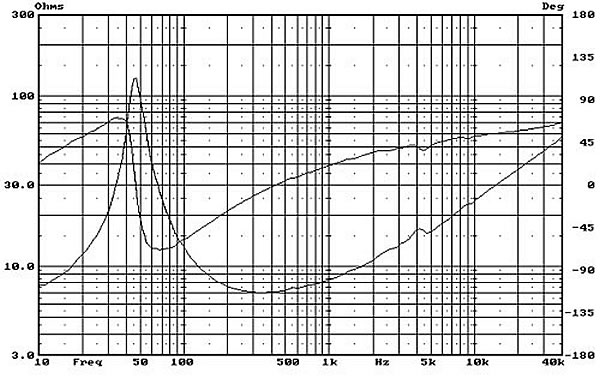

HiVi M5a:Impedance Curve
