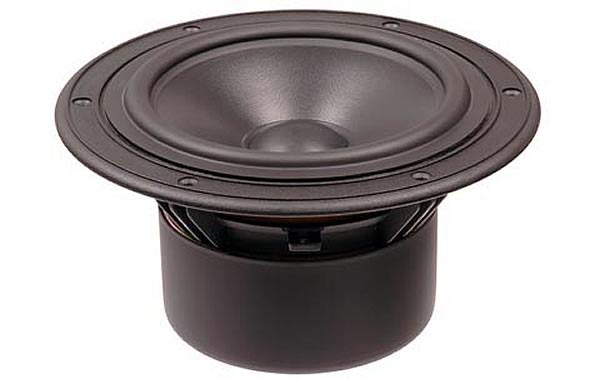

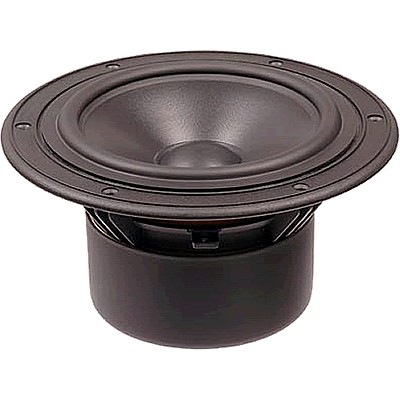

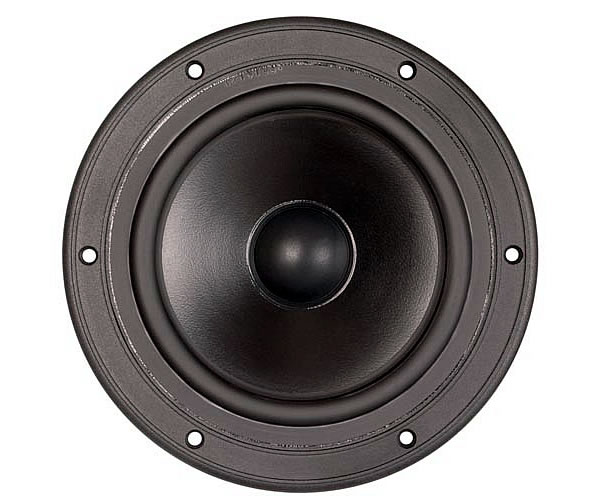

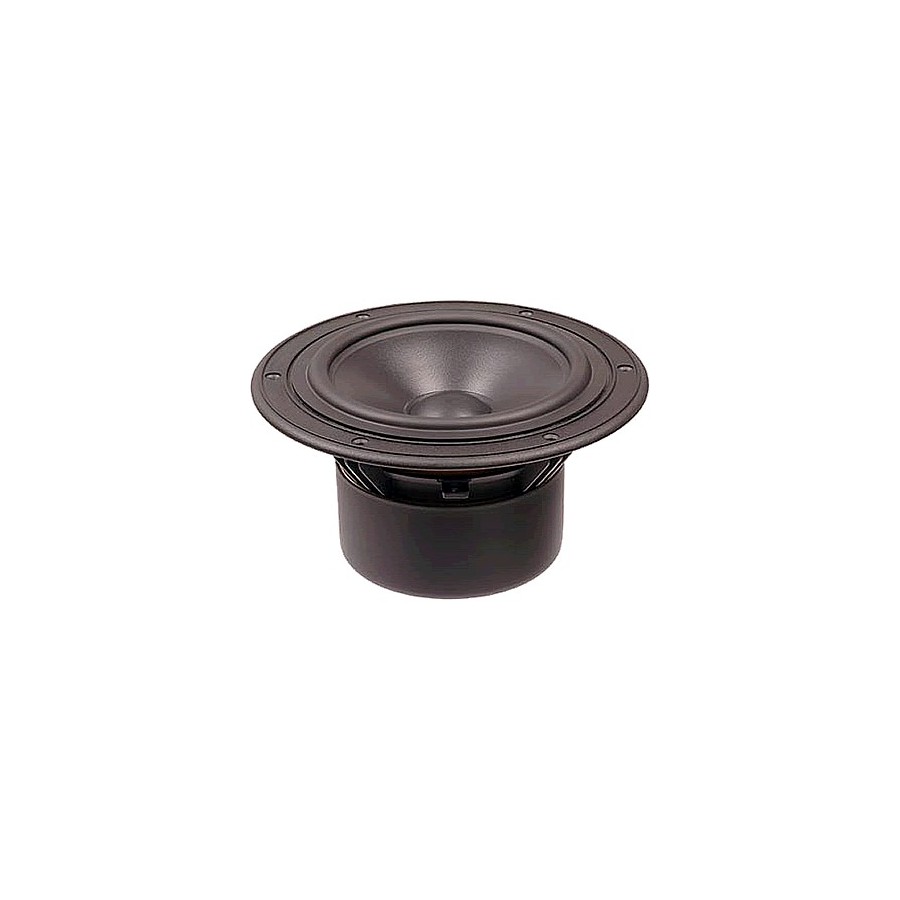

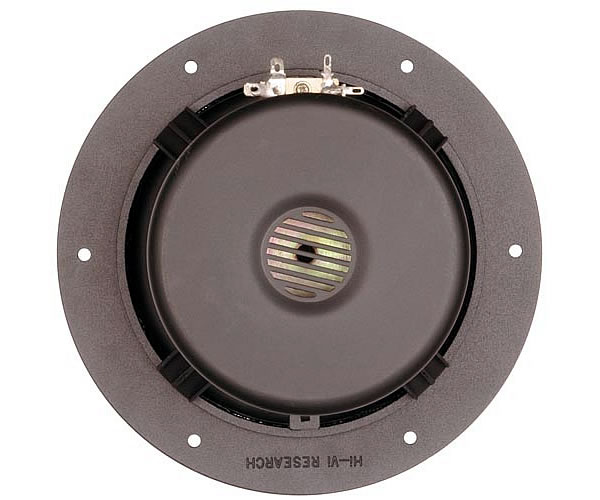

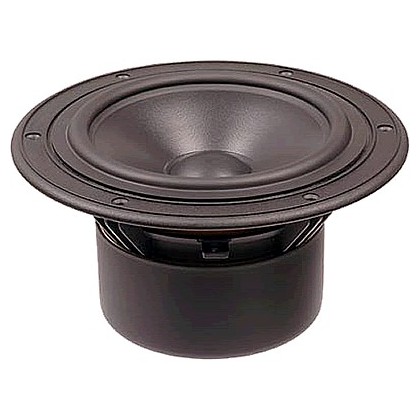

HiVi W6 Speaker Driver Midbass Shielded 45W 8 Ohm 86dB Ø16.5cm

Characterized by their excellent performance / price ratio, and their powerful magnetic armored motor,

the speakers of the "W" series have all the necessary arguments for the construction of an acoustic system dedicated primarily to Multimedia and Home Cinema applications.

Cone in polymer compound covered with PPF film for maximum rigidity and lightness

Peripheral suspension in natural rubberloudspeaker to the loudspeaker, and participating inabsorbing parasitic vibrationsoriginating at the surface of the cone

Mobile Crew wound on Kapton support for betterpowerand greaterresistance to heat

Powerful magnetic motor consisting of 2 magnets mounted in symmetrical and ventilated

Magnetic shielding authorizing the use of the unit in a Multimedia or Home Theater configuration

Specifications:

• Nominal Impedance:8Ω
• Resonant Frequency: 40Hz
• Rated Power:45W
• Maximum Power Output:90W
• Sensitivity (2.83v / 1m): 86dB
• Resistance DC:/ B>6.5Ω
• Diameter Coil: 25mm
• Length Coil:14.5mm
• Mounting Type:Kapton
• Composition Magnetic Circuit: Ferrite
• Magnetic Shielding:/ B>Yes
• BL:6.7
• Hey :6.0mm
• XmaX:4.3mm
• Cms:913
• Qms:3.04
• Qes:0.64
• Qts:0.52
• Mms:17.1g
• Sd:0.0139m2
• Vas:25.1L
• Recommended Type of Load: Bass Reflex
• Recommended Load Volume: 22L
• Recommended Cut-Off Frequency -3dB: 40Hz
• Weight:2.5Kg

HiVi W6:Dimensions

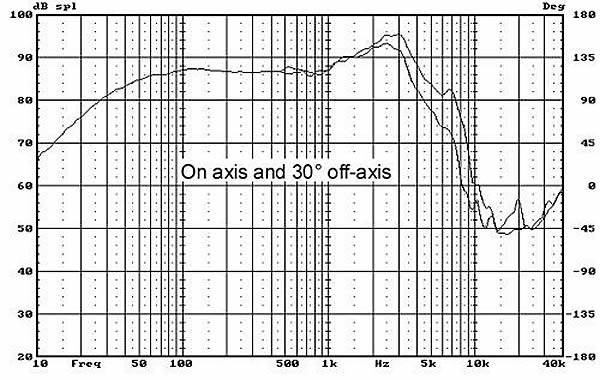

HiVi W6:Frequency Response

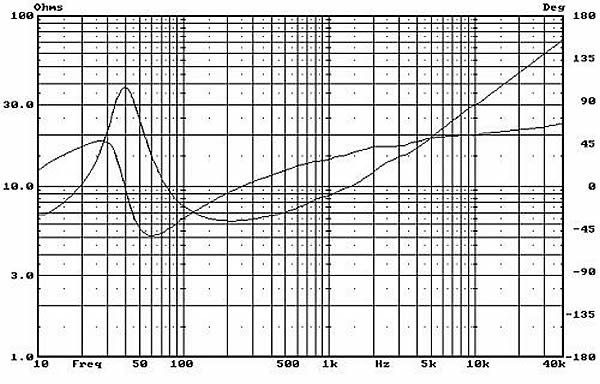

HiVi W6:Impedance Curve
