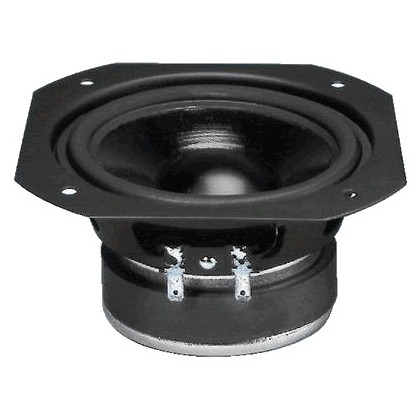

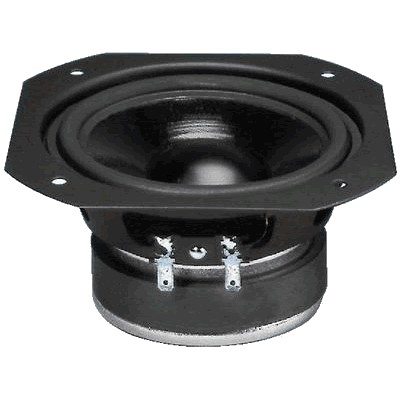

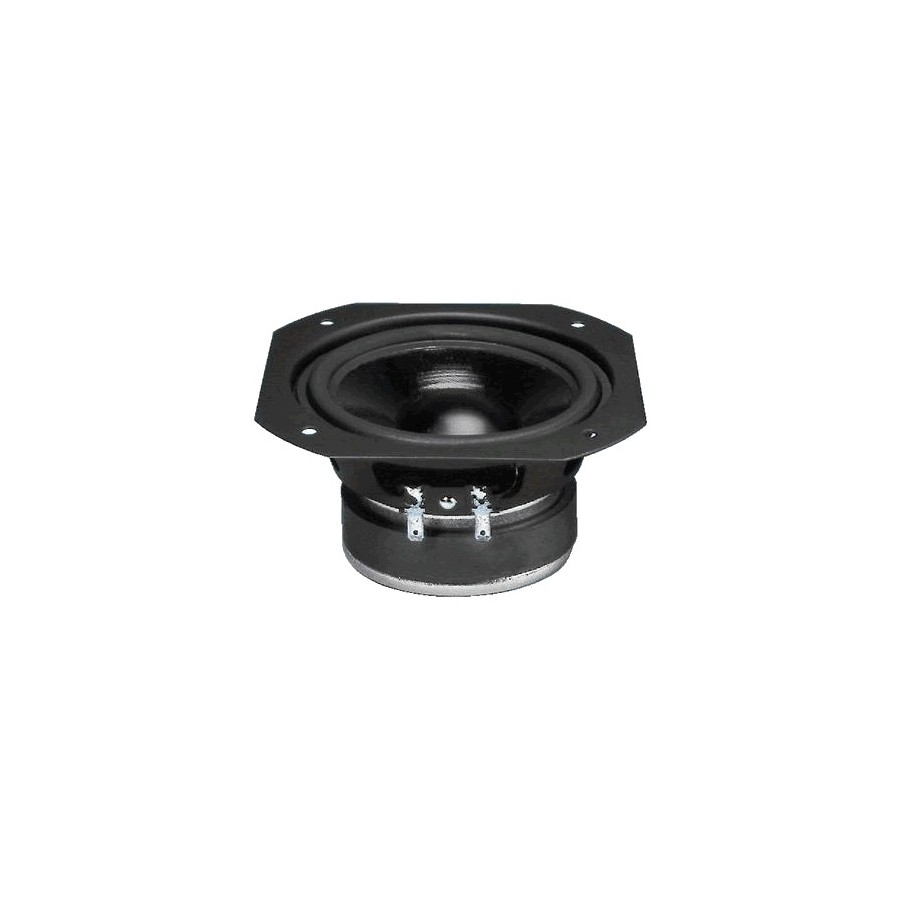

| Bass-midrange speaker, 80 W MAX, 8 Ω Specially coated paper membrane, rubber suspension, the ideal speaker for 2-way library, satellite or Appolito systems, close load or bass-reflex. |
 | Specifications Speakers | ||
 | | ||
| | ||
| Impedance (Z) | | 8 Ω |
| | ||
| Resonance frequency (fs) | | 65 Hz |
| |||
| Maximum bandwidth | | f3-8000 Hz |
| | ||
| Freq. cut. (Fmax). | | 4500 Hz |
| | ||
| Maximum power | | 80 WMAX |
| | ||
| Nominal power (P) | | 50 WRMS |
| | ||
| Pressure sound. (1W / 1m) | | 87 dB |
| | ||
| Compliance susp. (Cms) | | 1.33 mm / N |
| | ||
| Movable mass (Mms) | | 4.5 g |
| | ||
| Mechanical resistance (Rms) | | 0.8 kg / s |
| | ||
| Mechanical overvoltage. (Qms) | | 2.23 |
| | ||
| Electrical overvoltage (Qes) | | 0.47 |
| | ||
| Fact. total overvoltage (Qts) | | 0.39 |
| | ||
| Volume equ. (VAS) | | 5.5 l |
| | ||
| DC resistance. (Re) | | 5.8 Ω |
| |||
| Inductance coil. (The) | | 0.3 mH |
| | ||
| Coil diameter | | 25 mm |
| | ||
| Coil support | | Alu |
| | ||
| Height of winding | | 9 mm |
| | ||
| Height gap | | 6 mm |
| | ||
| Linear Excursion (X MAX) | | ± 1.5 mm |
| | ||
| Transmitting surface (Sd) | | 55 cm2 |
| | ||
| Flight. air displaced (Vd) | 8.3 cm3 | |
| | ||
| Force factor (BxL) | | 4.8 Tm |
| | ||
| Ref. (No) | | 0.3% |
| | ||
| Magnet diameter | | 72 mm |
| | ||
| Magnet weight | | 8 oz. |
| | ||
| cutting | | Ø 101 mm |
| | ||
| Mounting depth | | 58 mm |
| | ||
| dimensions | | 115 x 115 mm |
| | ||
| Weight | | 0.65 kg |
| | ||
| Recommended Min Volume | | |
| | ||
| closed | | 2.5 l |
| | ||
| bass reflex | | 5.5 l |
| | ||
| | ||
|
| Speaker Power (W RMS) | 50.0 |
| Speaker Type | Midbass |
| Impedance (Ω) | 8 |
| Efficiency / Sensitivity (dB) | 87.0 |
| Max Linear Excursion (Xmax) (mm) | 1.5 |
| Highest frequency (Hz) | 8000 |
