VISATON FRWS 5 Speaker Driver Full Range 4W 8 Ohm 84dB 150Hz-20kHz Ø5cm
The Visaton FRWS 5 is a full range speaker with a diameter of 5cm and a square front panel. It offers a balanced frequency response above 250Hz with accurate highs and an omnidirectional sound distribution. It can be used as a midrange driver in floorstanding loudspeakers, but will also find its place in many other audio projects.
No customer reviews yet, login to write a review.
By buying this product you get 1 loyalty point
Reference : 16612
New product
![[GRADE A] AUNE S9C PRO DAC 2x ES9068AS Discreet Headphone Amplifier 5W Bluetooth 32bit 768kHz DSD512 MQA Back](https://www.audiophonics.fr/64487-thumb_default/aune-s9c-pro-dac-2x-es9068as-discreet-headphone-amplifier-5w-bluetooth-32bit-768khz-dsd512-mqa-back.jpg)
![[GRADE A] Mono Power Amplifier Modules LM3886 with Heatsinks 2x120W / 8 Ohm (Pair)](https://www.audiophonics.fr/64212-thumb_default/mono-power-amplifier-modules-lm3886-2x120w-8-ohm-pair.jpg)

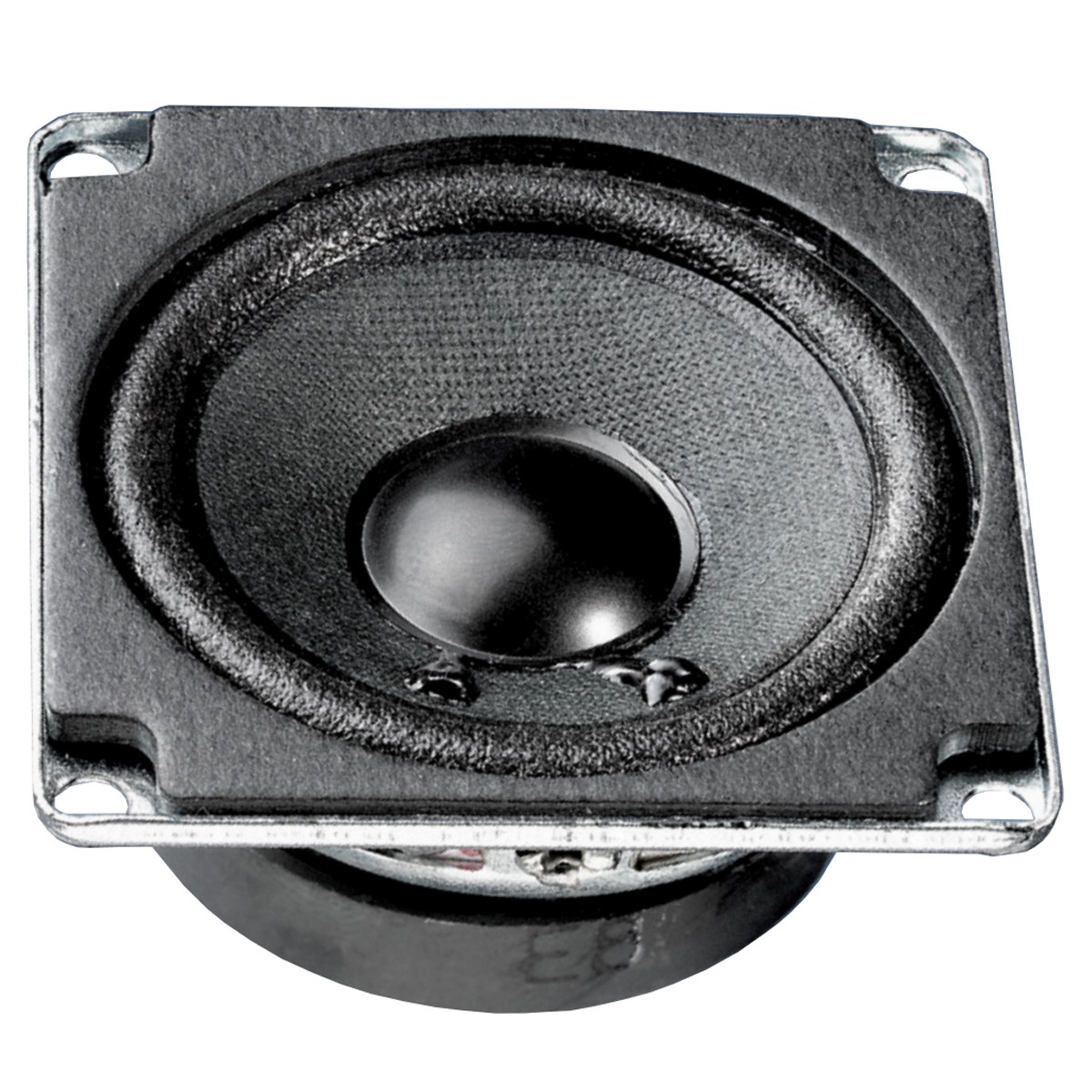

Visaton FRWS 5
Speaker Driver Full Range 4W 8Ω 84dB 150Hz-20kHz Ø5cm
The Visaton FRWS 5 is a full range speaker with a diameter of 5cm and a square front panel. It offers a balanced frequency response above 250Hz with accurate highs and an omnidirectional sound distribution. It can be used as a midrange driver in floorstanding loudspeakers, but will also find its place in many other audio projects.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Speaker driver |
| Speaker driver type | Full range |
| Handling power | RMS : 4W Max : 10W |
| Impedance | 8Ω |
| Frequency response | 150Hz - 20kHz |
| SPL | 84dB (1W/1m) |
| Linear excursion | ±2mm |
| Resonant frequency | 250Hz |
| Front panel thickness | 2mm |
| Voice coil diameter | Ø14mm |
| Winding haight | 2.7mm |
| Cutout diameter | Ø45mm |
| Weight | 100g |
| Speaker Power (W RMS) | 4.0 |
| Speaker Type | Full range |
| Impedance (Ω) | 8 |
| Loudspeaker diameter (mm) | 50.0 |
| Diaphragm type | N/A |
| Efficiency / Sensitivity (dB) | 84.0 |
| Max Linear Excursion (Xmax) (mm) | 2.0 |
| Lowest frequency (Hz) | 150 |
| Highest frequency (Hz) | 20000 |
