EVERSOLO H2 Balanced DAC Portable Headphone Amplifier ES9038Q2M 32bit 768kHz DSD512

EVERSOLO offers with the H2 a balanced DAC and portable headphone amplifier combo wich is compact and powerful. With a USB-C input, it is an ideal companion for use with a current smartphone. It incorporates a classic 3.5mm Jack output as well as a balanced 2.5mm Jack output compatible with the majority of your listening devices.

Average votes for this product
4.7 / 5

By buying this product you get 8 loyalty points


Reference : 17508
New product

85,00 €tax incl.

70,83 € tax excl.
Including 0,05 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

EVERSOLO H2

  Balanced DAC Portable Headphone Amplifier ES9038Q2M 32bit 768kHz DSD512

EVERSOLO H2 DAC Symétrique Amplificateur Casque Portable ES9038Q2M 32bit 768kHz DSD512

EVERSOLO offers with the H2 a balanced DAC and portable headphone amplifier combo wich is compact and powerful. With a USB-C input, it is an ideal companion for use with a current smartphone. It incorporates a classic 3.5mm Jack output as well as a balanced 2.5mm Jack output compatible with the majority of your listening devices.

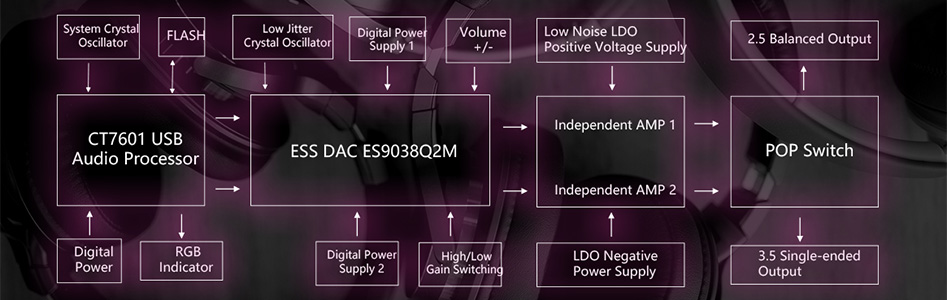

Circuits that are both collaborative and independent

The amplification and decoding circuits, both collaborative and independent, guarantee high audio performance for a very qualitative sound reproduction.

In addition to an ES9038Q2M DAC chip, the EVERSOLO H2 is equipped with two RT1238 amplifier chips which greatly reduce distortion while allowing a considerable output power up to 200mV. On the USB interface side, the H2 embeds a CT7601 audio processor supporting very high quality audio formats and integrating dual clock crystal oscillators.

The EVERSOLO H2 is the result of rigorous work on circuit design with a selection of handpicked materials. The PCB signal circuit is processed with anti-interference technology and immersion-gold PCB. The professional audio calibration increases the technical performance of this Headphone Amplifier DAC.

EVERSOLO H2 DAC Symétrique Amplificateur Casque Portable ES9038Q2M 32bit 768kHz DSD512

HI-RES certification

The HI-Res Audio certification guarantees a listening quality superior to that of MP3 and CD, that is to say that this is a guarantee of a level of quality of high fidelity digital audio reproduction superior to the current standard.

EVERSOLO H2 DAC Symétrique Amplificateur Casque Portable ES9038Q2M 32bit 768kHz DSD512
EVERSOLO H2 DAC Symétrique Amplificateur Casque Portable ES9038Q2M 32bit 768kHz DSD512

An ES9038Q2M DAC chip for superior quality

The digital/analog conversion stage uses an ES9038Q2M DAC chip. This ensures good sound resolution and low distortion. It also allows low energy consumption, noise reduction and an SNR up to 121dB.

In addition, it supports high resolution audio streams, up to PCM 32bit 768kHz (WAV, APE, FLAC) and DSD512 (DFF/ASCD ISO, DSF).


LDO integrated circuit (low noise) and low energy consumption

The LDO allows the amplification circuit to deliver high current and reduce noise close to 0dB for pure sound.

Power consumption control allows the EVERSOLO H2 to avoid overheating. When no headphones are inserted the decoding circuit is automatically disabled, so this also preserves the battery of your telephone for example.

EVERSOLO H2 DAC Symétrique Amplificateur Casque Portable ES9038Q2M 32bit 768kHz DSD512
EVERSOLO H2 DAC Symétrique Amplificateur Casque Portable ES9038Q2M 32bit 768kHz DSD512

Classic connectors (USB-C / 3.5mm Jack) and a 2.5mm Balanced Jack output

Thanks to its USB C type input and the support of the UAC 2.0 protocol, the EVERSOLO H2 does not require any reader to be installed and allows Plug and Play on most of your devices (telephones, tablets and computers).

The 3.5mm headphone output jack is gold-plated, which helps ensure reliable connection and strong resistance to oxidation. In addition, there is a balanced 2.5mm Jack output for higher performance and sound quality.

Due to the power restriction of the iPhone and the power required by the H2 the sound may be altered at maximum volume.

In addition, a driver must be installed for windows.

A compact and multifunctional design

The compact case is entirely made of aluminum and avoids any electromagnetic interference that may come from the outside.

In addition, the volume can be adjusted manually using two buttons integrated into the case. These two buttons pressed simultaneously or successively can also be used to select the High/Low Gain modes.

We will also note the presence of an intuitive multicolor RGB indicator that can detect audio file formats and display 5 colors accordingly:

    • Red = standby
    • Green = DSD Native (low gain mode)
    • Blue = PCM (low gain mode)
    • Yellow = DSD Native (High gain mode)
    • White = PCM (High gain mode)
EVERSOLO H2 DAC Symétrique Amplificateur Casque Portable ES9038Q2M 32bit 768kHz DSD512

ERVERSOLO H2 test by ON-Mag

"With its latest creation, the Eversolo H2 USB-C DAC/headphone amplifier, the brand continues on its audiophile path, as imperturbable as it is pragmatic. Even if it's not totally perfect, the device largely meets expectations and represents excellent quality for the price."

Technical characteristics

Specifications
Product typeBalanced DAC and headphone amplifier
DAC ChipESS ES9030Q2M
Operationnal AmpRT6863D
Input1x USB-C
Outputs1x Jack 3.5mm Unbalanced
1x Jack 2.5mm Balanced
Outputs powerUnbalanced : 13mW @ 300Ω / 31mV @ 32
Balanced : 53mW @ 300Ω / 125mV @ 32
Supported sampling ratesPCM : 32bit 768kHz
DSD : DSD512
Frequency responseUnbalanced : +0.4dB (20Hz-20kHz)
Balanced : +0.4dB (20Hz-20kHz)
THD+NUnbalanced :  -104dB (0.0008% @1kHz)
Balanced : -106dB (0.0005% @1kHz)
SNRUnbalanced : 117dB @1kHz
Balanced : 121dB @1kHz
General
Dimensions61.5 x 22 x 12mm
weight17g
Body materialAluminium
ColorGrey
Package1x EVERSOLO H2
1x USB-C to USB-C cable
1x USB-C to USB-A Adaptator

Data sheet
InputUSB
OutputJack 3.5mm
OutputJack 2.5mm
DAC / ADC ChipES9038Q2M
Max sampling rateDSD512
Max sampling rate768kHz
ColorBlack
ClassN/A
NetworkingNo
Remote ControlNo
