HIDIZS S9 PRO Portable Headphone Amplifier DAC ES9038Q2M Balanced 32bit 768kHz DSD512

Hidizs offers with its S9 Pro a revised version of the already excellent S9. The DAC and portable headphone amplifier combo is now based on the use of a high quality ES9038Q2M conversion chip, for a more than convincing sound restitution, thanks to an incredible precision

Average votes for this product
5.0 / 5

By buying this product you get 10 loyalty points


Reference : 15392
New product

109,00 €tax incl.

90,83 € tax excl.
Including 0,05 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

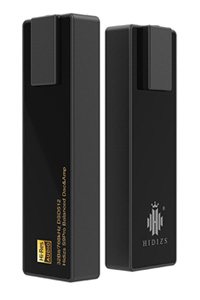

Hidizs S9 Pro

Portable Headphone Amplifier DAC ES9038Q2M Balanced 32bit 768kHz DSD512

Hidizs S9 Pro Amplificateur DAC Portable ES9038Q2M Symétrique 32bit 768kHz DSD512

Hidizs offers with its S9 Pro a revised version of the already excellent S9. The DAC and portable headphone amplifier combo is now based on the use of a high quality ES9038Q2M conversion chip, for a more than convincing sound restitution, thanks to an incredible precision. In addition, the device supports high sampling rates and has a dual balanced and unbalanced output to suit all uses.

Hidizs S9 Pro Amplificateur DAC Portable ES9038Q2M Symétrique 32bit 768kHz DSD512

Hidizs S9 Pro, S9 and S8 comparison

S9 Pro

S9

S8

DAC

ES9038Q2M

AK4493EQ

CS43131

Outputs

Jack 3.5mm + Jack 2.5mm

Jack 3.5mm + Jack 2.5mm

Jack 3.5mm

Light indicator

Yes

Yes

No

Max PCM sampling rate

32bit 768kHz

32bit 768kHz

32bit 384kHz

Max DSD sampling rate

DSD512

DSD512

DSD256

SNR

Jack 3.5mm : 120dB @ 32Ω
Jack 2.5mm : 119dB @ 32Ω

Jack 3.5mm : 119dB @ 32Ω
Jack 2.5mm : 117dB @ 32Ω

120dB

Channel separation

Jack 3.5mm : 80dB @ 32Ω
Jack 2.5mm : 118dB @ 32Ω

Jack 3.5mm : 79dB @ 32Ω
Jack 2.5mm : 114dB @ 32Ω

78dB @ 32Ω

THD+N

Jack 3.5mm : 0.0006% @ 32Ω
Jack 2.5mm : 0.0012% @ 32Ω

Jack 3.5mm : 0.0018% @ 32Ω
Jack 2.5mm : 0.006% @ 32Ω

0.002% @ 1kHz

Output power

Jack 3.5mm : 100mW @ 32Ω
Jack 2.5mm : 200mW @ 32Ω

Jack 3.5mm : 90mW @ 32Ω
Jack 2.5mm : 120mW @ 32Ω

-

Hidizs S9 Pro Amplificateur DAC Portable ES9038Q2M Symétrique 32bit 768kHz DSD512

ES9038Q2M DAC

Comparison Hidizs S9 Pro, S9 and S8

PCM up to 32bit 768kHz

Hi-Res certified, the S9 Pro supports high sampling rates. It can read PCM files up to 32bit 768kHz.

Hidizs S9 Pro Amplificateur DAC Portable ES9038Q2M Symétrique 32bit 768kHz DSD512
Hidizs S9 Pro Amplificateur DAC Portable ES9038Q2M Symétrique 32bit 768kHz DSD512

Native DSD up to DSD512

In the same way, the S9 Pro also supports Native DSD. It will allow you to enjoy your files up to DSD512.

Jack 3.5mm & Jack 2.5mm outputs

The S9 Pro is equipped with a double headphone output. There is a 3.5mm unbalanced jack and a 2.5mm balanced jack. Therefore, whatever the headphones used, the S9 Pro will be able to accompany your listening sessions with ease.

Hidizs S9 Pro Amplificateur DAC Portable ES9038Q2M Symétrique 32bit 768kHz DSD512
Hidizs S9 Pro Amplificateur DAC Portable ES9038Q2M Symétrique 32bit 768kHz DSD512

Light indicator

The body of the S9 Pro is dressed with an LED indicator, hidden under the logo of the brand. It changes color to indicate the sampling rate of the file being played.

  • Yellow : DSD64/128
  • Purple : DSD256/512
  • Blue : PCM 176.4/192kHz
  • Red : PCM 352.8/384kHz
  • White : PCM 705.6/768kHz
  • Green : PCM 44.1/48/88.2/96kHz

Comfortable output power

The Hidizs S9 Pro benefits from an output stage allowing it to develop a comfortable power to feed many headphones of the market. Thus, its unbalanced output on Jack 3.5mm allows to take advantage of a power of 100mW, where its balanced output Jack 2.5mm develops 200mW.

Robust and design aluminum body

All the components of the S9 Pro are integrated in a beautiful CNC machined aluminum case, both robust and design.

Hidizs S9 Pro Amplificateur DAC Portable ES9038Q2M Symétrique 32bit 768kHz DSD512
Hidizs S9 Pro Amplificateur DAC Portable ES9038Q2M Symétrique 32bit 768kHz DSD512 Hidizs S9 Pro Amplificateur DAC Portable ES9038Q2M Symétrique 32bit 768kHz DSD512

Technical characteristics

Specifications
Product typePortable headphone amplifier and DAC
DAC ChipESS ES9038Q2M
Supported sampling ratesPCM up to 32bit 768kHz
Native DSD up to DSD512
Input1x USB-C
Outputs1x Single-ended Jack 3.5mm
1x Balanced Jack 2.5mm
Compatible OSWindows, Mac OS, iPad OS, Android, iOS (avec câble Lightning OTG)
Recommanded headphone impedance8-300Ω
Single-ended headphone output
Output power100mW @ 32Ω
Frequency response20Hz - 50kHz
SNR120dB @ 32Ω
Channel separation80dB @ 32Ω
THD+N0.0012% @ 32Ω
Balanced headphone output
Output power200mW @ 32Ω
Frequency response20Hz - 50kHz
SNR119dB @ 32Ω
Channel separation118dB @ 32Ω
THD+N0.0006% @ 32Ω
General
Body materialCNC machined aluminum
Dimensions59 x 18 x 8mm
Weight11g
Package1x Hidizs S9 Pro
1x USB-C Cable
1x USB-C to USB-A adapter
1x Rear clip

Data sheet
InputUSB
OutputJack 3.5mm
OutputJack 2.5mm
DAC / ADC ChipES9038Q2M
Max sampling rate768kHz
Max sampling rateDSD512
ColorBlack
ClassClass D / T
NetworkingNo
Remote ControlNo
