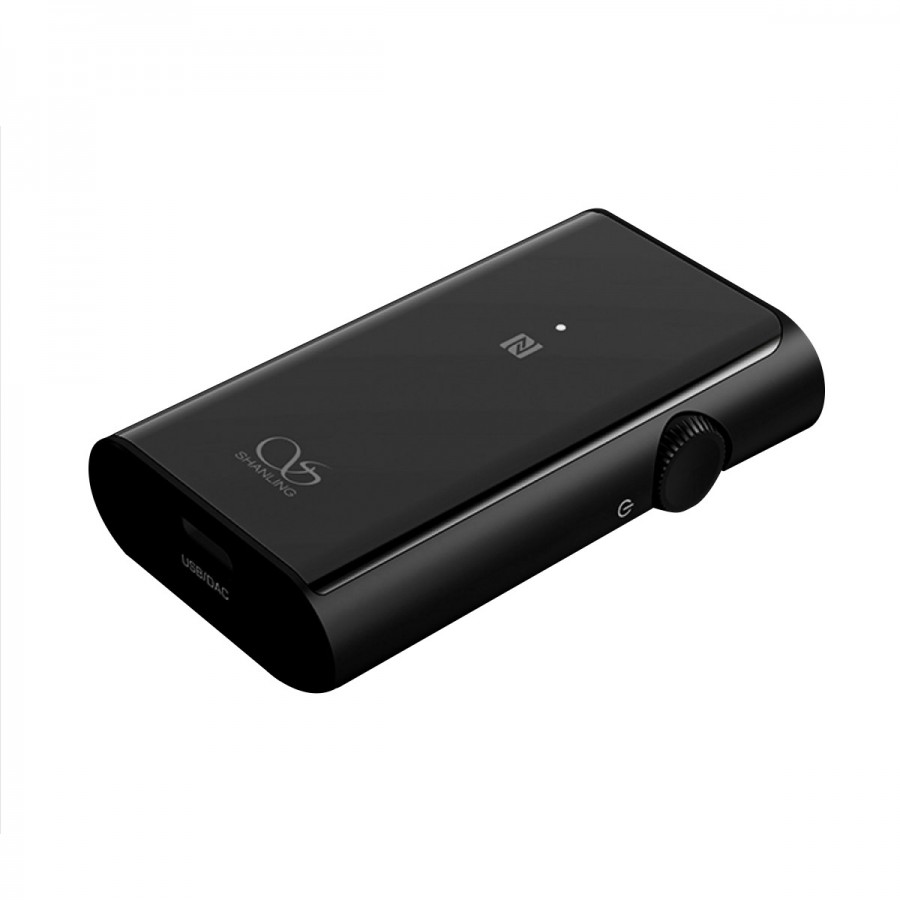

SHANLING UP4 Portable Headphone Amplifier DAC Balanced 2x ES9218P Bluetooth 5.0 CSR8675

Compact, affordable, yet high-performance, the Shanling UP4 is a DAC combo and portable symmetrical headset amplifier with Bluetooth 5.0 connectivity. It will accompany your smartphone or DAP to reveal its full potential, wherever you are.

Average votes for this product
4.5 / 5

By buying this product you get 8 loyalty points


Reference : 15021
New product

89,00 €tax incl.

74,17 € tax excl.

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

This product has been replaced by the new version, the SHANLING UP4 2022 Portable DAC 2x ES9219C.

Shanling UP4

Portable Headphone Amplifier DAC Balanced 2x ES9218P Bluetooth 5.0 CSR8675

Shanling UP4 Amplificateur Casque DAC Portable Symétrique 2x ES9218P Bluetooth 5.0 CSR8675

Compact, affordable, yet high-performance, the Shanling UP4 is a DAC combo and portable symmetrical headset amplifier with Bluetooth 5.0 connectivity. It will accompany your smartphone or DAP to reveal its full potential, wherever you are.

Shanling UP4 Amplificateur Casque DAC Portable Symétrique 2x ES9218P Bluetooth 5.0 CSR8675
Shanling UP4 Amplificateur Casque DAC Portable Symétrique 2x ES9218P Bluetooth 5.0 CSR8675

Ultimate Connectivity

The UP4's high-performance Bluetooth 5.0 connectivity is compatible with the standard AAC and SBC codecs, as well as the high-definition codecs aptX, aptX HD, aptX LL, HWA LHDC and LDAC. These last codecs enable high-quality audio transmission that can match or exceed CD quality in wireless applications. The UP4 benefits from the dual certification of Hi-Res Audio and Hi-Res Audio Wireless.

On its front panel, an LED indicator displays in real time the transmission codec used.

  • LDAC : Green
  • aptX / aptX LL : Violet
  • SBC : Blue
  • HWA : White
  • aptX HD : Yellow
  • AAC : Cyan

ES9218P Dual DAC / Amplifier

At the heart of the Shanling UP4 are two ESS Sabre ES9218P chips. The latter, which are responsible for both digital/analog conversion and signal amplification, provide a clear and detailed reproduction, while developing considerable power with a low output impedance. One chip is used for each channel.

In addition, the UP4 can also be used with a computer in USB DAC mode. Once connected via its USB-C connector, the UP4 becomes a very good sound card.

Shanling UP4 Amplificateur Casque DAC Portable Symétrique 2x ES9218P Bluetooth 5.0 CSR8675

Balanced output

Connect your headphones or earphones to the balanced 2.5mm jack output to enjoy the full potential of the two ES9218P chips. This balanced output provides more power, more detailed sound reproduction, and better channel separation.

Shanling UP4 Amplificateur Casque DAC Portable Symétrique 2x ES9218P Bluetooth 5.0 CSR8675

Gain Control & Digital Filters

The UP4 allows you to simply select a gain level (Low, High and Dual DAC/Boost) and one of four digital filters available. It is thus capable of adapting to your listening and your equipment in an instant.

Shanling UP4 Amplificateur Casque DAC Portable Symétrique 2x ES9218P Bluetooth 5.0 CSR8675
Shanling UP4 Amplificateur Casque DAC Portable Symétrique 2x ES9218P Bluetooth 5.0 CSR8675

Dual DAC Mode

Dual DAC mode allows the UP4 to use its two ES9218P chips to get more output power, even with standard headphones and on its unbalanced 3.5mm jack output.

Bluetooth 5.0

The Bluetooth connectivity of the Shanling UP4 is entrusted to a Qualcomm CSR8675 chip. The latter ensures excellent signal transmission, fast and stable, while minimizing latency and offering better resistance to interference.

Shanling UP4 Amplificateur Casque DAC Portable Symétrique 2x ES9218P Bluetooth 5.0 CSR8675
Shanling UP4 Amplificateur Casque DAC Portable Symétrique 2x ES9218P Bluetooth 5.0 CSR8675

High degree of autonomy

With a battery of 550mAh, the UP4 offers a significant autonomy, allowing long listening without interruption. Thus, it can be used continuously for 15 hours in asymmetrical and 10 hours in symmetrical. In standby, its autonomy is 300h.

High quality microphone

Featuring a high quality, 8th generation Knowles SiSonic microphone, the UP4 will allow you to answer calls received directly on your connected smartphone. Taking advantage of dVc noise cancellation technology, your voice will become clearer and more audible, even in noisy environments.

Shanling UP4 Amplificateur Casque DAC Portable Symétrique 2x ES9218P Bluetooth 5.0 CSR8675

NFC pairing

An NFC chip allows fast pairing of your smartphone to the Shanling UP4. All you need to do is to bring the two devices closer together so that the connection can be made in a fraction of a second.

To be used, this function requires that your smartphone is also NFC compatible.

Shanling UP4 Amplificateur Casque DAC Portable Symétrique 2x ES9218P Bluetooth 5.0 CSR8675
Shanling UP4 Amplificateur Casque DAC Portable Symétrique 2x ES9218P Bluetooth 5.0 CSR8675
1LED indicator
2Multifunction rotary knob
3NFC sensor
4Jack 3.5mm single-ended output
5Jack 2.5mm balanced output
6Microphone
7Mode button
8USB-C Connector

Technical characteristics

Specifications
Product typePortable headphone amplifier and DAC
InputBluetooth 5.0
Outputs1x Jack 2.5mm balanced output
1x Jack 3.5mm single-ended output
Other connectors1x USB-C (Chraging / USB DAC)
Bluetooth chipQualcomm CSR8675
DAC / Amplification chip2x ESS Sabre ES9218P
Supported Bluetooth codecsLDAC, HWA (LHDC), aptX HD, aptX LL, AAC, SBC
Transmission distance10m
MicrophoneKnowles SiSonic
Power71mW @ 32Ω, single-ended output, high gain
91mW @ 32Ω, single-ended output, Dual DAC mode
160mW @ 32Ω, balanced output
SNR120dB (single-ended)
120dB (balanced)
Channel separation73dB @ 32Ω, single-ended
96dB @ 32Ω, balanced
THD+N0.003% @ LDAC, A-Weighting, 0.5V, 32Ω
0.03% @ 0.5V, A-Weighting, 32Ω
Autonomy15h @ single-ended
10h @ balanced
Charging time2h
Battery550mAh
General
Supply voltage5V DC 500mA
ColorBlack
Dimensions60 x 36 x 13.5mm
Weight37g
Package1x Shanling UP4
1x USB-C cable
1x Clip case

Data sheet
InputBluetooth
InputUSB
OutputJack 2.5mm
OutputJack 3.5mm
OutputUSB
ColorBlack
Remote ControlNo
