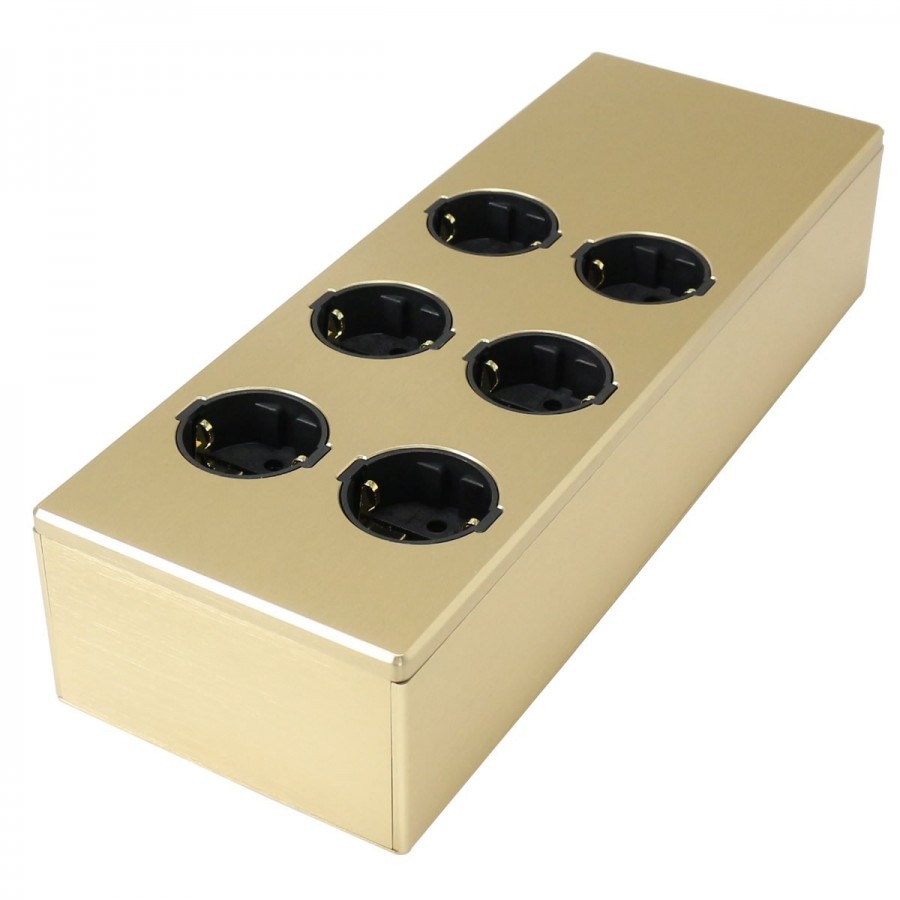

AUDIOPHONICS MPC6 V2 Power distributor 6 ports Aluminum FURUTECH Gold

The Audiophonics MPC6 V2 represents the next generation of high-end power strips. The Audiophonics MPC6 V2, with a revised and corrected finish with rounded fingernails and improved mechanical strength, offers great possibilities for optimization.

This new generation MPC6 V2 features a new aluminum finish with rounded corners for better finishing and increased electromechanical performance.

Throughout the process of creating this product the emphasis has been placed on the choice of materials so as to obtain one of the best possible interconnections sector.
Thea connectic is integral of source FURUTECHand processed with the famous Alpha process, the ELECAUDIO wire has been retained for its monocrystalline OCC copper, its PTFE insulation and its very low impedance.

Here are the IEC, Schuko, and wiring jacks used for the Audiophonics MPC6 V2:

Sockets Schuko:

• Header FURUTECH FI-E-30 (G) Header Schuko gold plated 24k (Alpha)

IEC socket:

• IEC FURUTECH FI-06 (G) Plated Pure Gold Copper

Wiring:

• ELECAUDIO FC125TC wiring cable Copper OCC PTFE 2.5mm² (Red)
• ELECAUDIO FC125TC Wiring Lead Copper OCC PTFE 2.5mm² (Black)
• Insulated cable ends 2.5 mm² OFC Viablue
• Cable Copper / Silver Insulated PTFE 1.23mm²
• ELECAUDIO Gold plated domino interconnection distributor 24k

Chassis Thickness :

• Facades: 3.5 mm
• Sides: 3.5 mm
• Top: 8mm
• Bottom: 3 mm

Characterisics:

• 6 plugs Schuko FI-E30 Pure gold plated copper

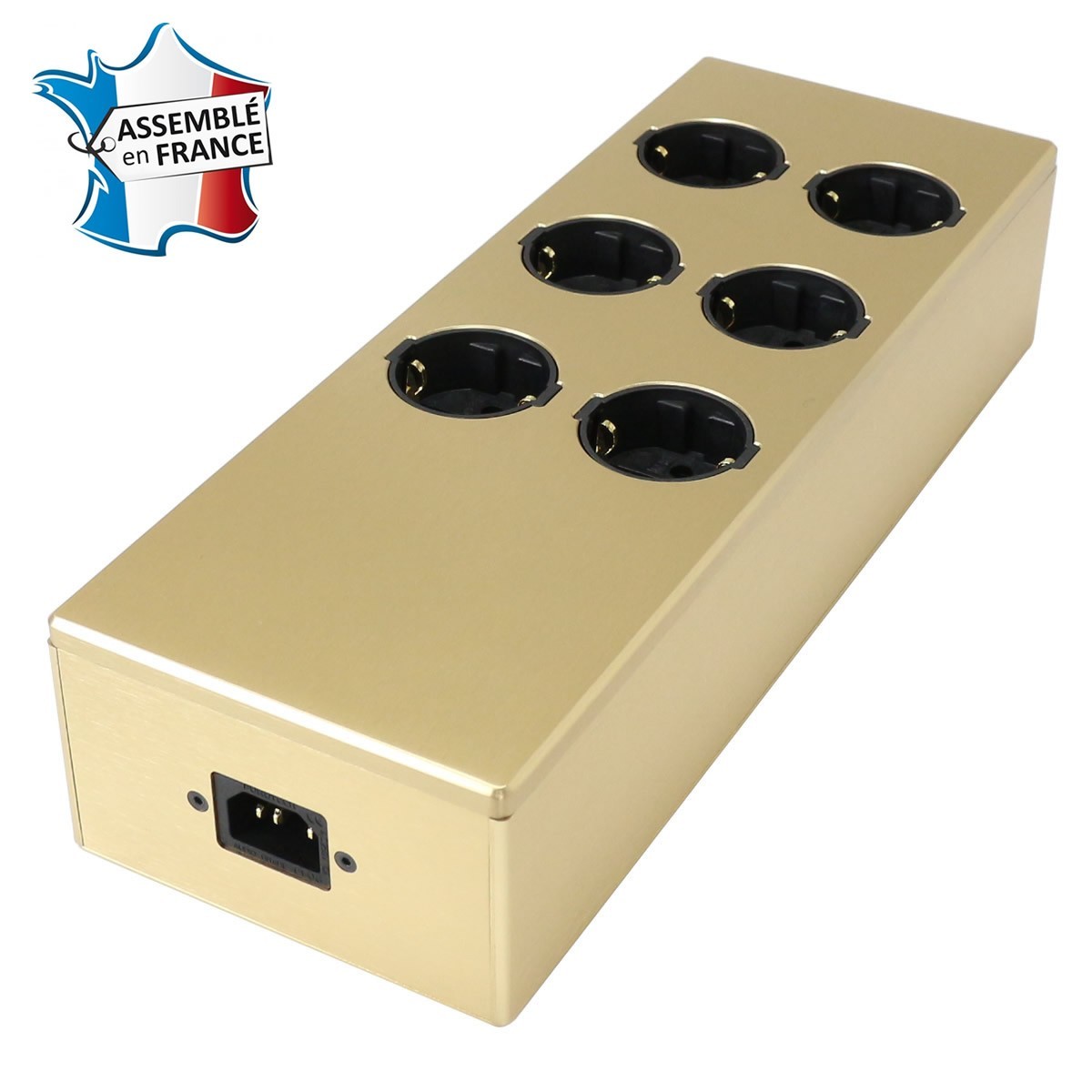

• IEC FURUTECH FI-06 connector

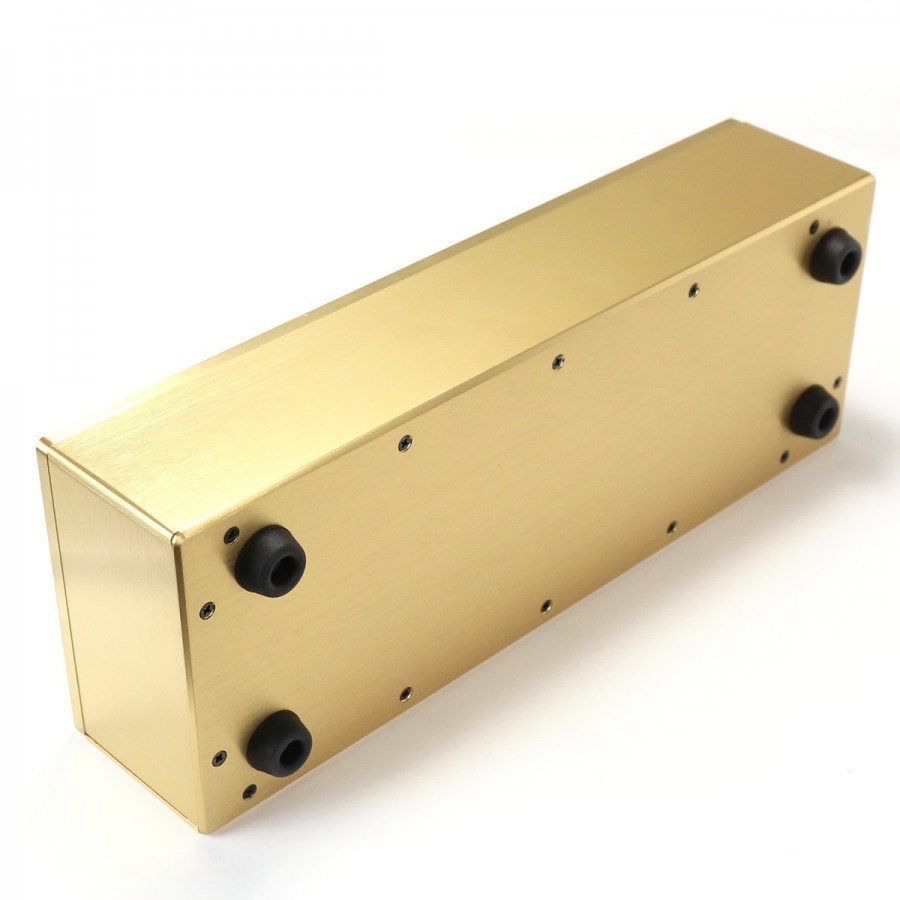

• Anti-slip rubber feet
• Dimensions (in mm): 340 x 123 x 75 (W x W x H)
• Weight: 2.2kg
• Gold color

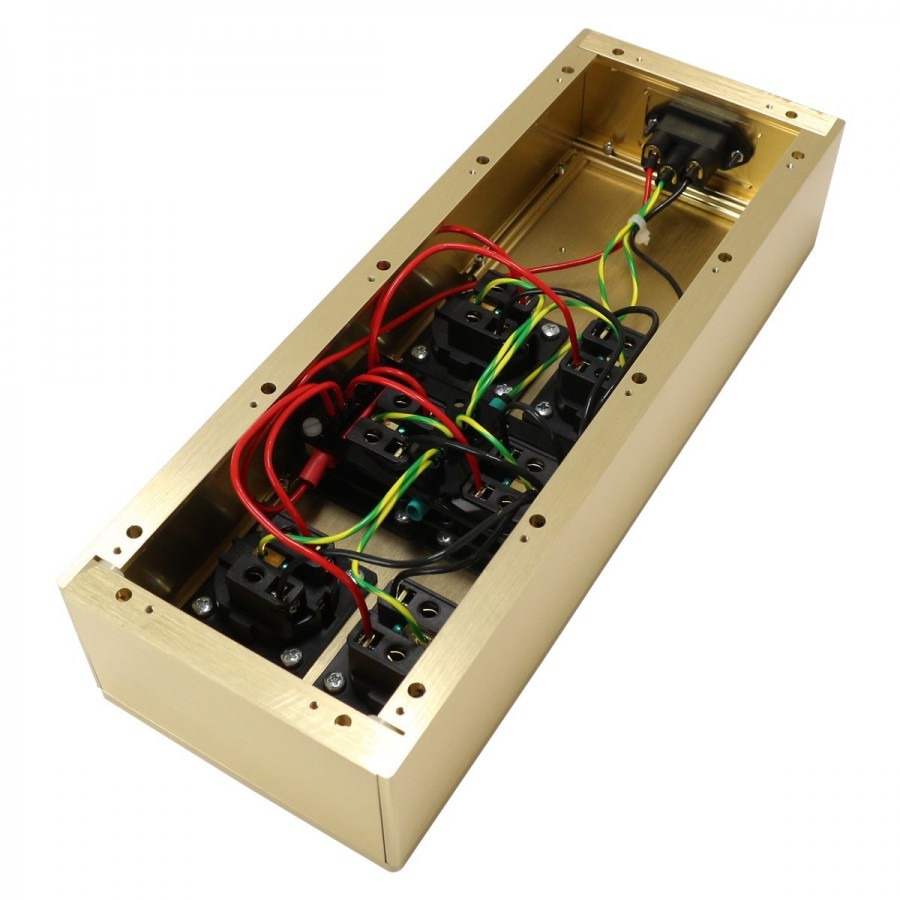

- Wiring diagram MPC6 V2 -

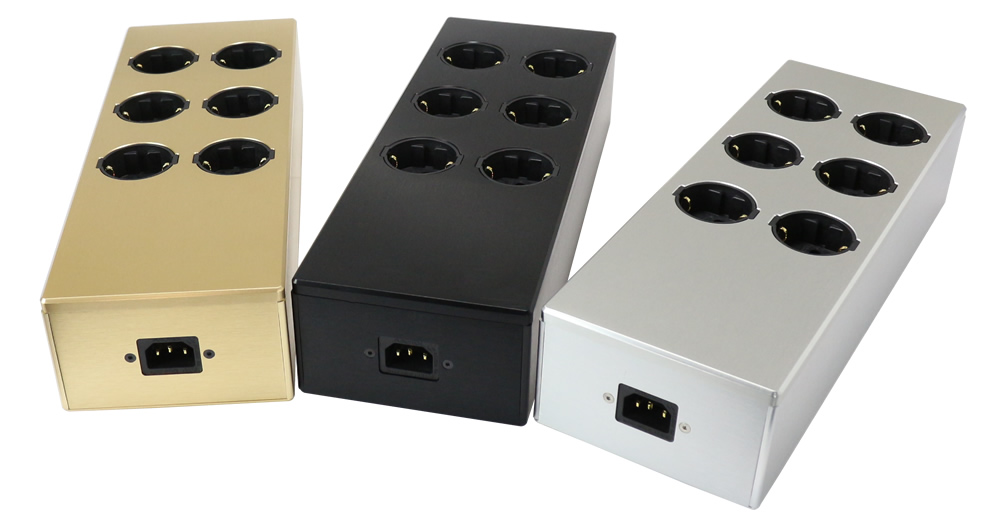

distributor MPC6 V2 available in several colors
