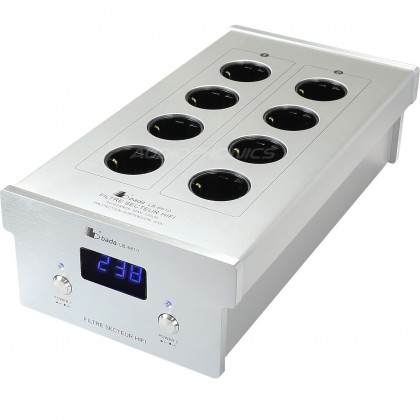

BADA LB-6610 8-Port Schuko Gold Plated Gold Plated

This high performance mains filter with 8 Schuko plugsin the European format it is possible to reverse the direction of connection in order to respect the phase of each connected device. It brings great improvements to the listening without dynamic compression (pumping effect) or hardness in the acute medium. This new generation includes 8 Schuko gold plated.

This Schuko 8-port mains filter also exists in black version: BADA LB-6610 Black.

How to connect the BADA 6610?

• Line 1 out of 4 outlets to connect the sources of low consumption: CD players, Blu Ray players, Tuners, DAC, Streamer Audio, Turntables, Internet Box, NAS, Laptop, PC
• line 2 out of 4 sockets allows to connect the devices with stronger currents: Integrated amplifiers, power amplifiers, HC amps, Subwoofer, active speakers.

Technical specifications:

• Progressive filtering in a CLC network by means of winding coils on toroid and gap, and WIMA MKP capacitors.
• Internal wiring made from 2.5 mm² OCC monocrystal copper conductors for better electrical distribution and significant sound gain.
• General Overvoltage Circuit Breaker with Reset Switch accessible on the rear panel.
• Detachable mains cable on IEC 3-pole base for personalization or upgrade.
• Highly accurate digital voltmeter (ATMEL) Red display on the front Frame with thick aluminum fronts (8 mm).
• Line selector to activate the supply of the elements separately
  Ex: Possibility of connecting the sources on line 1 and the amplification elements on line 2

Specifications:

• Number of Gold-plated Filters: 8
• Maximum Power Rating: 3300W / 15A
• Input Voltage: 220V / 240V
• Total Dimensions: 340 x 180 x 100 (L x W x H)
• Weight: 5Kg
• Standard power supply cable 1m50 long
