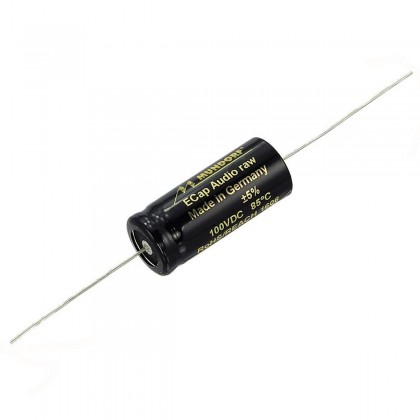

MUNDORF E-CAP ECAP100 (BR100) RAW Capacitor 100VDC 32VAC 82μF

Mundorf E-Cap audio and signal coupling capacitors are bipolar electrolytic capacitors. They are used in applications where film capacitors are not suitable for space or cost reasons, as they are generally much more compact than their film counterparts. In particular, they are widely used in crossover filters.
No customer reviews yet, login to write a review.

No loyalty points for this product.


Reference : 4270
New product

4,40 €tax incl.

3,67 € tax excl.

- +


Shipping date: 24-12-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Mundorf E-Cap ECAP100 (BR100) RAW

Capacitor 100VDC 32VAC 82µF

Mundorf E-Cap ECAP100 (BR100) RAW Condensateur 100VDC 32VAC 10µF

Mundorf E-Cap audio and signal coupling capacitors are bipolar electrolytic capacitors. They are used in applications where film capacitors are not suitable for space or cost reasons, as they are generally much more compact than their film counterparts. In particular, they are widely used in crossover filters.

There are two ranges of E-Cap capacitors. The RAW range consists of the ECAP100 and ECAP63 models (BR100 and BR63). Capacitors in this range are made of foils whose surface is roughened by a special etching process that enlarges their surface. As the capacitance is proportional to the surface area, this process results in compact and inexpensive capacitors.

These capacitors are bipolar and have a second aluminium foil for resistance to AC voltage, making them suitable for AC audio signals.

Technical characteristics

Specifications
Product typeCapacitor
Capacity82µF
Voltage100VDC
32VAC
Tolerance±5
DielectricPolypropylene (PP)
Loss factortan ∂ 0.050 @ 1kHz
Service life3000h @ +85°C
Temperature range-40°C to 85°C
General
DimensionsØ18 x 39mm
Wires diameter0.8mm
Wires length40mm

Data sheet
Tolerance (%)5
Capacitor capacitance (µF)82
Rated voltage (V)32.0
Rated voltage (V)100
Capacitor typeElectrolytic capacitor
Capacitor formatAxial
