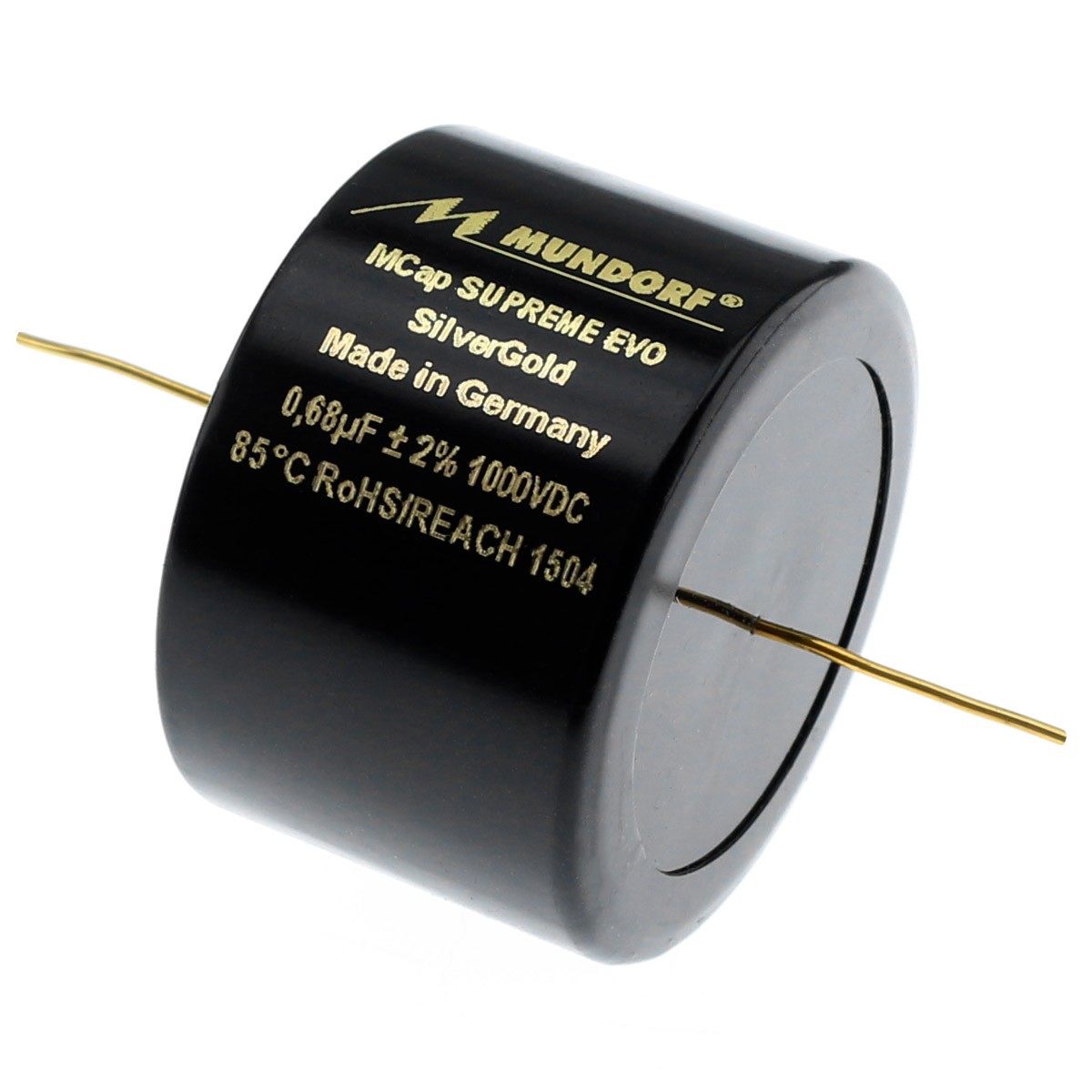

Capacitor 1000V 0.68µF
Since 2015, the MCap Supreme EVO SilverGold capacitors have been the undisputed top-of-the-line product from Mundorf. It combines all of the brand's technical strengths, such as SilverGold metallization, SUPREME and EVOLUTION winding technology and more than 30 years of experience in the manufacture of capacitors for incredible musicality: finely nuanced timbres and a lively, precise musical experience.
Metallized polypropylene as a dielectric guarantees low tolerances. The winding is encapsulated by hand in Aluminium tubes to minimise microphony. The asymmetrical gold-plated pure Copper wires allow a classical horizontal or vertical mounting. The shorter wire also indicates the outer foil of the capacitor.
Specifications | |
---|---|
Product type | Capacitor |
Capacity | 0.68µF |
Voltage | 1000VDC |
Tolerance | ±2% |
Dielectric | Polypropylene (PP) |
Metallisation | Silver 99% + Gold 1% |
Loss factor | 0.0002 @ 1kHz 0.0001 @ 10kHz |
Max temperature | 85°C (185°F) |
General | |
---|---|
Dimensions | Ø36 x 23mm |
Wires diameter | 0.8mm |
Wires length | 35mm 55mm |
Tolerance (%) | 2 |
Capacitor capacitance (µF) | 0.068 |
Rated voltage (V) | 1000.0 |
Capacitor type | Film capacitor |
Capacitor format | Axial |
