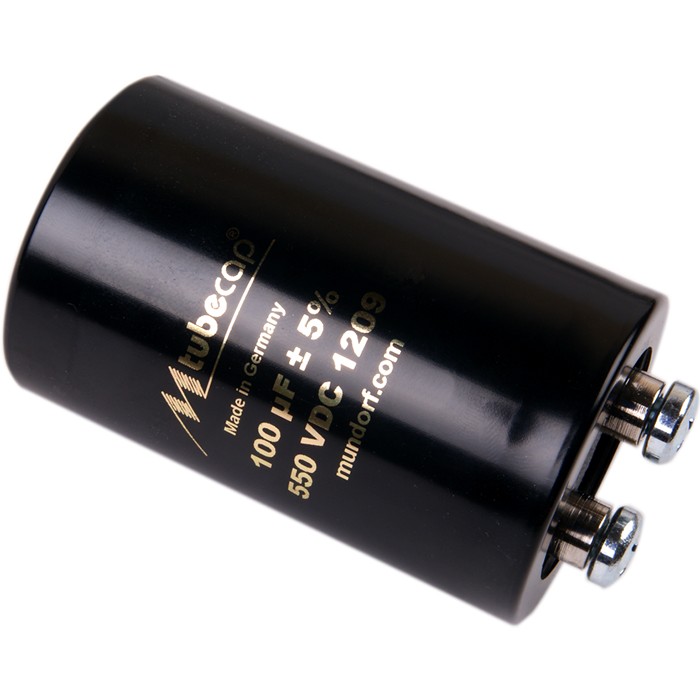

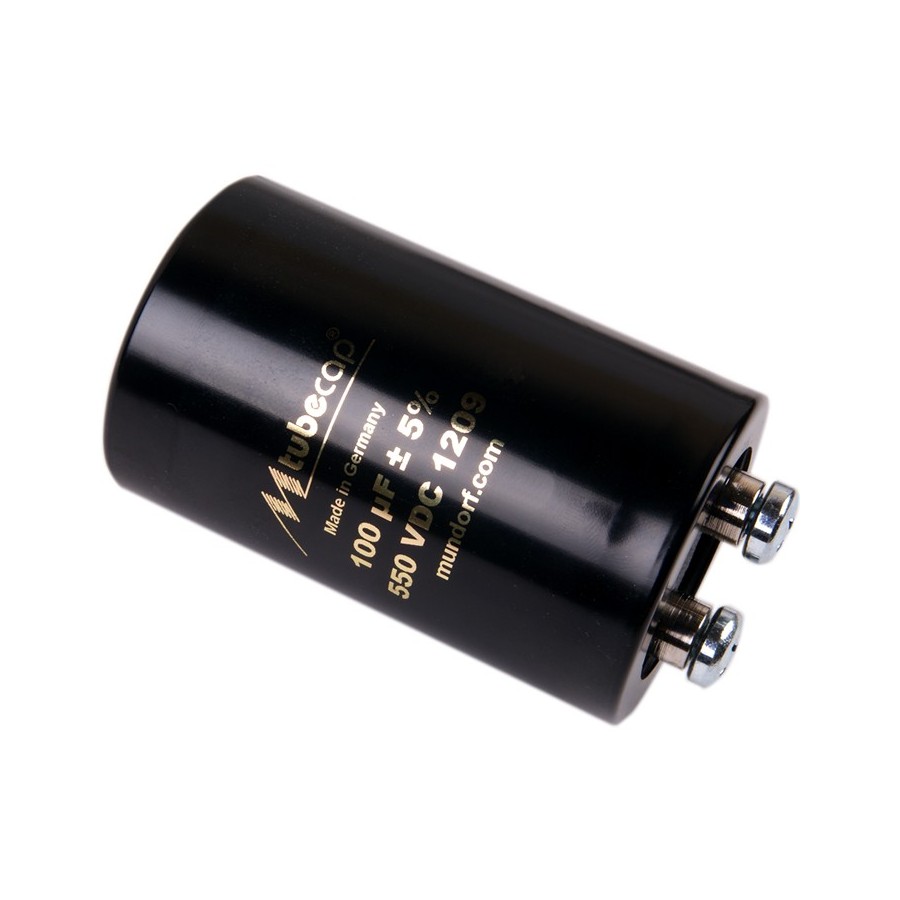

MUNDORF TUBECAP Capacitor 550V 100μF

These capacitors combine high dielectric strength with low residual inductance. They have been developed to offer a high quality alternative to high voltage electrochemical capacitors and are therefore ideal for use in tube amplifiers.
No customer reviews yet, login to write a review.

By buying this product you get 10 loyalty points


Reference : 2031
New product

105,00 €tax incl.

87,50 € tax excl.

- +


Shipping date: 19-12-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Mundorf TubeCap

Capacitor 550V 100µF

Mundorf TubeCap Condensateur 550V 200µF

Mundorf TubeCap capacitors are made from a Polypropylene film with special features. It is particularly thin and self-healing. This allows TubeCap capacitors to achieve a higher maximum operating voltage with rather compact dimensions.

These capacitors combine high dielectric strength with low residual inductance. They have been developed to offer a high quality alternative to high voltage electrochemical capacitors and are therefore ideal for use in tube amplifiers.

Mundorf TubeCap Condensateur 550V 100µF

Technical characteristics

Specifications
Product typeCapacitor
Capacity100µF
Voltage550VDC
Tolerance±5
ESR @ 10Hz9mΩ
ESL @ 500kHz88.6nH
DielectricPolypropylene (PP)
Loss factortan ∂ < 0.005 @ 1kHz
Failure rate1 fit
Sealing compoundPU UL 94-V0
Useful life100000h @ hot spot 60°C
Cover0.5 x Un ; 40°
Max ambient temperature85°C (185°F)
General
DimensionsØ50 x 85mm
Internal screw threadM6 x 10
Connectors diameter10

Data sheet
Tolerance (%)5
Capacitor capacitance (µF)100
Rated voltage (V)550.0
Capacitor typeFilm capacitor
Capacitor formatRadial
