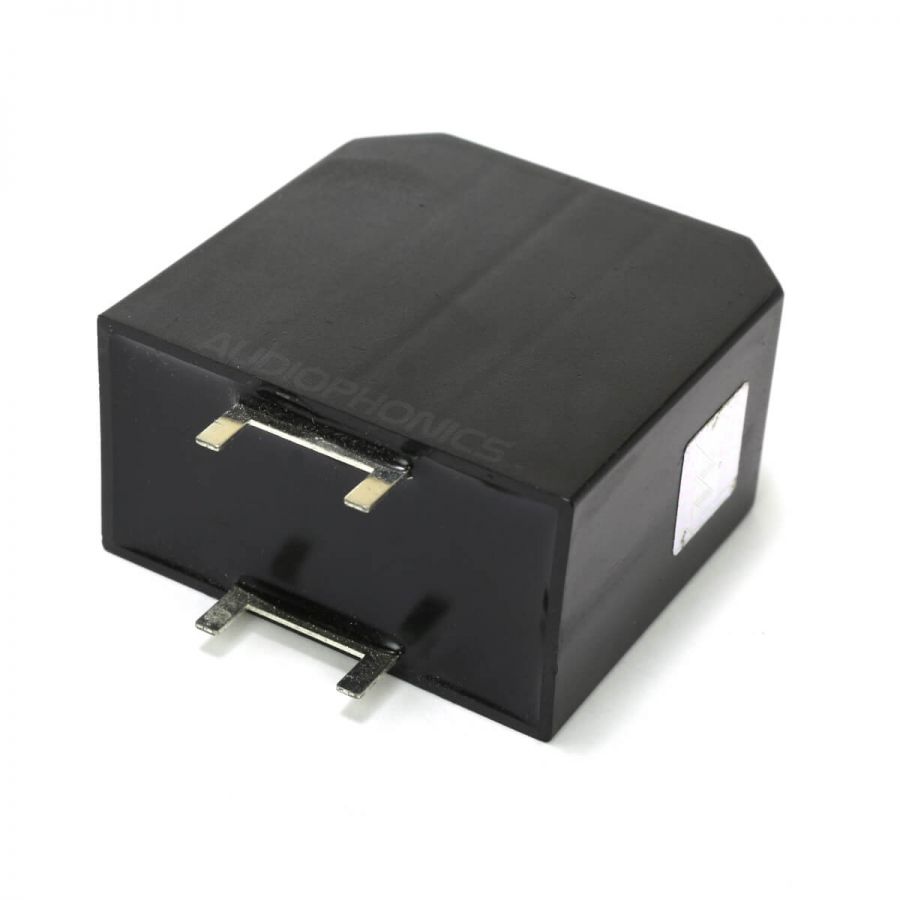

MUNDORF MCAP RXF Capacitor 800V 0.22μF
![[GRADE S] FURUTECH DAS-4.1 Balanced Interconnect Cable OCC DUCC Copper Ø10mm 1.3m](https://www.audiophonics.fr/64493-thumb_default/furutech-das-41-balanced-interconnect-cable-occ-ducc-copper-o10mm.jpg)
![[GRADE A] AUNE S9C PRO DAC 2x ES9068AS Discreet Headphone Amplifier 5W Bluetooth 32bit 768kHz DSD512 MQA Back](https://www.audiophonics.fr/64487-thumb_default/aune-s9c-pro-dac-2x-es9068as-discreet-headphone-amplifier-5w-bluetooth-32bit-768khz-dsd512-mqa-back.jpg)
![[GRADE A] Mono Power Amplifier Modules LM3886 with Heatsinks 2x120W / 8 Ohm (Pair)](https://www.audiophonics.fr/64212-thumb_default/mono-power-amplifier-modules-lm3886-2x120w-8-ohm-pair.jpg)
![[GRADE S] IAN CANADA STATIONPI SMT Raspberry Pi and HAT Boards Adapter Station](https://www.audiophonics.fr/64200-thumb_default/ian-canada-stationpi-smt-raspberry-pi-adapter.jpg)
![[GRADE A] SHANLING EC SMART Lecteur CD Vertical Sanyo DA11 CS43131 Bluetooth 5.4](https://www.audiophonics.fr/64181-thumb_default/shanling-ec-smart.jpg)
MCAP RXF
The MCAP RXF (Radial Xtra Flat) are a type of capacitor featuring an optimized geometry with compact housing. They cater to builders ambitious HiFi.
The internal winding diameter and the internal and external contact surfaces have been increased to the maximum to reduce electric losses. This gives a very low internal resistance and residual inductance.
The MCap RXF is ideal for detailed and dynamic music reproduction.
Dimensions
| Specifications | |
|---|---|
| Type | Polypropylene Aluminum Capacitor |
| Capacitance | 0.22µf |
| Max voltage | 600VDC |
| Maximum tolerance | 3% / 1.5% Typical |
| Loss factor | tan = 0.0002@1kHz@1µF |
| Dimensions | 35 x 33 x 27mm |
| Spacing | 15.24 x 20.7mm |
| Tolerance (%) | 1.5 |
| Capacitor capacitance (µF) | 0.22 |
| Rated voltage (V) | 800.0 |
| Capacitor type | Film capacitor |
| Capacitor format | Radial |
