AMC - regulated power supply kit 1.5 / 30V DC 2A LM1085

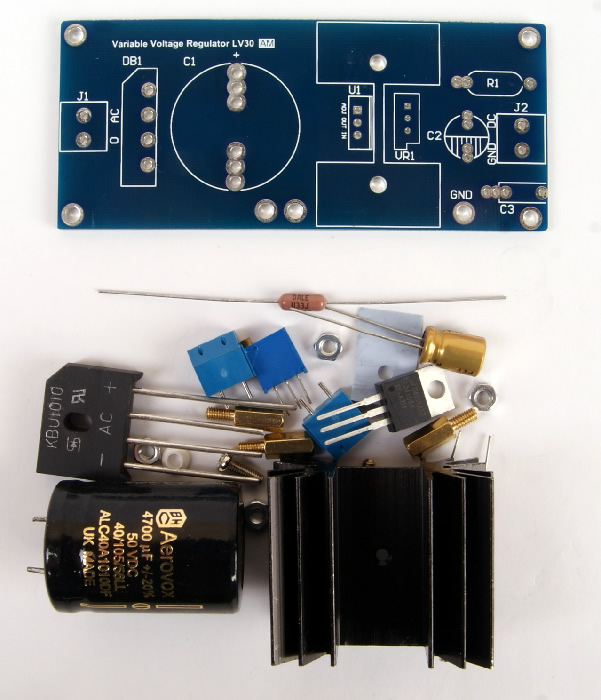

Attention here is a kit to be assembled.

This kit, when assembled, allows you to obtain a regulated voltage between 1.5 min and 30 Vmax (depending on the transformer used).

Features:/ Strong>

• Amperage: maximum 2A
• Output voltages: from 1.5 to 30VDC
• Control: LM1085 low drop out (line control 0.015%, load control: 0.1%, ripple rejection 75dB and output noise RMS 0.003%)
• Quality components: BHC Aerovox, Nichicon, Wima ...
• Dimensions: 100 x 43 x 45 (H) mm
• Weight: 100 g

Product shipped without manual

Components are subject to change without notice

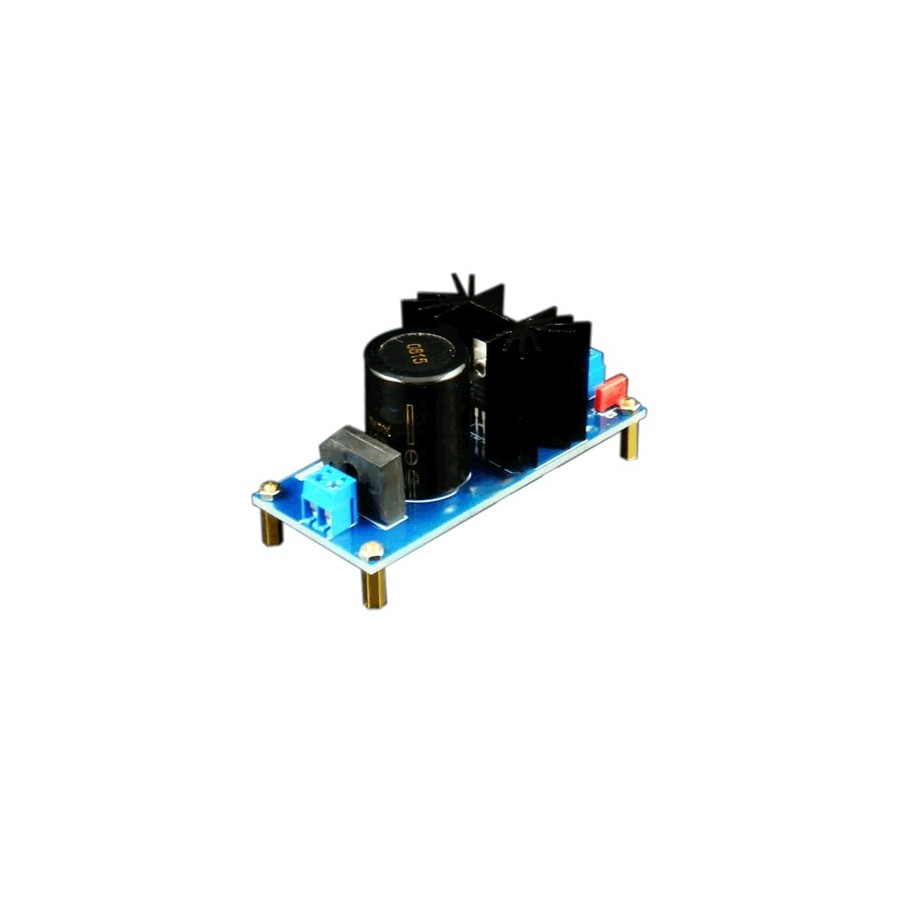

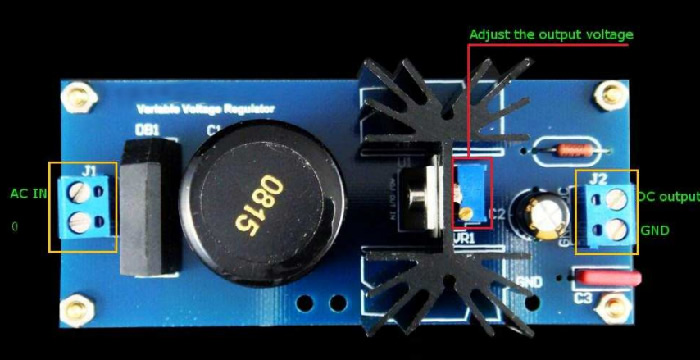

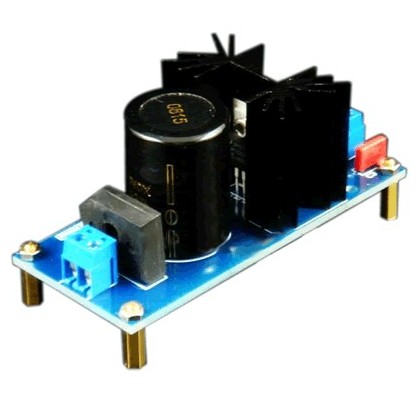

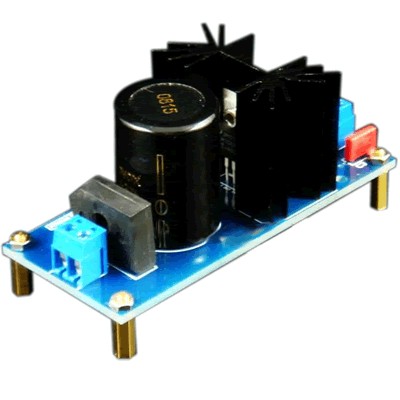

Assembled module

Diagram:

The controller supplied is an LM1085.
