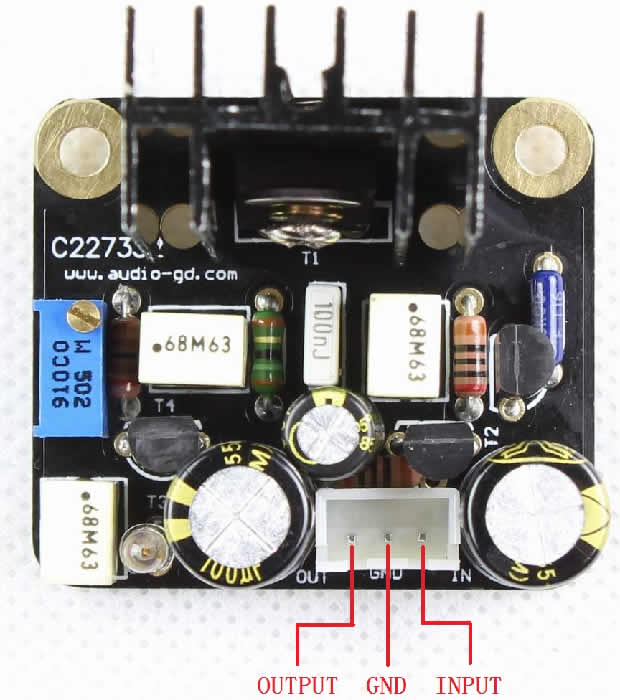

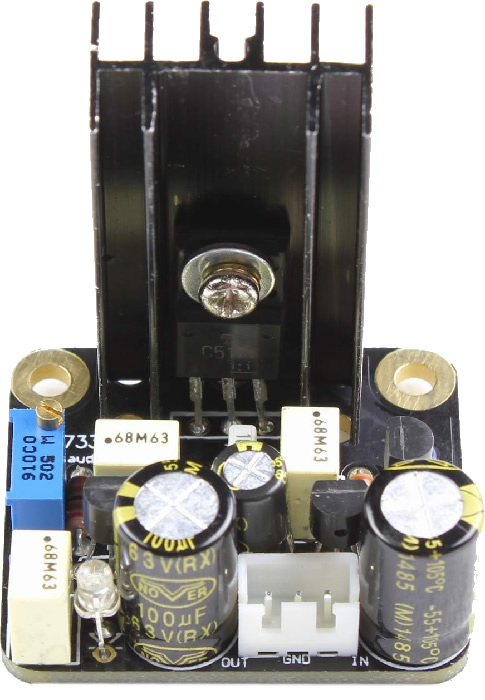

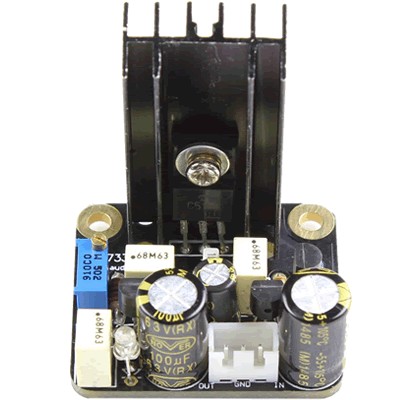

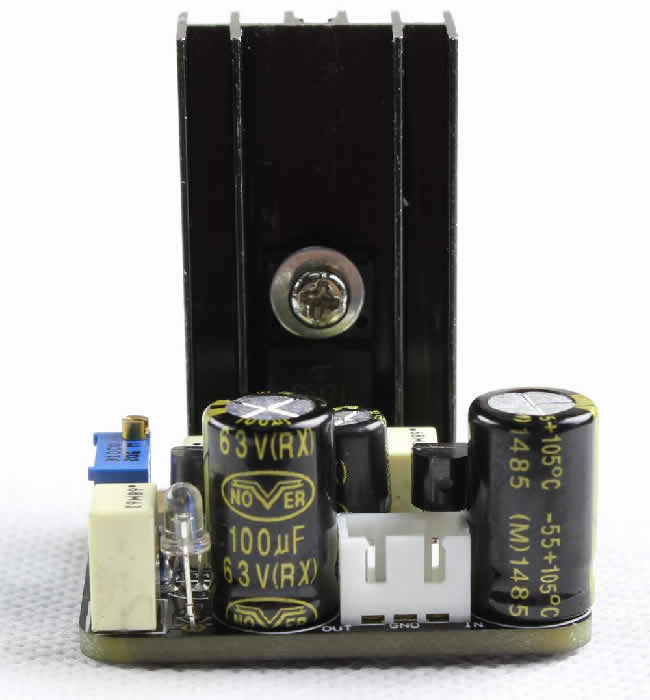

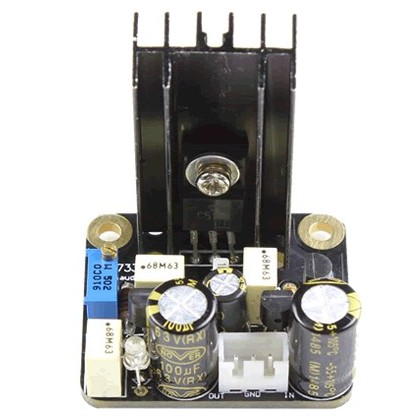

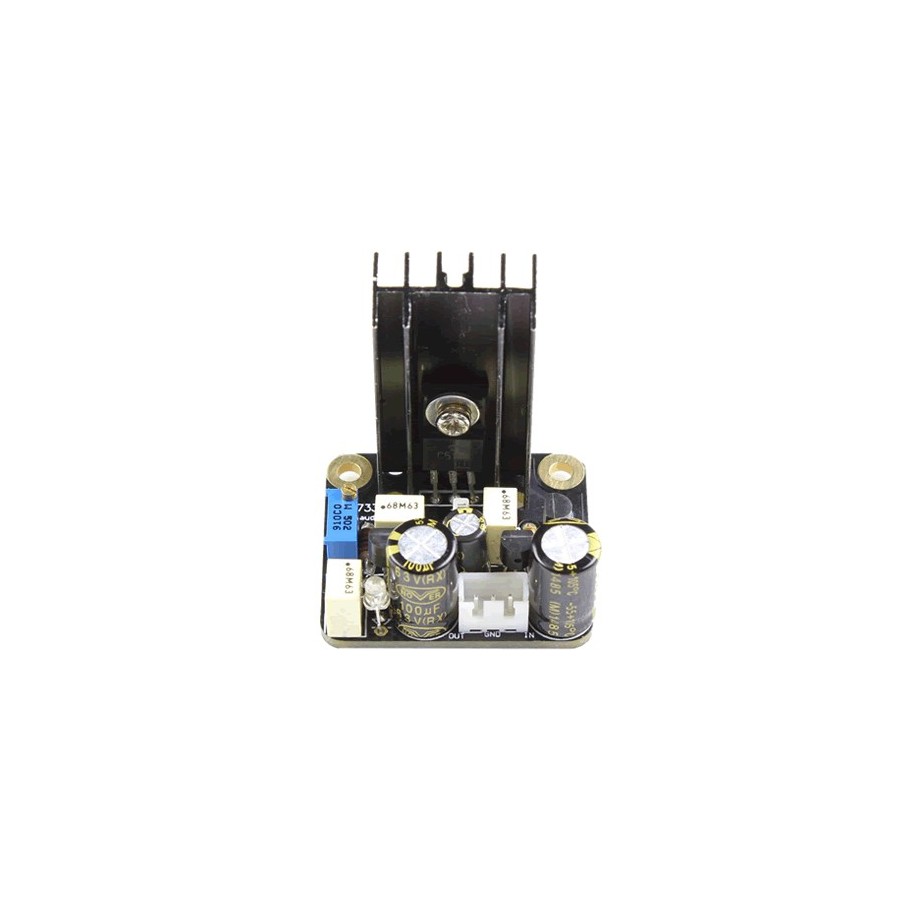

Audio-GD PSU-L Discrete Linear Power Supply + 5V 500mA
No loyalty points for this product.
Audio-GD PSU-L Discrete Linear Power Supply + 5V 500mA
This small module allows you to obtain a linear regulated voltage of + 5V.
Equipped with quality components (Nover, Evox, Dale ...) this power supply replaces the original one in all assembly or updating.
- Applications: Perfect replacement in gain stages of DAC, Preamplifier and Amplifiers
- Dimensions: 40 x 38 x 45 mm (including radiators)
- Mounting hole distance 33 mm
Features: Model Output Voltage (VDC) Input Voltage (VDC)
(output less than 100ma)Input Voltage (VDC)
(output between 100 and 200ma)Input Voltage (VDC)
(output greater than 200ma) PSU-L5V 5 +8 to + 20V +8 to + 15V +8 to + 12V PSU-L12V 12 +15 to + 27V 15to + 22V +15 to + 20V PSU-L15V 15 +18 to + 30V +18 to + 25V +18 to + 22V PSU-LN5V -5 -8 to -20V -8 to -15V -8 to -12V PSU-LN12V -12 -15 to -27V -15 to -22V -15 to -20V PSU-LN15V -15 -18 to -30V -18 to -25V -18 to -22V
