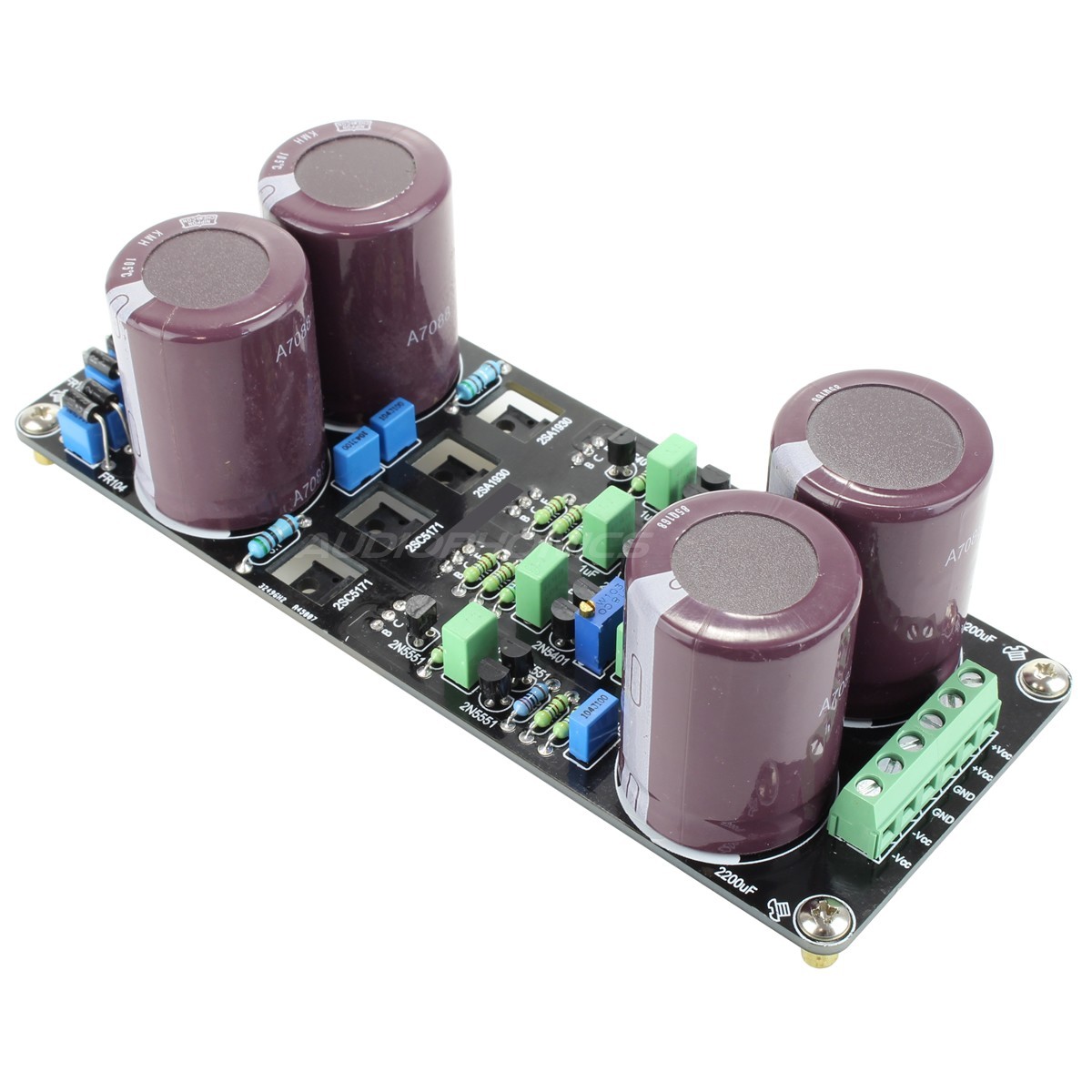

Dual Power Supply board for Preamplifier 4x4700µF 100V

This dual power module allows for comfortable power in a compact volume.
Ideal for powering an Amplifier.

Thanks to the use of 8 FR104 diodes, this power supply makes it possible to reach a rectified voltage adjustable from 20 to 60V.

It is designed around TOSHIBA 2SC5171 and 2SA1930 controllers.
On the filter side, there are 2x 2 Chemi-Con capacitors each 4700μF / 100V which are used.

The output stage also benefits from first-order filtering with 2x 3 THOMPSON capacitors each of 1μF.

Characteristics :

• Output voltage adjustable: +/- 20V to +/- 60V
• Continuous current: 100mA
• Input / output connections via screw terminals
• Requires heat sink
• Screws and spacers provided
• Spacing: 155mm, 55mm
• Dimensions: 165x64x44mm
• Weight: 240g
