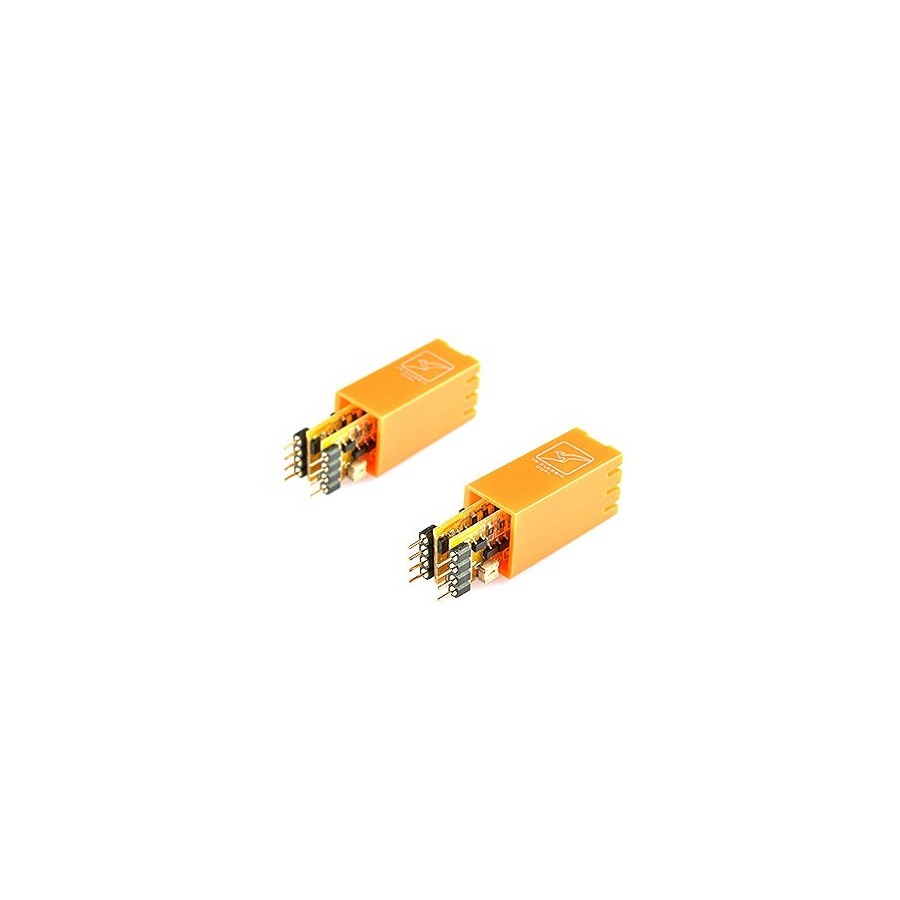

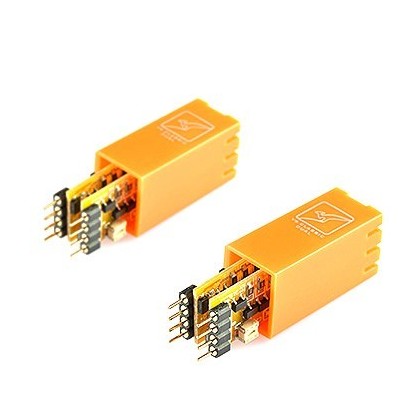

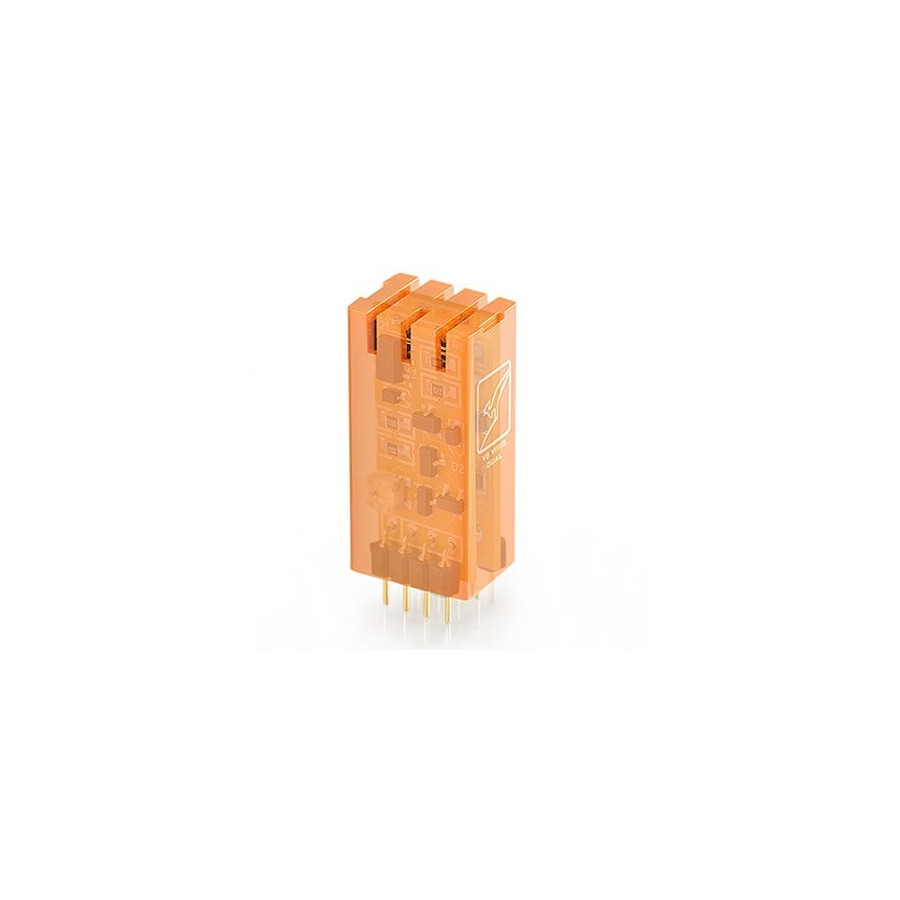

BURSON AUDIO SUPREME SOUND SS OPAMP V6 Single Discrete OPA (Pair)

Average votes for this product
5.0 / 5

By buying this product you get 7 loyalty points


Reference : 12176
New product

79,00 €tax incl.

65,83 € tax excl.
Including 0,01 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

BURSON AUDIO Classic SINGLE PAIR X2

- AOP with discrete transistors mono in pairs-

burson v6 discret audio AOP

High resolution, dynamic, balance

The AOP Burson V6 ViVid and Classics are evolutions of the V5 series with a particularly good sound balance. They will bring opening, timbre, dynamics and sound image in three dimensions to any Hifi devices compatible with support DIP8 compatible NE5534 single or NE5532 dual according to the versions.

Improved design

burson v6 discret audio AOP

OfferingImproved heat protection and improved heat protection The discrete AOP Burson V6 are now also stable on the single stage stage buffers as on the I / V voltage stages of the DAC stages. The Burson v6 are thus of exemplary stability now equipped with 0.5% metal film resistors with two stages of hand-selected FET transistors. The version VIVID brings an additional definition, the classic version an extra stamp.

, font-weight: normal; "> font-size: 22px; font-family: Muli, Arial;REVERSE PROTECTION SYSTEM

burson v6 discret audio AOP

A new protection system allows greater reliability of these high-performance discrete AOPs. The Burson AOP V6 are thus designed to survive any assembly accidents upside down on DIP 8 support.

TECHNICAL CHARACTERISTICS

SPECIFICATIONS

  • Minimum Voltage Required: + - 3.5V / 7VDC
  • Maximum Voltage: + - 16.5V / 33VDC
  • Current consumption: single 7mA, dual 14mA
  • Frequency response: 20Hz - 20kHz (-0.2dB)

CONNECTORS

Contacts:

  • Types DIP 8 plated Gold 8 pins

VARIOUS

  • Weight: 10gr x2
  • Dimensions: 29x12.4x14.5mm (excluding socket)
Compatibility for models:

Dual Op-amps type 5532:
AD823, AD823AN, AD8066, AD823AN, AD823, AD823AN, AD812A, AD827C, NJM4560, NJM5532, NJM4558P, OP275, OPA1612, OPA2277PA, OPA2132, OPA2134, OPA2604, JRC4558, RC4558D, RC4558P, TL052, TL072, MUSES01, MUSES02, MUSES8820, MUSES8920, MUSES8832.

Single Op-amps type 5534:
NE5534, LT1122, TL071, OPA134, OPA627, AD811, AD829, AD844, OPA604, AD8610, AD711, AD797, LME49990, LME49710.

burson v6 discret audio AOP

burson v6 discret audio AOP


Data sheet
OPA TypeSingle

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
5 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
strange fruit
This is my first discrete test in an op amp topology. The pair replaced the 5534s in an evo sabre dac. (plug n play easy solution- no need for extension). After a few hours burn-in (they do need that) you get a holographic sound with mids and highs having the tonality and presence of a set amplifier. After a quick change to the previous 5534s the difference is quite audible. I am intrigued to get the vivids too but for now the supremes are doing the trick just fine. Needless to say that my beloved evo sabre dac shines in my main system.
 (0)
 (0)
This review has been posted for BURSON AUDIO SUPREME SOUND SS OPAMP V6 Single Discrete OPA (Pair)
Note :
 5/5
Date :
Impressionnant
Installes sur un Fostex Hp 8 Ac Mk1. Impressionnant : plus de largeur, de dynamique sur l’écoute au casque . En revanche pas de changement sur la sortie ligne ( mais c’est logique, les Aop ne sont pas sur ce trajet).
Attention à bien prendre les prolongateurs en plus . Ça évite de mettre les autres composants en tension.
 (0)
 (0)
This review has been posted for BURSON AUDIO SUPREME SOUND SS OPAMP V6 Single Discrete OPA (Pair)
Note :
 5/5
Date :
Transfigure mon DAC Fostex HPA8C
J'ai remplacé les AOP de conversion d'origine de mon DAC par ces AOP Burson.
J'avais choisi de garder des connexions les plus courtes possibles, en plaçant les Burson en lieu et place des AOP d'origine. Cceci a nécessité pour un AOP de déplacer un condensateur de 3 mm. Je n'ai pas essayé les prolongateurs. La définition et justesse sonore ont énormément progressé. Au départ j'imaginais mon DAC de 2014 dépassé mais suite à cette évolution et au remplacement des AOP de l'étage de sortie par des AOP Sparkos je ne vois plus la différence avec les DAC modernes autour de 2000 €. Je recommande !
 (1)
 (0)
This review has been posted for BURSON AUDIO SUPREME SOUND SS OPAMP V6 Single Discrete OPA (Pair)
Note :
 5/5
Date :
burson v6 classic
en etage de sortie sur un pre amp c1 de kenwood super son
 (0)
 (0)
This review has been posted for BURSON AUDIO SUPREME SOUND SS OPAMP V6 Single Discrete OPA (Pair)
Note :
 5/5
Date :
Super Burson
Ont remplacé avantageusement deux LME49710 sur un DAC AKM AK4497, meilleure définition, image plus large et profonde, qualité des timbres. ls prennent peu de place, s’adaptent facilement au voltage. Une période de rodage est nécessaire.
 (0)
 (0)
This review has been posted for BURSON AUDIO SUPREME SOUND SS OPAMP V6 Single Discrete OPA (Pair)
