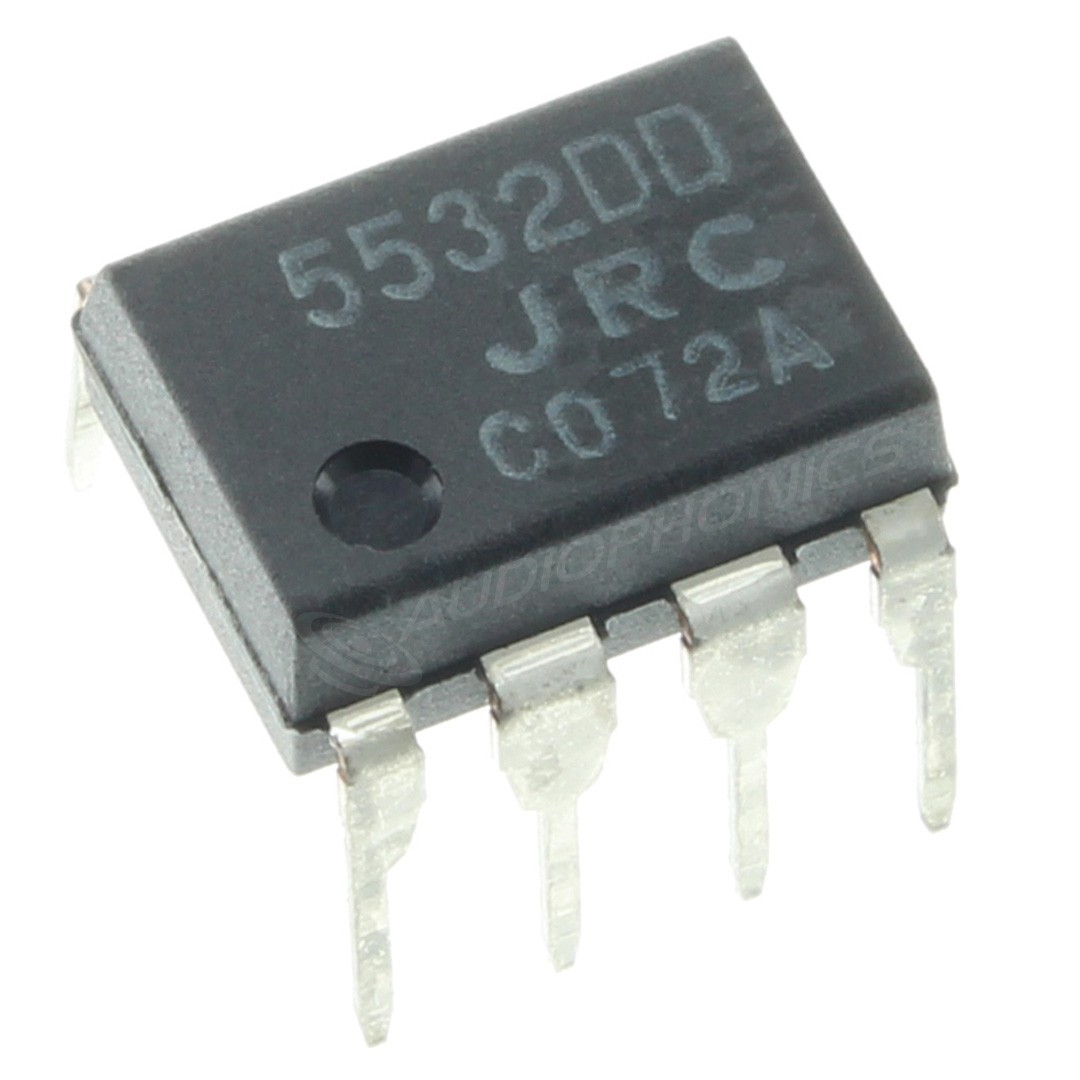

JRC OPA5532
Dual OPA DIP8 (Unit)
The JRC OPA5532 is an efficient dual operational amplifier. It combines good performance in both AC and DC and is internally compensated for unity gain operation. This low-noise, low-distortion op amp has high output power, a high slew rate (9V/ms) and a unity-gain bandwidth of 10MHz. Its operating voltage range is ±5V to ±15V. Its DIP8 format means it can be quickly mounted on DIP8 sockets for an AOP replacement or DIY project, for example.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Dual OPA |
| Format | DIP8 |
| Operating voltage | ±5V to ±15V |
| Equivalent input noise voltage | 5nV/√Hz Typ @ 1kHz |
| Unity gain bandwidth | 10MHz Typ |
| Common mode rejection ratio | 100dB Typ |
| High DC voltage gain | 100V/mV Typ |
| Peak-to-peak output voltage swing | 26V Typ avec VCC± = ±15 V et RL = 600 Ω |
| High slew rate | 9V/μs Typ |
| General | |
|---|---|
| Operating temperature | -40° / +85° |
| Quantity | Unit |
