RASPTOUCH LVDS Streamer I2S HDMI Audio-GD Compatible IIS

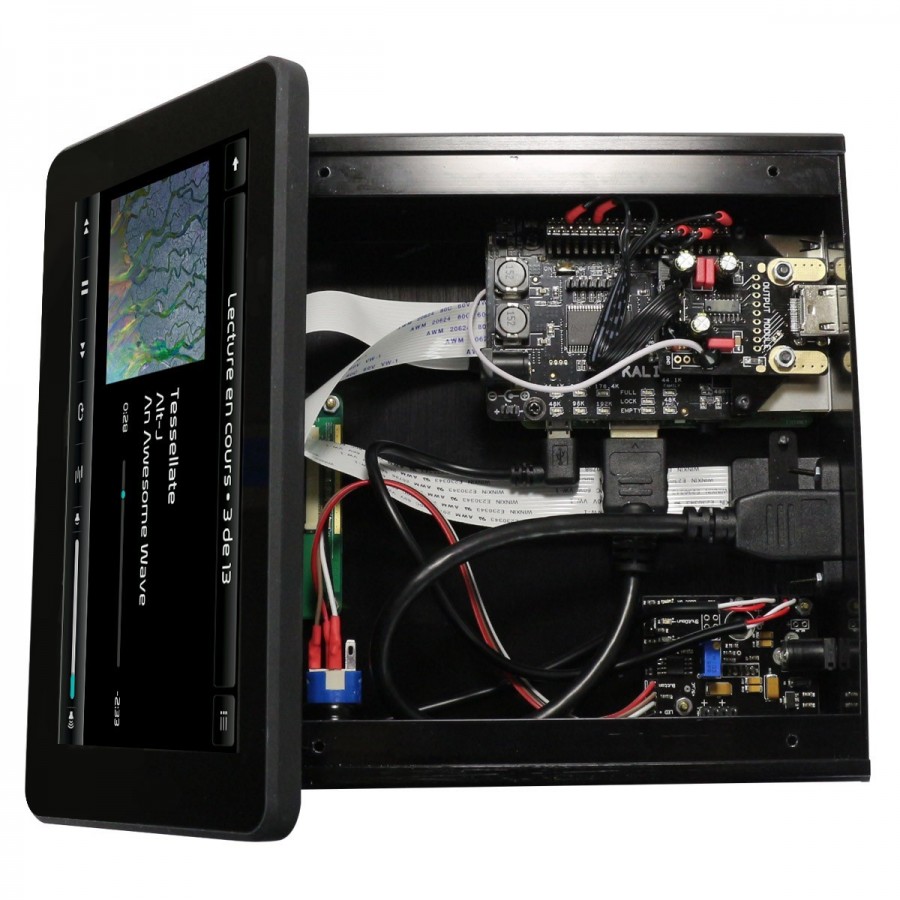

Audiophonics is back with a brand new version of its RaspTouch, designed for experienced audiophiles. It includes a Raspberry Pi 4, an Allo Kali reclocker and an I2S output module for HDMI Audio-GD. So you can enjoy a true HiFi I2S signal and the resulting sound quality.

Average votes for this product
4.7 / 5

By buying this product you get 36 loyalty points


Reference : 12030
New product

369,00 €tax incl.

307,50 € tax excl.

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

If you have any doubts about the compatibility and/or operation of this product, please do not hesitate to contact us.

Computer skills are required for the installation of an OS. Once the latter is installed, choose the RPI DAC output. To use the power controller it is necessary to make changes to the chosen software solution.

RASPTOUCH I2S LVDS HDMI

Open Source Raspberry 4 Streamer I2S LVDS HDMI

Rasptouch I2S LVDS HDMI

Audiophonics is back with a brand new version of its RaspTouch, designed for experienced audiophiles. It includes a Raspberry Pi 4, an Allo Kali reclocker and an I2S output module for HDMI Audio-GD. So you can enjoy a true HiFi I2S signal and the resulting sound quality.

Rasptouch I2S LVDS HDMI
piCorePlayer
max2play
OSMC

Complete compatibility

Supplied with a Micro SD card for the OS installation, there are many operating system options to choose from, depending on your preferences and needs.

Ready to use electronically, many software solutions exist to meet all your expectations: piCorePlayer, Max2Play, OpenElec...

Multiroom without limits

Do you want to enjoy your music throughout your home? The Rasptouch offers you an efficient multiroom system, allowing you to stream your files on any turntable connected to your network and control them.

I2S LVDS: The ultimate in audio quality

Instead of using the usual signals, this RaspTouch lets you enjoy a clean I2S signal. For example, an I2S FIFO 44 / 48MHz Allo Kali reclocker allows the Raspberry Pi's I2S signal to be processed thanks to an Ultra Low Jitter clock fed by LDO and an ultra-quiet power supply, providing high precision. Your system's performance is fast: your music "opens", your sound scene expands, and you can now see sounds that were previously unheard.

This signal is then routed to an Audio-GD I2S module to HDMI, symmetricating the signal. Just plug in your DAC and enjoy.

Rasptouch I2S LVDS HDMI

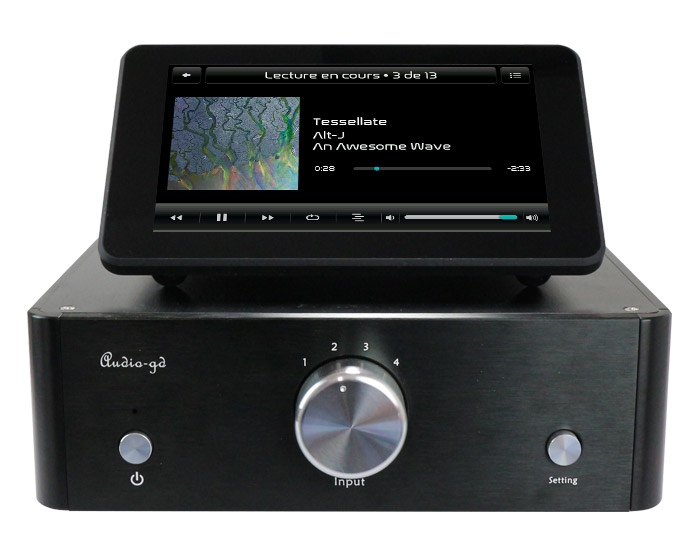

Many compatible DACs

To take advantage of your RaspTouch player, simply choose your HDMI DAC, such as AUDIO-GD D-27.28 or AUDIO-GD R-1. Of course many other models exist. Here is the list of brands by proposing (not exhaustive) :

  • Astin Trew
  • Audio Byte
  • Rockna
  • Javs
  • K&K Audio
  • Love Harmony
  • PS Audio
  • Sonore
  • Stahl Tec Optus DAC
  • Wired 4 Sound
Rasptouch I2S LVDS HDMI

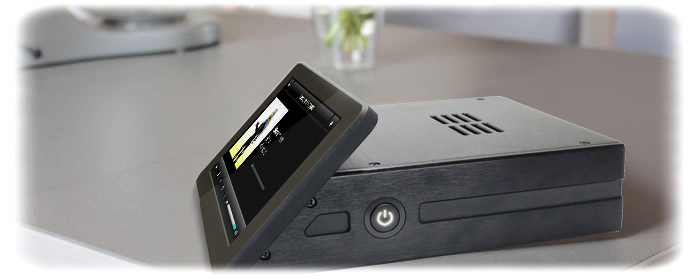

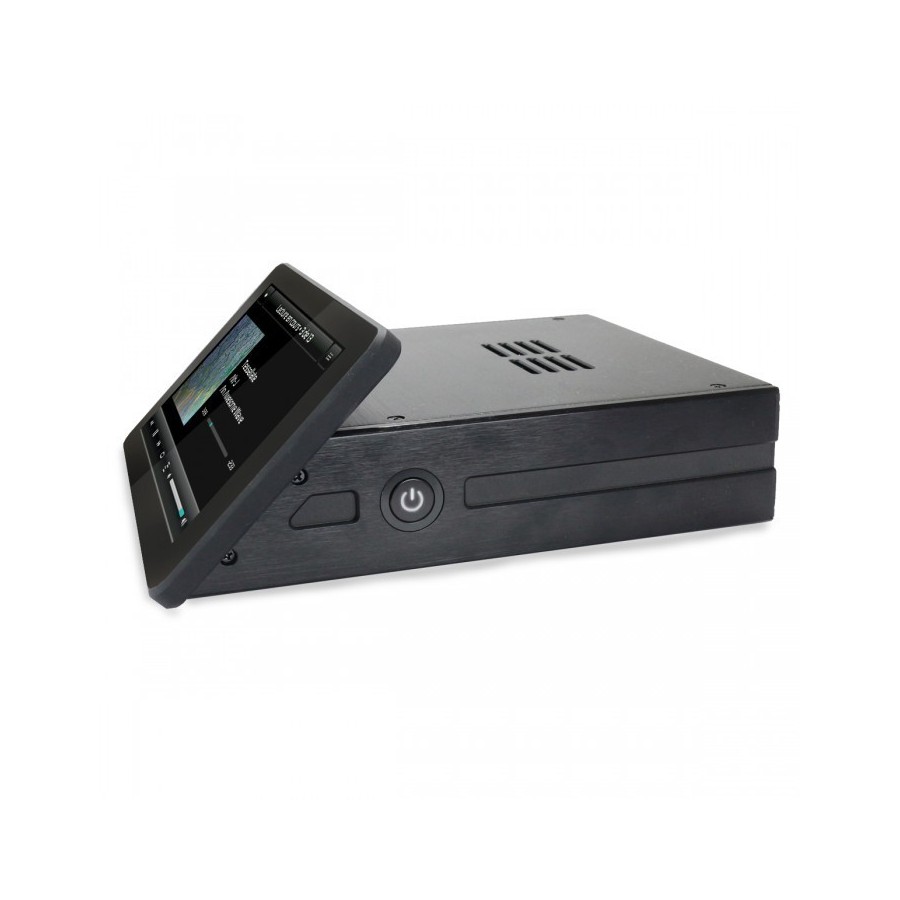

Ergonomic and Design

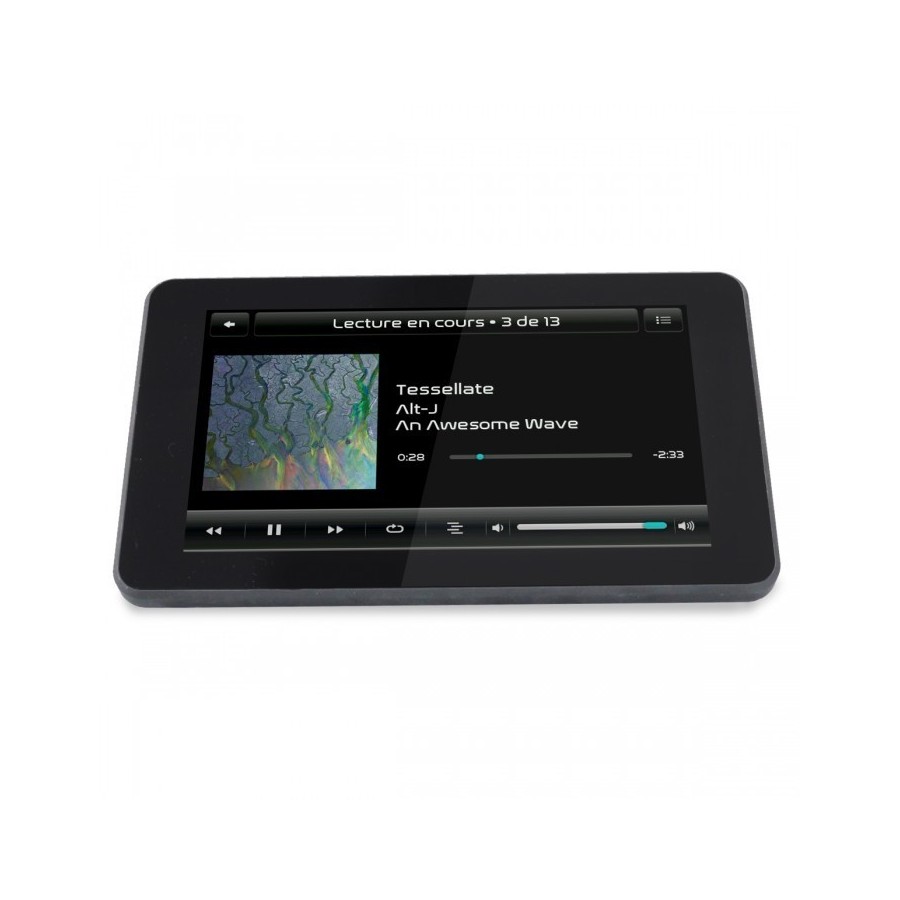

Featuring a 7"touch screen, it allows you to easily and intuitively control your audio library via a graphical interface..

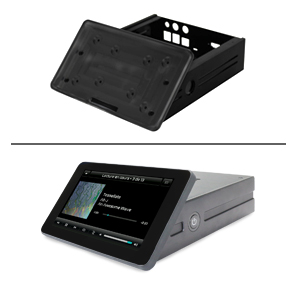

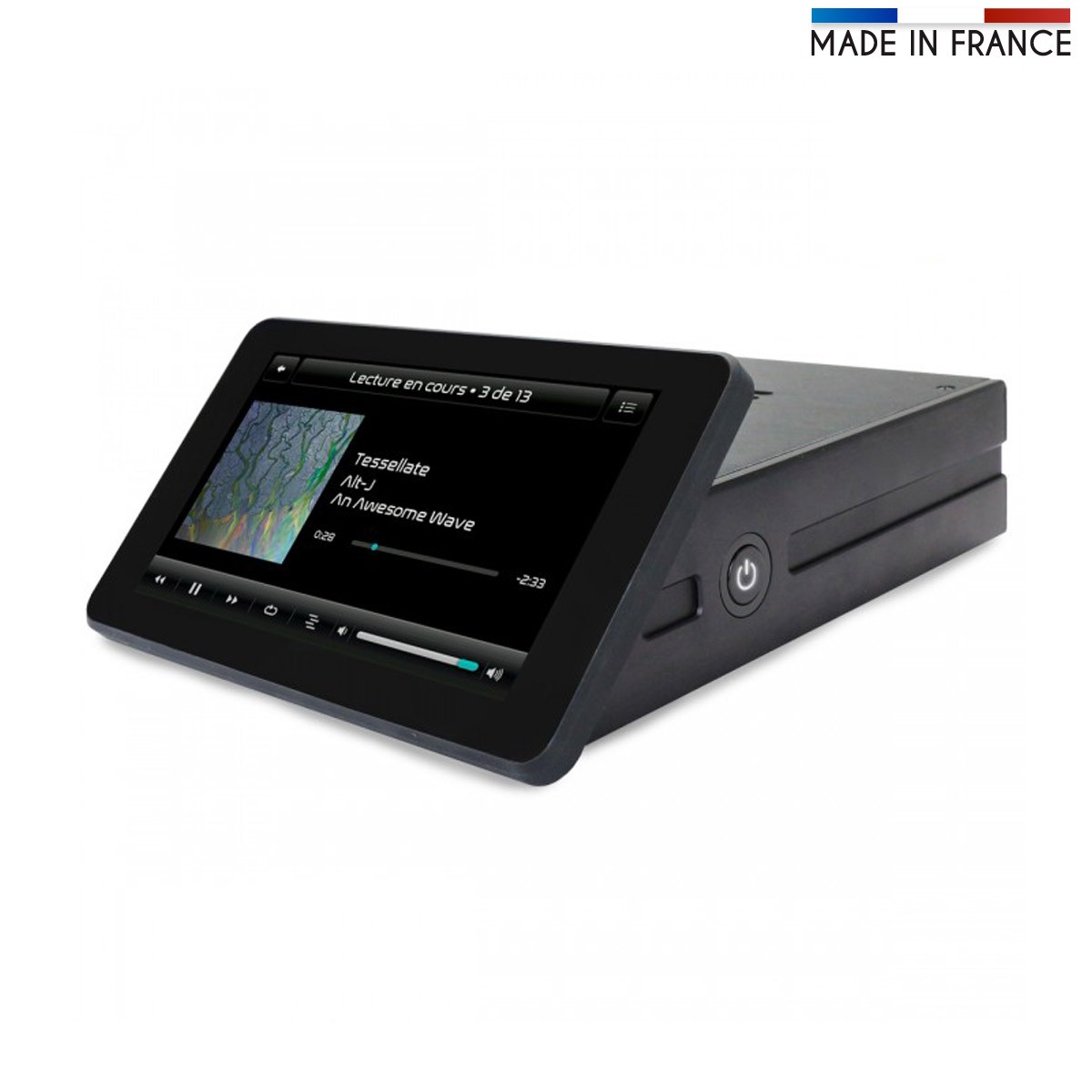

Mounted in a 100% CNC-machined aluminium housing in France, its black colour and matt appearance give it a modern and contemporary design. A device that will fit perfectly into your high-end audio system.

Rasptouch I2S LVDS HDMI

Technical characteristics

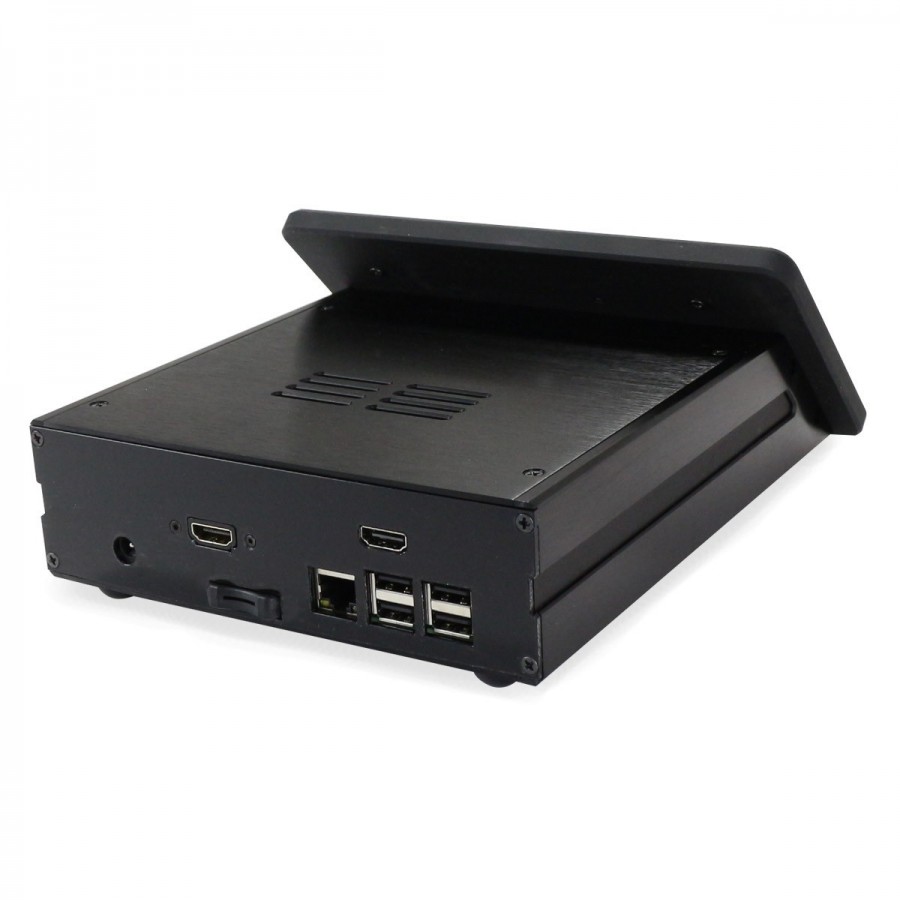

Connectors
Inputs4x USB-A
1x Ethernet RJ45
1x Micro SD
Outputs1x HDMI I2S LVDS
1x HDMI Vidéo
Raspberry Pi 4
SoCBroadcom BCM2711
CPUARM Cortex-A72 1.5GHz Quad Core
WiFi802.11ac
Bluetooth5.0 BLE
GPUBroadcom VideoCore VI, Open GL ES 3.0
RAM2Go
Allo Kali
FIFO CircuitWith FPGA
FIFO MemorySRAM 4MB
ClockMulti-frequency clock with automatic comutation and high performances
Voltage regulatorUltra low noise regulator
General
ScreenCapacitive tactil 7"
Screen resolution800 x 400px
Case colorNoir
Case materialAluminium
Dimensions200 x 95 x 230mm
Weight1440g
Supply :DC 5.5/2.1 - 7 to 9V DC

If you have any doubts about the compatibility and/or functioning of this product, please do not hesitate to contact us.




Mapping I2S / LVDS
A synthesis of main IIS on LVDS pinouts mapping is available here.

Data sheet
InputMicro SD
InputRJ45
OutputI2S LVDS via HDMI
OutputHDMI
DAC / ADC ChipNC
Max sampling rate384kHz
ColorBlack
