Streamer I2S LVDS HDMI
Audiophonics expands its line-up with a brand new network drive, based on a Kali controlled SBC and an I2S LVDS digital interface via HDMI port. A solution that is therefore Audio-GD compatible and certainly audiophile.
With SparkDIGI, you can simply enjoy your entire dematerialized high definition audio library, without limits! Remotely controllable from your Volumio interface, you can access files on your server intuitively and efficiently. So you can enjoy your music from the couch.
This high fidelity DAP is a true audiophile solution tailored to deliver bit-perfect playback and uncompromising audio quality.
Volumio lets you play all your music: MP3, FLAC, WAV, AAC, ALAC, DSD and more. You can also enjoy the UPNP/DLNA, Airplay, Spotify and web radio stations at the same location.
This player also proves to be open source, developed by a talented team and an active community.
Instead of using the usual signals, this SparkDIGI offers you to enjoy an extremely clean I2S LVDS signal via a dedicated Audio-GD digital interface. The latter is responsible for symmetrizing the signal. All you have to do is plug the SparkDIGI into your DAC with an HDMI I2S LVDS port to enjoy your music and exceptional sound reproduction.
Attention: the HDMI output is only I2S balanced and is therefore not usable for video. It will soon be available from this page.

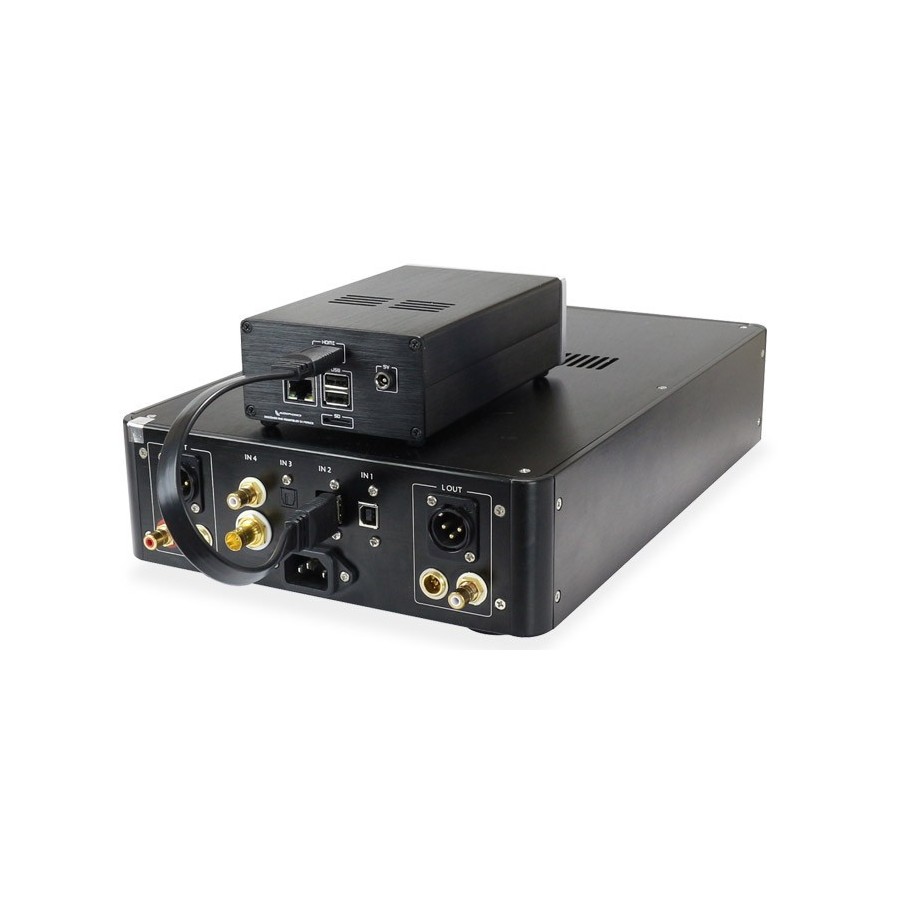

To enjoy your SparkDIGI turntable, simply choose your HDMI I2S LVDS DAC, such as the Audio-GD DAC-19 or NOS-19 Audio-GD. Of course many other models exist. Here is the list of brands by proposing (not exhaustive)

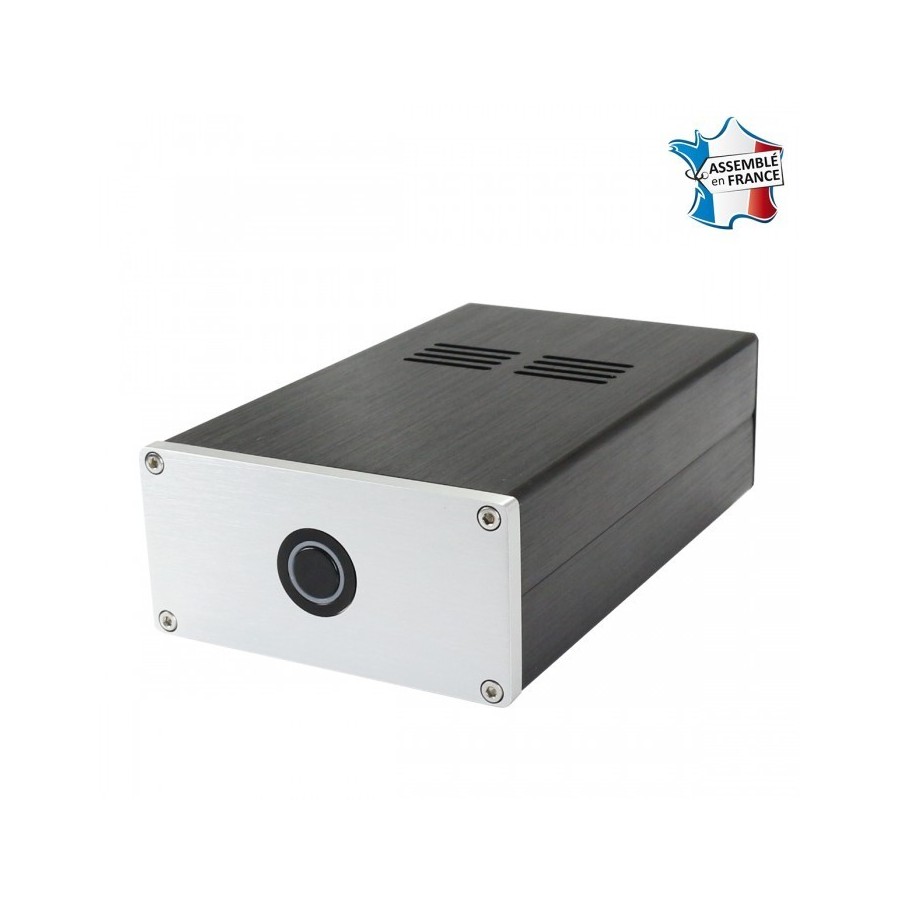

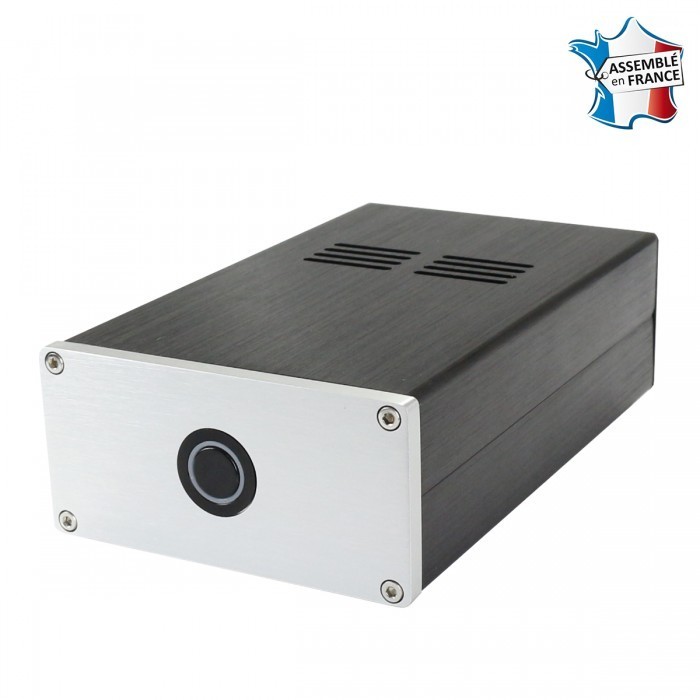

The SparkDIGI, assembled in a 100% aluminium housing, has a sober yet elegant design that will fit seamlessly into your Hifi system. Designed in our workshops in France, this case will protect the system components from shock and dust.

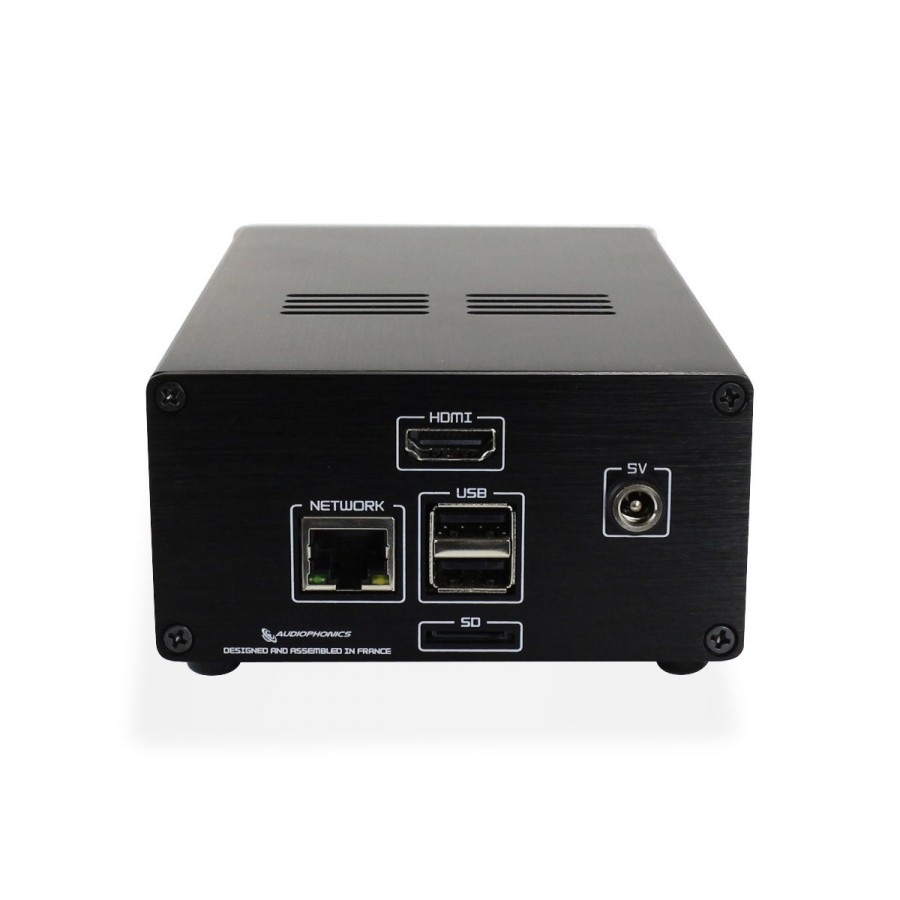

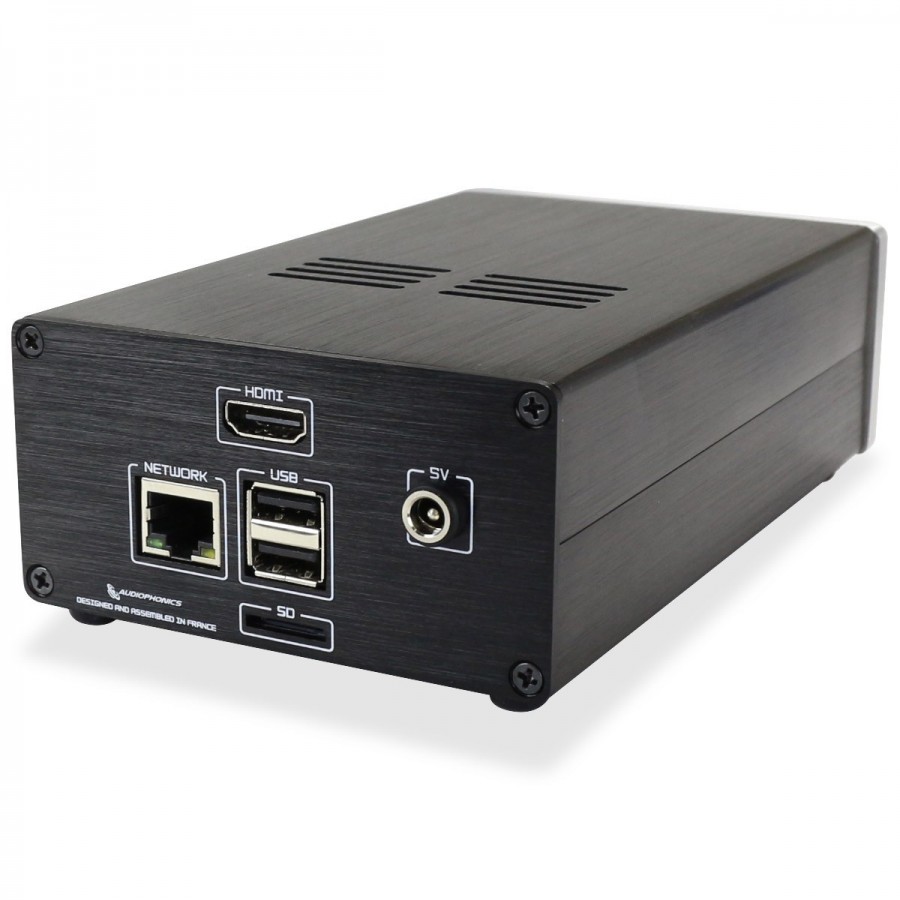

Connectors : Inputs | |
---|---|
USB-A | 2x |
Ethernet RJ45 | 1x |
Micro SD Slot | 1x |
Connectors : Outputs | |
---|---|
HDMI (I2S LVDS) | 1x |
Sparky | |
---|---|
CPU | ARM Cortex A9 Quad Core 1.1GHz |
Memory | 1Go RAM DDR3L |
GPU | PowerVR SGX544 / 500MHz |
General | |
---|---|
Dimensions | 102 x 169 x 58mm |
Weight | 580g |
Power Supply | Jack DC |
Accessories | 5V 3A Power Supply |
If you have any doubts about the compatibility and/or functioning of this product, please do not hesitate to contact us.
Mapping I2S / LVDS |
---|
A synthesis of main IIS on LVDS pinouts mapping is available here. |
