Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.
To place an order, please specify the brand and model of the DAC you want to use in the "Product Customization" tab of this page. Depending on the type of compatibilty DAC, two KALI reclocker exist: 22/24MHZ or 44/48MHZ
In case of doubt about the compatibility and / or operation of this product, do not hesitate to contact us.

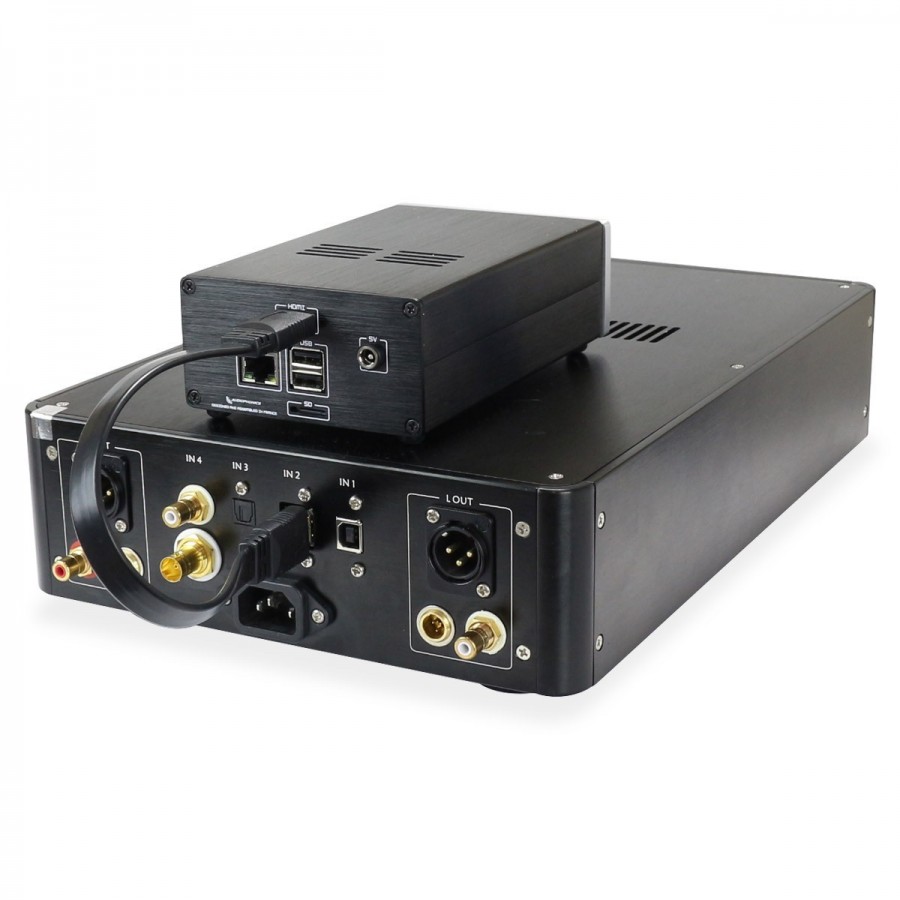

Streamer I2S LVDS HDMI Kali Reclocked
Audiophonics expands its line-up with a brand new network drive, based on a Kali controlled SBC and an I2S LVDS digital interface via HDMI port. A solution that is therefore Audio-GD compatible and certainly audiophile.
With SparkDIGI, you can simply enjoy your entire dematerialized high definition audio library, without limits! Remotely controllable from your Volumio interface, you can access files on your server intuitively and efficiently. So you can enjoy your music from the couch.
Audiophile Quality
This high fidelity DAP is a true audiophile solution tailored to deliver bit-perfect playback and uncompromising audio quality.
Sans limite
Volumio lets you play all your music: MP3, FLAC, WAV, AAC, ALAC, DSD and more. You can also enjoy the UPNP/DLNA, Airplay, Spotify and web radios in the same place.
Open Source
This player also proves to be open source, developed by a talented team and an active community.
Instead of using the usual signals, this SparkDIGI lets you enjoy an extremely clean I2S LVDS signal via a dedicated Audio-GD digital interface. The latter is responsible for symmetrizing the signal. All you have to do is plug the SparkDIGI into your DAC with an HDMI I2S LVDS port to enjoy your music and exceptional sound reproduction.
In addition, an I2S FIFO 44 / 48MHz Allo Kali I2S reclocker allows you to process Sparky's I2S signal thanks to an Ultra Low Jitter clock powered by LDO and an ultra-quiet power supply, providing high accuracy. Your system's performance is increased tenfold: your music "opens", the sound scene expands and you can now see sounds that were previously unheard.
Attention: the HDMI output is only I2S balanced and is therefore not usable for video.
To enjoy your SparkDIGI turntable, simply choose your HDMI I2S LVDS HDMI DAC, like for example the Audio-GD DAC-19 or the Audio-GD NOS-19. Of course many other models exist. Here is the list of brands by proposing (not exhaustive) :
The SparkDigi is also compatible with our Matrix DACs with I2S LVDS Matrix inputs: Matrix X-Sabre Pro.
The SparkDIGI, assembled in a 100% aluminium housing, has a sober yet elegant design that will fit seamlessly into your Hifi system. Designed in our workshops in France, this case will protect the system components from shock and dust.
To place an order, please specify the brand and model of the DAC you want to use in the "Product Customization" tab of this page.
In case of doubt about the compatibility and / or operation of this product, do not hesitate to contact us.
Connectors | |
---|---|
Inputs | 2x USB-A 1x Ethernet RJ45 1x Slot Micro SD |
Output | 1x HDMI (I2S LVDS) |
Sparky | |
---|---|
CPU | ARM Cortex A9 Quad Core 1.1GHz |
Mémory | 1Go RAM DDR3L |
GPU | PowerVR SGX544 / 500MHz |
Kali | |
---|---|
Clock | Multi-frequency with automatic switching |
Voltage regulator | With ultra low noise |
FIFO Circuit | With FPGA |
FIFO Memory | SRAM 4MB |
Global | |
---|---|
Dimensions | 102 x 169 x 58mm |
Weight | 580g |
Power Supply | Jack DC 5.5/2.1mm - 5V 2A |
Accessories | 5V 3A Power Supply |
If you have any doubts about the compatibility and/or functioning of this product, please do not hesitate to contact us.
Mapping I2S / LVDS |
---|
A synthesis of main IIS on LVDS pinouts mapping is available here. |
