DAYTON AUDIO ND105-PR Passive Radiator 51.5Hz Ø10cm
By buying this product you get 1 loyalty point
Viewed products
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.
Passive Radiator 10 pc PR-ND105 Dayton Audio
For compact speakers with deep bass
A simple way to fine tune the bass response frequency of a speaker
A compact passive radiator 10 cm in diameter with aluminum membrane. Solid construction adapted with a frequency response of 51.5 Hz, ideal to emphasize the bass frequencies of your midsize and compact speakers.
Its high excursion 6 mm (12mm crest to crest) gives it good performance despite reduced membrane surface. This allows him to get out deep bass without distorting the dynamics of sound. Whether deepen the bass in a system with several speakers or build a powerful portable system, the so-ND105 PR is an appropriate choice to give a serious blow to boost your building projects / improvement speaker
This passive radiator is part of the ND series Dayton Audio. It inherits the elegant and modern style and quality of manufacture of the range.

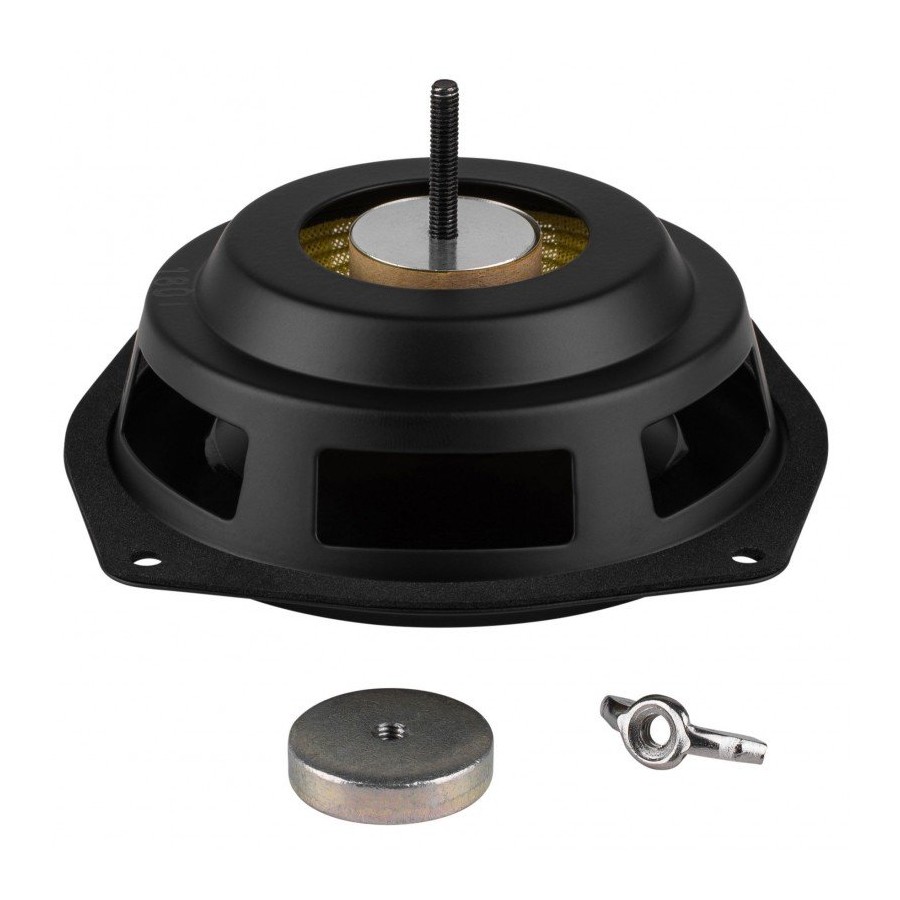

Includes an additional mass
To facilitate assembly and easy access to the best sounds, the PR-ND105 is supplied with an additional weight of 21.8 grams with its attachment screws. A handy tool to easily get a nice balance in low frequencies without having to play on the arrangement of speakers or the dimensions of the case.
This option is useful for accurate sound speakers on limited in size.
| Specifications | |
|---|---|
| Type | Passive radiator |
| Series | ND Dayton Audio |
| Diameter | 10 cm / 4 inches |
| Resonance Frequency | 51.5 Hz |
| Coefficient of mechanical quality (Qms) | 5.93 |
| additional mass included | Yes |
| additional mass Weight | 21.8 g |
| Mass diaphragm (air included) | 13.9 g |
| Compliance mechanical suspension | 0.68 mm / N |
| membrane area | 51.5 cm² |
| linear excursion max | 6 mm |
| mechanical loss (RMS) | 0.76kg / s |
| Cone | Aluminum |
| Side | Rubber |
| Structure | Steel |
| Speaker Power (W RMS) | NC |
| Speaker Type | Passive Radiator |
| Impedance (Ω) | NC |
| Loudspeaker diameter (mm) | 100.0 |
| Diaphragm type | Aluminium |
| Efficiency / Sensitivity (dB) | N/A |
| Max Linear Excursion (Xmax) (mm) | 6.0 |
| Lowest frequency (Hz) | N/A |
| Highest frequency (Hz) | N/A |
