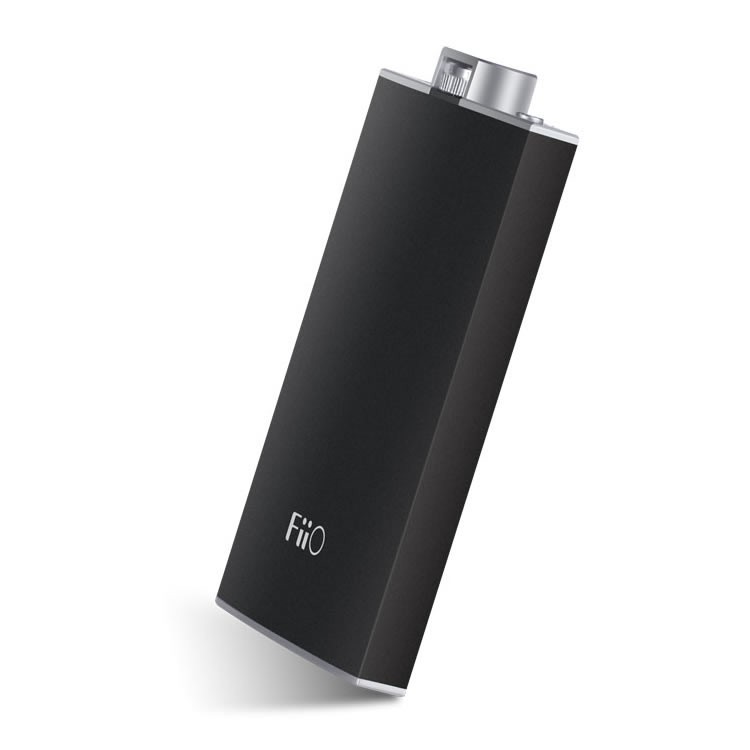

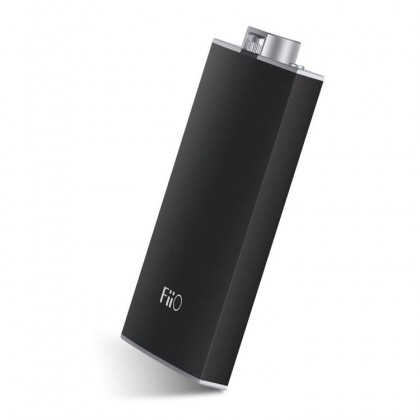

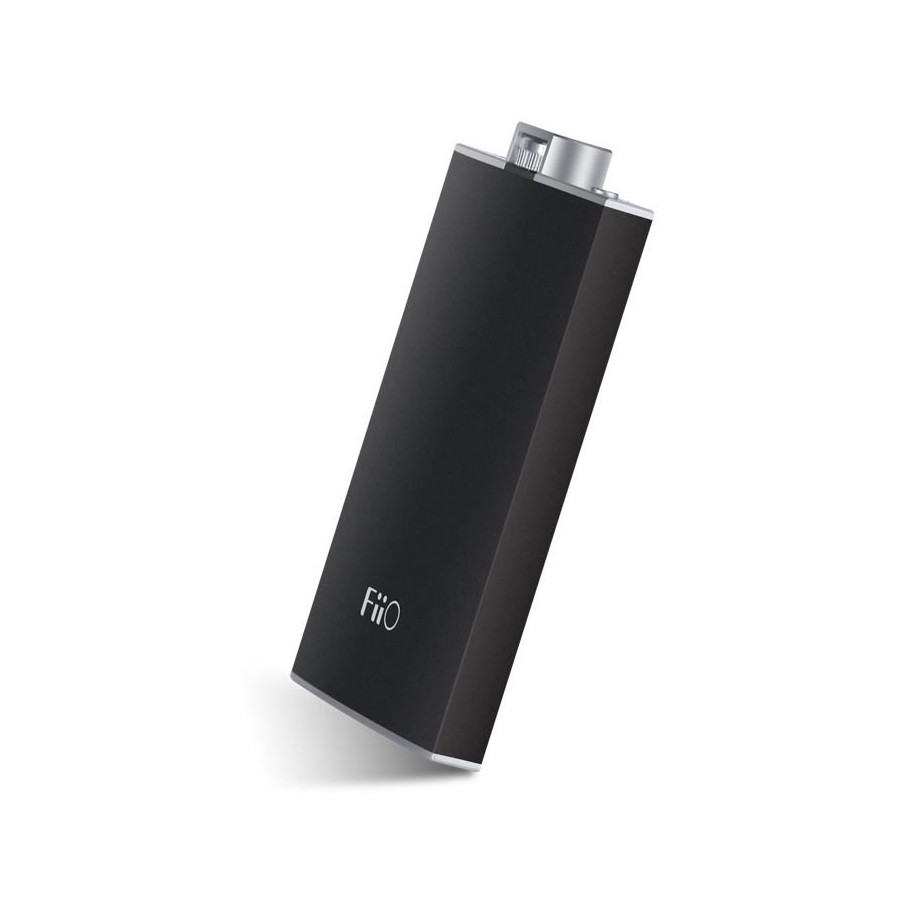

FiiO Q1 DAC Portable USB DAC & Headphone Amplifier PCM5102 24bit / 96kHz

The FiiO Q1 is a portable DAC / Amplifier that stands out for its ergonomics and design as well as its design and electronic architecture.

Equipped with a USB interface that can support PCM audio files up to 24bit 96kHz, the Q1 can also be used as an external computer sound card.

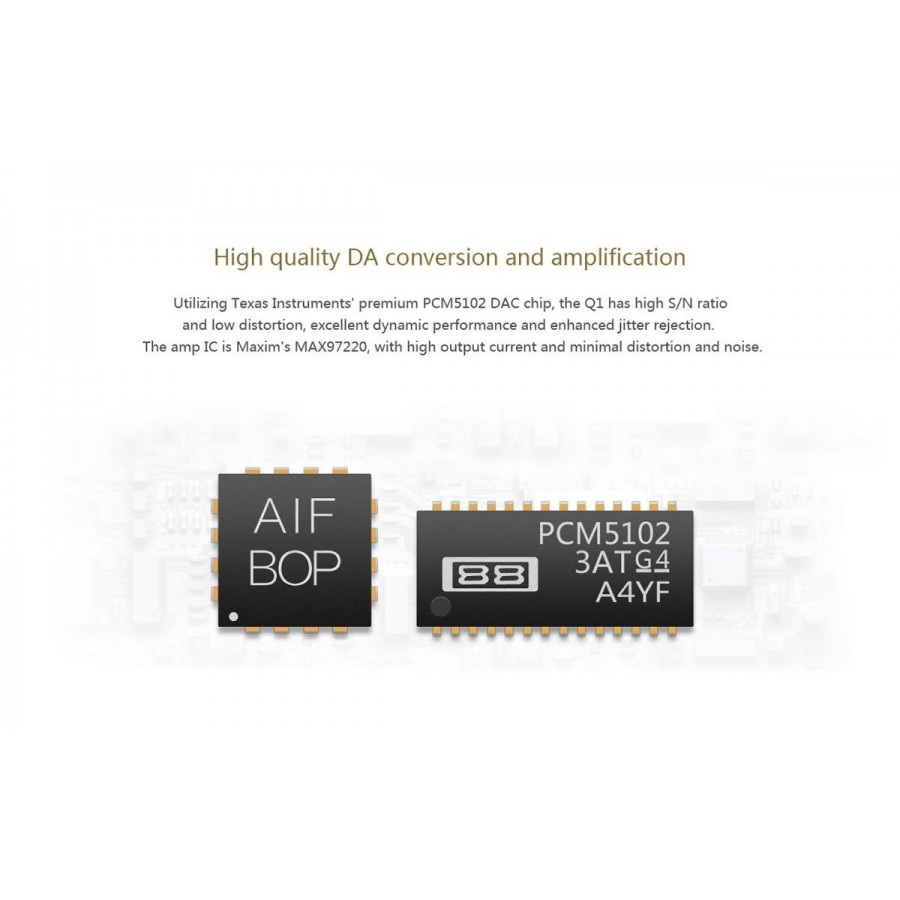

It is equipped with a converter PCM5102 having the peculiarity of having a high signal-to-noise ratio and a low distortion associated with an amplification stage composed of a MAXIM MAX97220 amplifier.
This association presents all the assets of DAC and Amplifiers helmets high-end competitors.

The Micro USB port not only allows you to load and transfer audio, but also to connect it to future FiiO products.

This DAC USB / Headphone Amplifier is compatible with iOS and Android devices.

Characteristics :

• DAC: PCM5102
• Supported PCM audio files up to 24bit 96kHz
• Amplification via MAXIM MAX97220

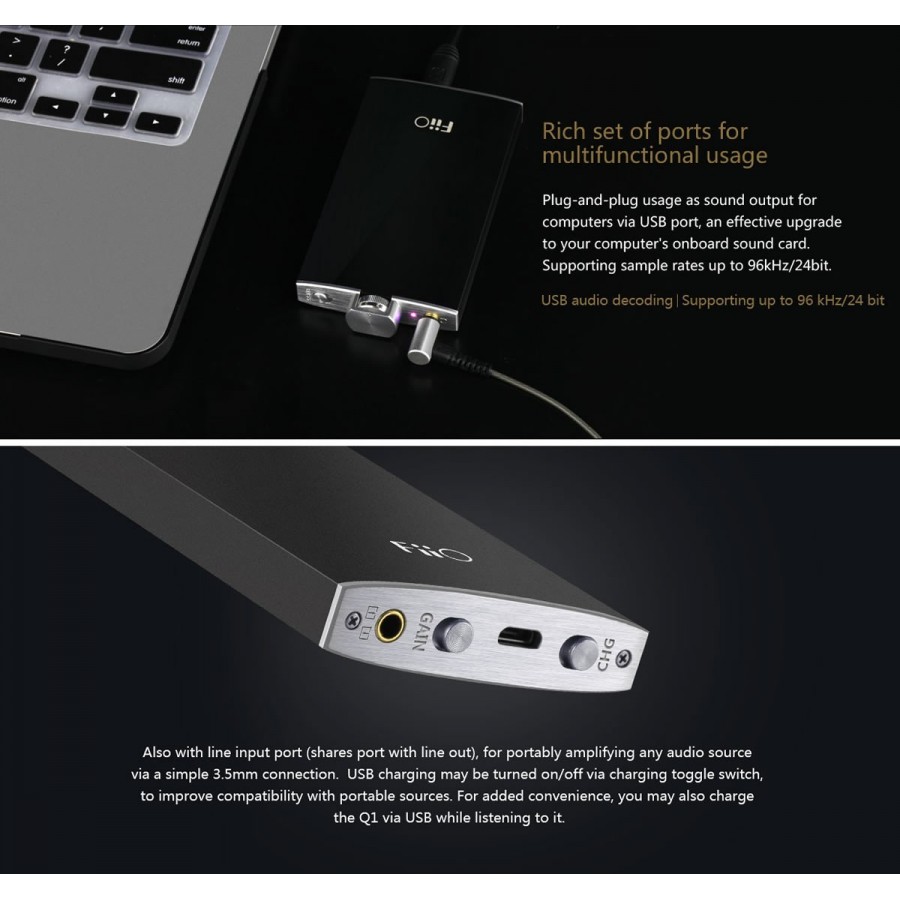

• Inputs: Micro USB, 3.5mm Jack Line
• Outputs: Line, 3.5mm Headphone Jack
• Recommended impedance: 16 - 150 Ohm
• Volume control via TOCOS potentiometer

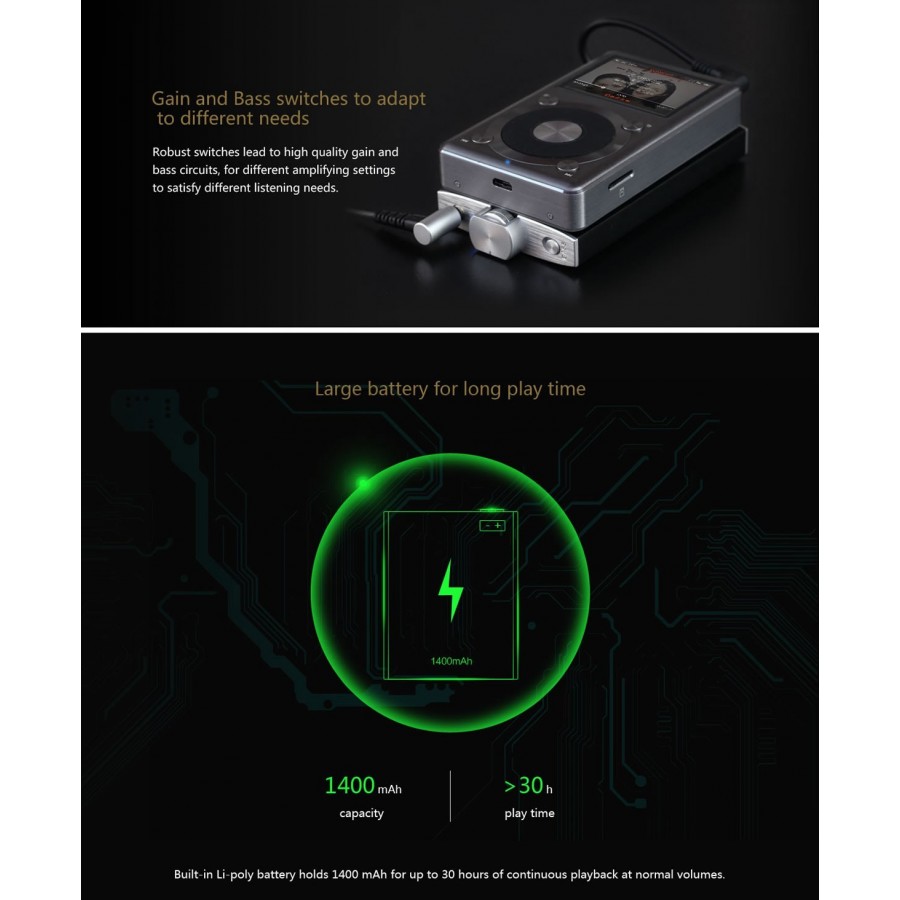

• Bass function (0 / 5dB)
• Output power: 190mW (32 Ohm), 75mW (150 Ohm)
• THD + N: <0.005% at 1kHz
• Input Sensitivity: 4.3V (Gain Low), 1.5V (Gain High)
• Gain: -7dB/ 4.5dB (AUX IN), -3.5dB / 8dB (USB IN)
• Input voltage max. :> 4Vrms
• Output voltage max. : 7.2 Vp-p
• Output current max. :> 75mA
• Output impedance: <0.3 Ohm
• Frequency response: 20Hz - 20kHz
• Signal Noise Ratio:> 107dB
• Power Supply: 5V DC 1A
• Battery Life (1400mA): 30h
• Charging time: 4h
• Chassis Brushed aluminum, black sandblasted

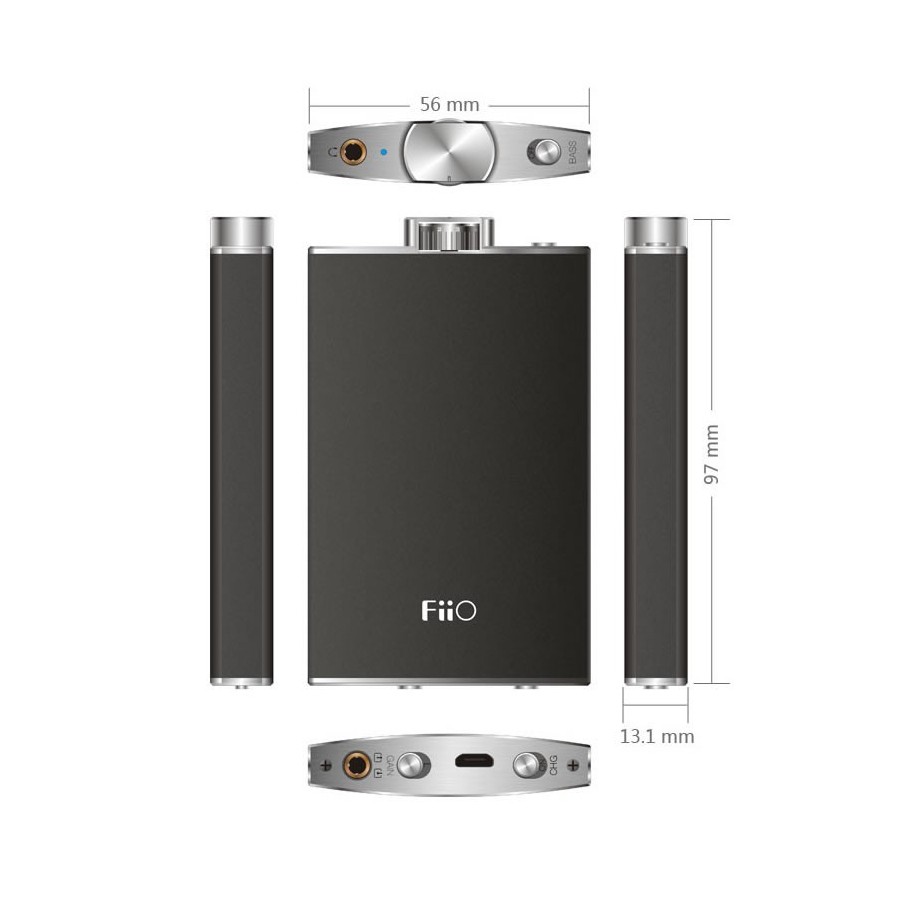

• Dimensions: 97x56x13mm
• Weight: 100g
• 3.5mm 3.5cm Jack-Jack cable, USB-A to micro USB cable and support rubbers provided.
